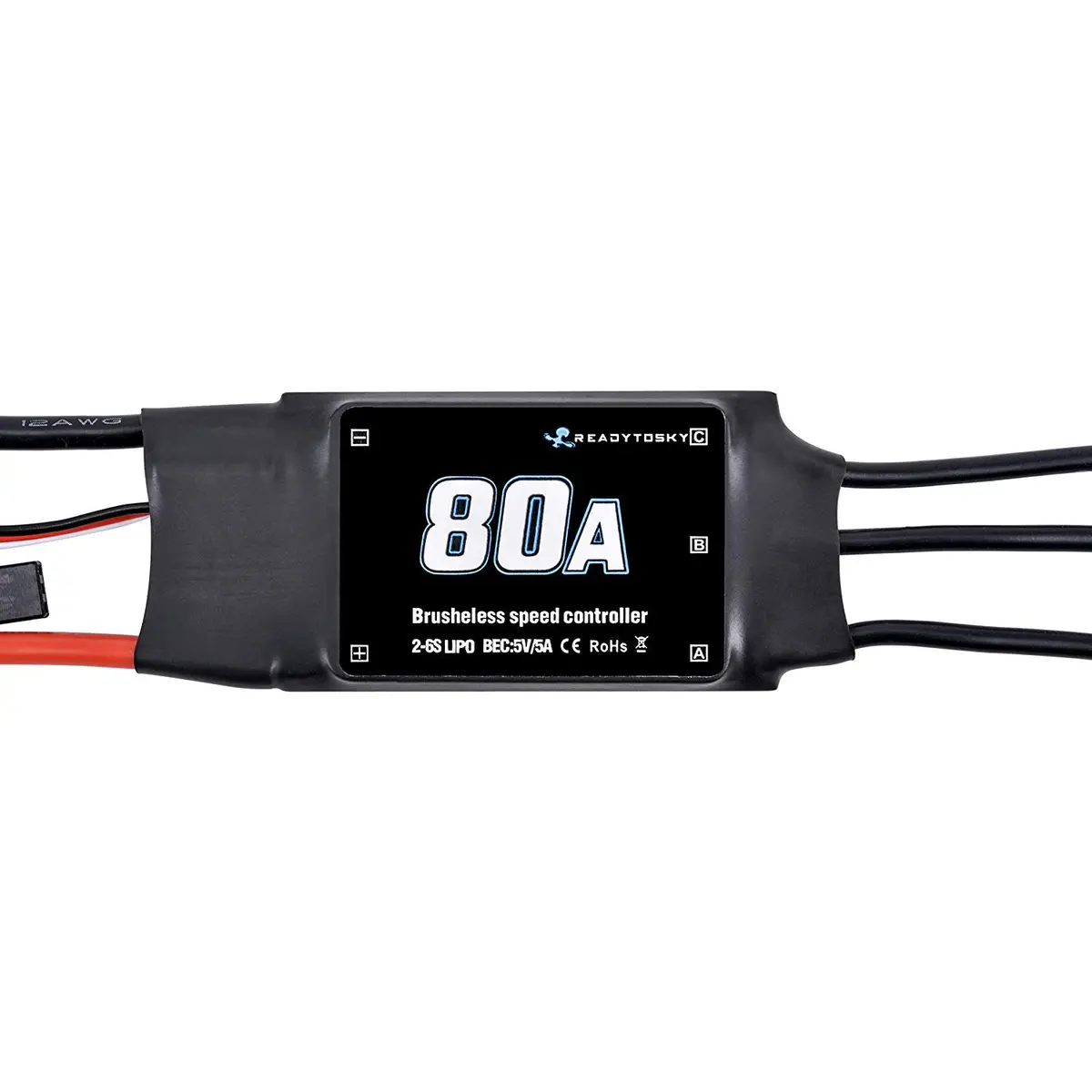

ReadyToSky 80A ESC: 2–6S Electronic Speed Controller for Drones and RC Vehicles

Description

ReadytoSky 80A 2-6S ESC is specifically made for quadcopters and multi-rotors. Which provides faster and better motor speed control giving better flight performance compared to other available ESCs.

ReadytoSky 80A 2-6 ESC comes with a multi-integrated special program, fast throttle response, surpasses all kinds of open-source software. Firmware was optimized specifically integrated circuitously for the disc motor, and it has very good compatibility and this ESC is compatible with 2-6s Lipo Battery.

Due to ultra-low resistance MOSFET, it has a strong flow capacity. With MOSFET special driver integrated circuit, its performance and stability far surpass the driving circuit with discrete components built.

1. Model: Readytosky 80A ESC.
2. Burst Current: 100A.
3. Constant Current: 80 A.
4. BEC: 5A/5V.
5. Suitable Batteries: 2~6S LiPoly.
6. Throttle signal refresh rate (Hz): 50 ~ 432.

Features:

1. Security power function: When the power is turned on, regardless of the throttle stick at any position will not start the motor immediately to prevent personal injury
2. Throttle range calibrated function: to adapt the throttle differences between different strokes, improve the linearity of throttle response
3. programmed project (available throttle stick or card LED parameter settings):
   1. Brake setting: No brake / with brake
   2. Battery Type: Lithium battery / NiMH
   3. Low Voltage Protection Mode: Soft Shutdown / hard off
   4. Low Voltage Protection Threshold: low / medium / high
   5. start mode: Normal / Soft / Super-soft and start
   6. Timing: low / medium / high
   7. Restore factory defaults
4. Comprehensive protection features:
   1. Under-voltage protection: the program set by the user when the battery voltage is below the protection threshold, ESC automatically reduces the output power
   2. Overvoltage Protection: input voltage exceeds the input range are not allowed to start, automatic protection, also issued a hasty “beep” Warning
   3. Overheat protection: built-in temperature detection circuit that automatically reduces the output power ESC temperature is too high
   4. Remote signal loss protection: remote control signal is lost for 1 second to reduce the power, and then have two seconds to turn off without the remote control signal output

Packages Includes:

1 x ReadytoSky 80A 2-6S ESC (Electronic Speed Controller)
