Description
Description:
- RCWL-1670 is a waterproof, transceiver split ultrasonic ranging module. 2cm-400cm ranging range, 3-5 V wide voltage operation, 1.5uA@3.3V / 3.5uA@5V Ultra low standby power consumption.

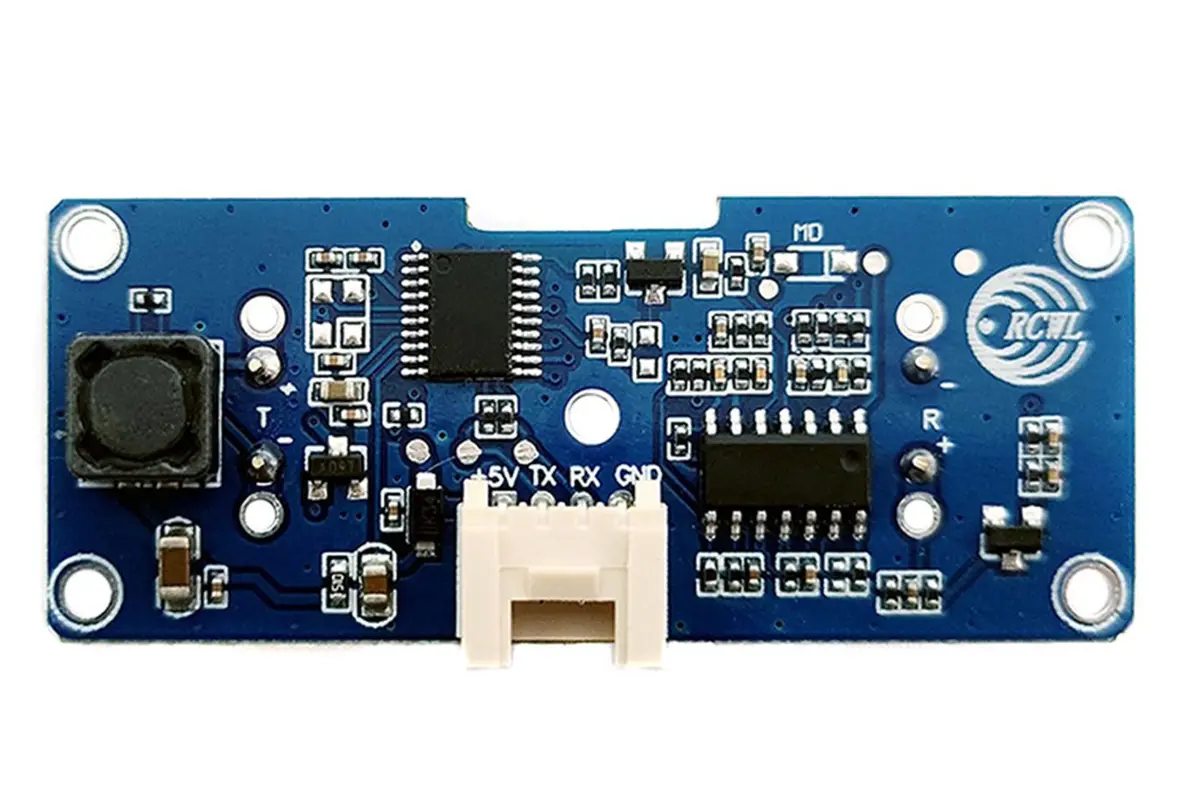

- The module includes a transmitter receiver split waterproof ultrasonic sensor and a control circuit. The external control software is compatible with the HC-SR04 module.
Feature:
- The module has waterproof and dust-proof functions, and is suitable for wet and harsh measurement occasions
- The module has ultra-low standby power consumption, which is suitable for battery applications
- RCWL-1670 is a waterproof, transceiver split ultrasonic ranging module
Parameter:
- Model: RCWL-1670
- Working voltage: 3-5V
- Working current: 6mA
- Standby current: 3.5uA@5V 1.5uA@3.3V
- Blind area: 2cm
- Farthest ranging: 4m
- Measurement cycle: 50mS
- Work Temperature: -25℃~85℃
- Work Humidity: 5%~95%RH
- Size: 57x23x11mm
Application:
outdoor robot obstacle avoidance, liquid level, water level measurement, trash can detection, other ranging applications, etc.
Interface Definition:
- 5V: 3-5V power supply
- TX: ECHO return distance signal
- RX: TRIG trigger signal
- GND: ground
Note:
- This module should not be connected with electricity. If it is necessary to connect with electricity, let the Gnd end of the module connect first;
- If the test surface is not very regular or when testing remote objects, multiple measurements can be used to correct;
- The interval between two tests shall not be less than 50mS.
Package:
1pcs Waterproof 400cm RangeFinder Transceiver Separated Ultrasonic Ranging Module
Package Includes:
1 x Ultrasonic Ranging Sensor | HY-SRF05
