Description

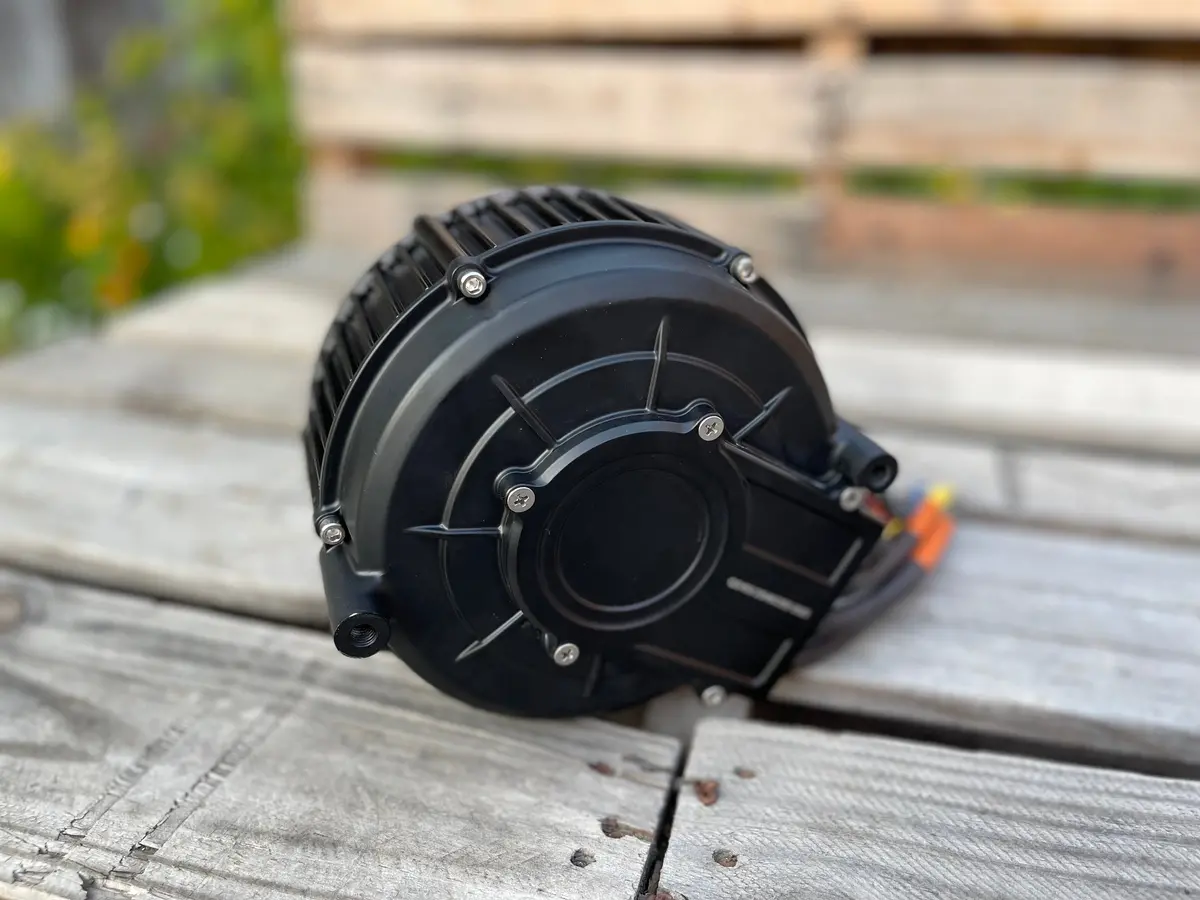

Increase torque, max rpm, durability & thermal capacity over similar motors with the qs165 v2 35h. This HALL SENSOR version of the motor is compatible with any aftermarket controller which utilizes hall sensors.
Key Features
- Imbedded Rotor Magnets (no more broken magnets)
- Higher safe peak RPM
- Thicker Phase Wires & Windings (More efficient)
- Greater Thermal Capacity (less overheating)
- Higher grade magnets over OEM
- Higher Torque per amp
- Replaceable Hall Sensor Board (it’s repairable!)
Motor Specifications
Diameter: 178mm
Length: 130mm (including mounts/not including output shaft)
Rated RPM: 5000
RPM with Flux: 7500+ (unloaded)
Rated Power: 5kW continuous
E&C Findings: 22kW bursts
