Description
BNC Bayonet Neill Concelman connector, (sometimes erroneously called a British Naval Connector or Bayonet Nut Connector,a type of connector used with coaxial cables such as the RG-58 A/U cable used with the 10Base-2 Ethernet system. The basic BNC connector

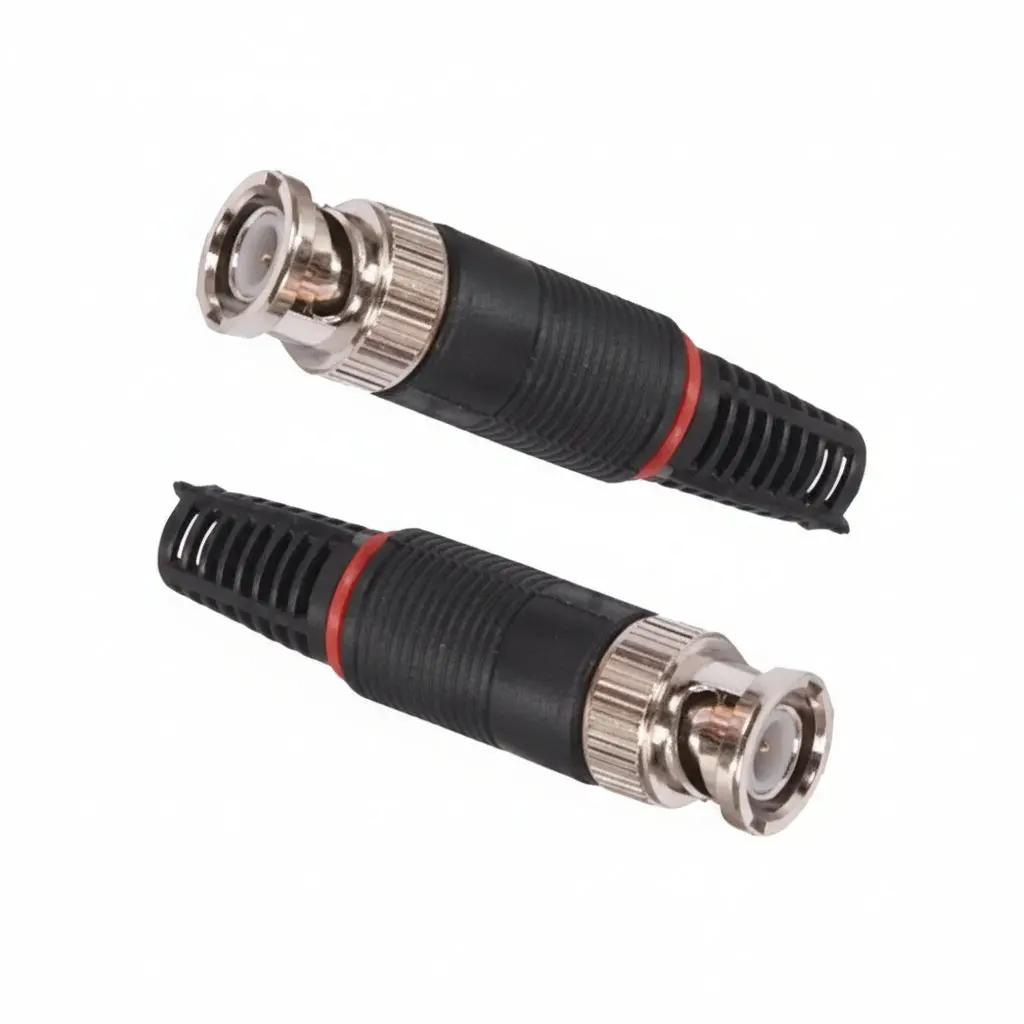

BNC Male Connector for CCTV Camera and DVR, BNC plug connector for audio, video, and networking applications that provides a firm connection. BNC is used to connect a variety of different coaxial cables. BNC connectors are different from many connectors because of their snap-lock superior architecture. The BNCA connectors are ideal for CCTV applications these quick connect accessories are a perfect fit for your Lorex cameras and cables.
Features/Specs:
- Make: Jam
- Pack of : 5 pcs
- Orientation: Straight
- Gender: Male
- Mounting Type: Cable
- Termination Style: Solder Type
- Temperature: Operating range -40C to +85C
- Capacity: 75 Ohm/50 Ohm options
- Material: Brass body with nickel plating, gold-plated contact
- Voltage Rating: 500 V RMS max
- Jacket Material: Depends on cable, connector itself is nickel/brass
- Cable Type: Coaxial (RG58, RG59, etc.)
- Color
- Nickel-plated
- Outer Diameter
- Standard BNC connector: approx. 14 mm
- Insulation: Dielectric (Teflon or PE depending on application)
- Contact Resistance: Center: 1.5 m, Outer: 1.0 m
- Standards Compliance: IEC 60169-8
- Durability: 500 mating cycles
- Insulation Resistance: >1000 M (@ 500 V DC)
- Impedance: 50 Ohm or 75 Ohm
