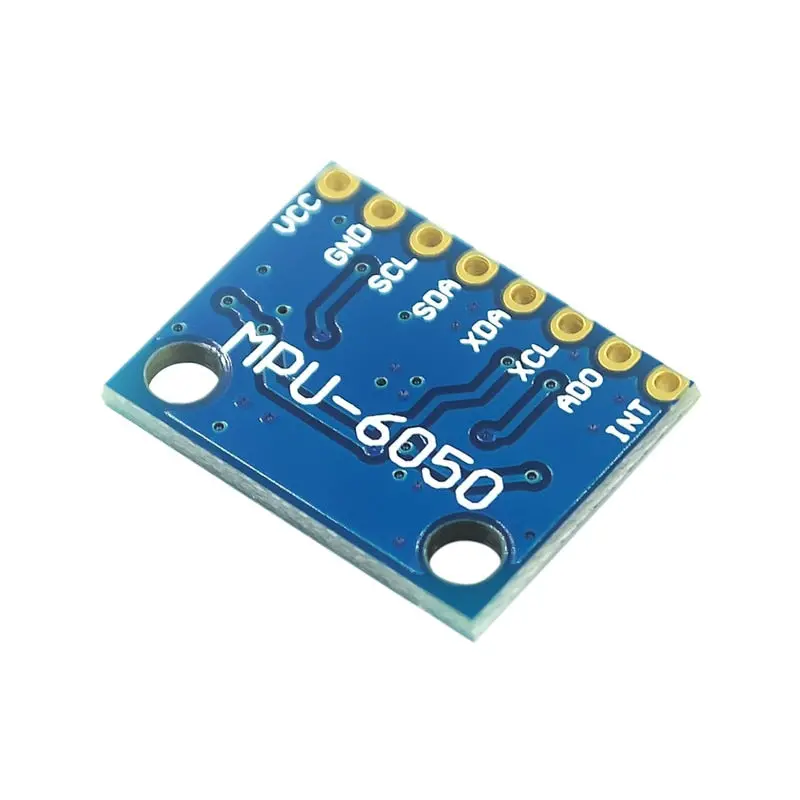

Original MPU-6050 6-Axis Motion Sensor – Integrated 3-Axis Gyroscope and 3-Axis Accelerometer

Description

1. Chip built-in 16bit AD converter, 16-bit data output
2. Driver Chip: MPU6050
3. Operating Voltage: 3-5V DC
4. Communication: I2C/IIC Protocol
5. Gyro Range: ± 250, 500, 1000, 2000 °/s
6. Accelerometer Range: ± 2 ± 4 ± 8 ± 16 g

Features :

1. Chip built-in 16bit AD converter, 16-bit data output.
2. I2C Digital-output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format.
3. Selectable Solder Jumpers on CLK, FSYNC, and AD0.
4. Digital Motion Processing™ (DMP™) engine offloads complex MotionFusion, sensor timing synchronization, and gesture detection.
5. Embedded algorithms for run-time bias and compass calibration. No user intervention is required.
6. Digital-output temperature sensor.

Package Includes:

1 x Original MPU6050 6 Axis -Accelerometer and Gyroscope Sensor

1 x 1*8 Burg connector Pins(Right angle).

1x 1*8 Burg connector Pins(Straight).
