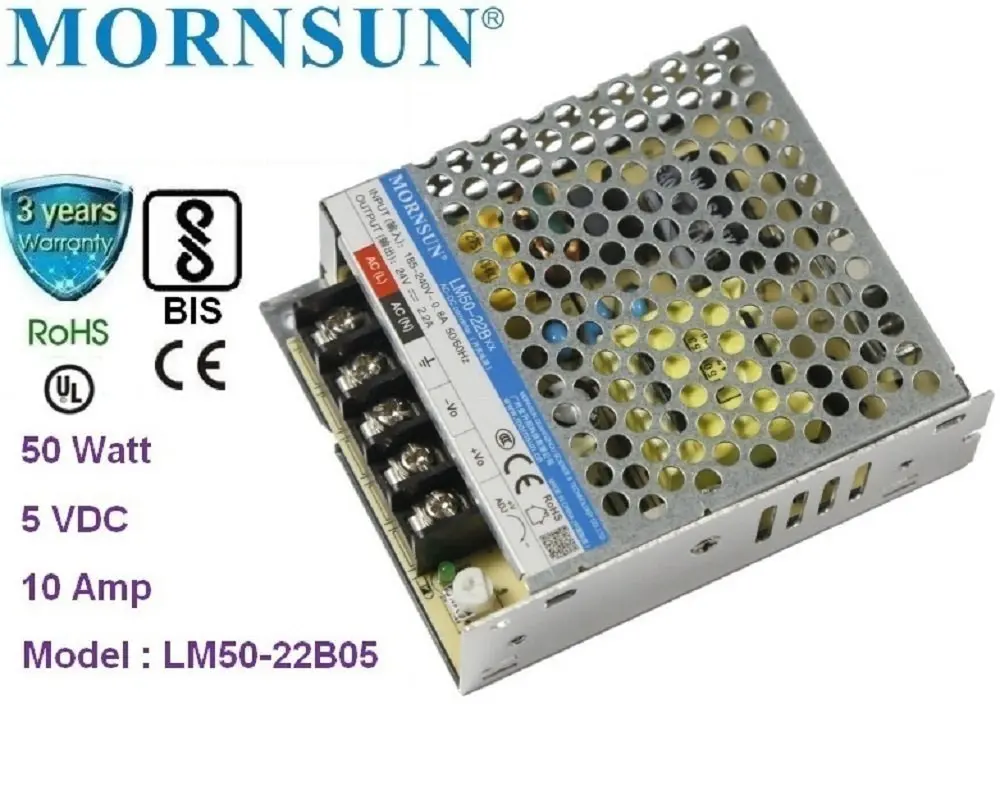

Mornsun LM50-22B05 AC/DC Switching Power Supply – 5V, 10A, 50W, Single Output, Industrial Grade (Hardwired)

Description

• Manufacturer Product No: LM50-22B05
• Manufacturer: Mornsun
• Input Voltage Range: 100V ~ 277VAC
• Output Voltage: 5V
• Output Current: 10A

Features:

• 85 – 305VAC or 100 – 430VDC input voltage
• Accepts AC or DC input (dual-use of sameterminal)
• Operating ambient temperature range: -30℃to+70℃
• Up to 88% efficiency
• No-load power consumption < 0.5W
• High I/O isolation test voltage up to 4000VAC
• Output short circuit, over-current, over-voltageprotection
• Over-voltage class Ⅲ(designed to meet EN61558)
• Operating altitude up to 5000m

Features/Specs:

• Manufacturer Product No:LM50-23B05R2
• Manufacturer: Mornsun America, LLC
• Series: LM50-22B05
• Type: Linear Regulator Replacement
• Number of Outputs: 1
• Input Voltage Range: 10VAC ~ 277VAC
• Output Voltage: 5V
• Output Current: 10A
• Power (Watts): 50 W
• Operating Temperature: -30°C ~ 70°C
• Efficiency: 88%
• Size / Dimension
  • Length: 98 mm
  • Width: 82 mm
  • Height: 30 mm

Applications:

• Digital Circuit
• Automation
• Power Supply

Package Includes:

• 1 x Mornsun LM50-23B05 – 5V 10A 50W SMPS AC to DC Switching Single Output Power Supply

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
