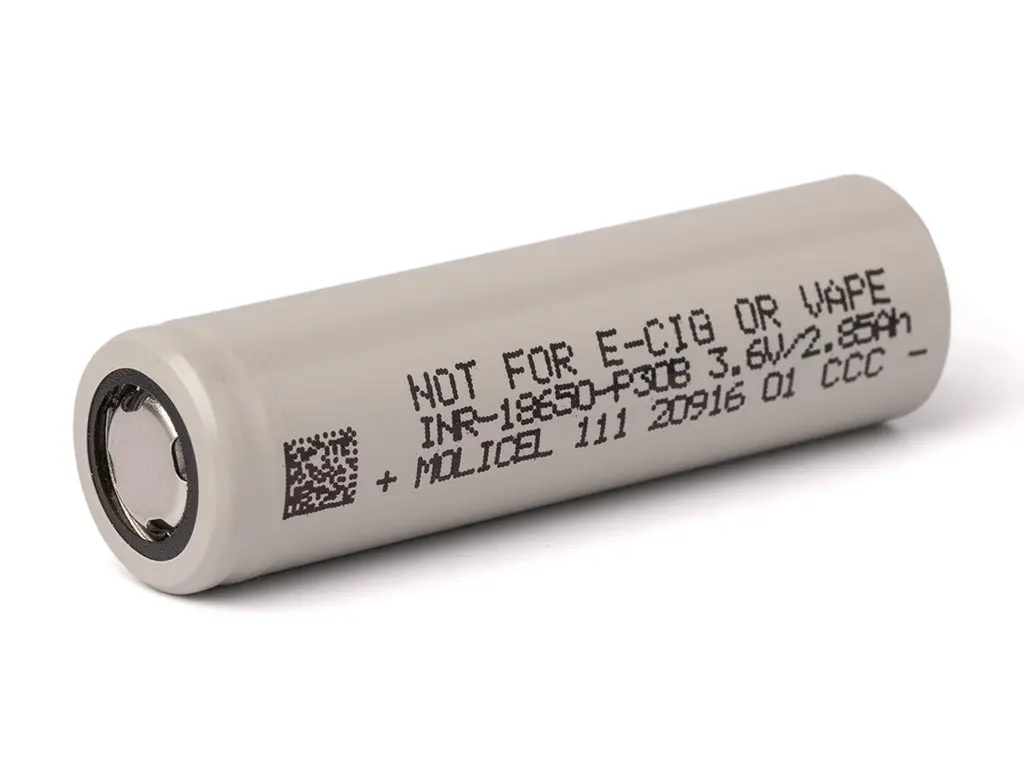

Molicel INR18650-P30B Rechargeable Battery – 3.6 V, 3000 mAh, 12C Discharge Rate

Description

• Manufacturer: Molicel
• Model: INR-18650-P30B (Low impedance)
• Size: 18650
• Series: Power Cell
• Form: Cylindrical
• Positive Terminal: Flat Top
• Nominal Voltage: 3.6 V
• Typical Capacity: 3 Ah
• Charge Current: 3 A
• Discharge Current: 36 A
• Energy Density (Volumetric): 631 Wh/L
• Energy Density (Gravimetric): 234 Wh/kg
• Nominal Capacity: 3000mAh
• Max. Voltage (V): 4.2
• Discharge cut-off voltage(V): 2.5
• Diameter (Max): 18.6 mm
• Height (Max): 65.2 mm
• Weight: 47gm

INR-18650-P30B is the market-leading ultra-high power cells with best power-to-energy ratio ever in 18650 format. It features 3.0Ah for 100W discharge and 3C fast charge power.

Continuing the success of the 21700 low-impedance power cell INR-21700-P45B, the first low-impedance version of this new generation 18650 power cell offers several noteworthy improvements as a low impedance version over its predecessor, the P28A.

The full-range fast charging rate has been significantly increased from 2C to 3C with both high-speed charging and high-power output. P30B is capable of maximum continuous cycling at high current up to 36A. Boasts a significant 60% reduction in DCR compared to P28A, which contributes to improved overall efficiency and performance. The high-power discharge capability has increased from 80W to 100W, an increase of 20%.
After 500 cycles of 100W discharge, it can retain incredibly up to 75% of initial run time.

This power cell is designed to cater to the premium segment in various applications, holding great potential for motorsports, micro-mobility (e-skateboards, e-surfboards), heavy lift drones, and more.

Datasheet:

Features:

1. Suitable for a wide range of electronic devices and portable applications.
2. High energy density for an extended runtime and consistent power delivery.
3. Built-in protection mechanisms against overcharging, over-discharging, and short circuits.
4. Molicel is known for producing reliable and high-quality batteries.
5. Can handle high-demand scenarios due to the 10C discharge rate.
6. Convenient size for easy integration into different devices.
7. Designed for repeated charging cycles, providing lasting power over time.
8. Molicel is a reputable brand in the battery industry, known for its commitment to safety and performance standards.

Documents:

• Datasheet
• UL- Certificate of Compliance
• UN- Lithium-ion Battery Test Report
• IEC- CB TEST CERTIFICATE
• SDS – Safety Data Sheet

Package Includes:

1 x Molicel INR-18650-P30B Li-ion Battery
