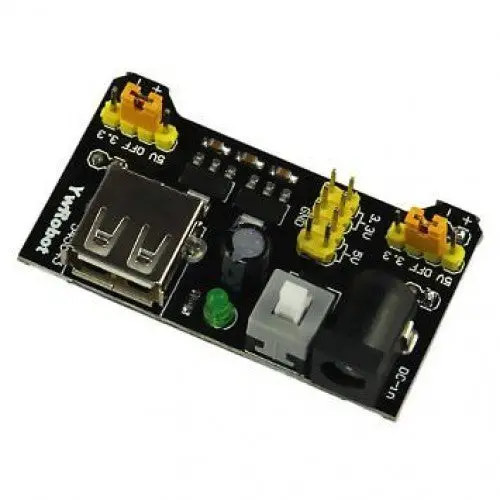

MB102 Breadboard Power Supply Module – Dual 3.3V/5V Output for Prototyping

Description

• Breadboard power supply module, compatible with 5V, 3.3V.

• Apply to MB102 breadboard

• Input voltage: 6.5-12 V (DC) or USB power supply

• Output voltage: 3.3V/5V can switch over

• Maximum output current: <700 ma

• Fluctuation two road independent control can switch over to 0 V, 3.3 V, 5 V

• On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.

• 1 x MB102 Breadboard Power Supply Module

This is a power regulation module to provide 5V or 3V3 power supply to your breadboard project. This power supply board is designed to plug into a Breadboard panel with 2 power Distribution strips and readily connect and start testing your project. The module can be powered by a USB port or an external power supply 7-12V. The module has two independent power lines, which can be set to output voltage of 5V or 3.3V, or completely remove power from the line. The module has ON / OFF switch to turn on and off module. It comes with reverse polarity and short circuit protections, which greatly helps during building and testing circuits on the breadboard.

Features:-

Designed to fit the standard MB102 bread board
Power Supply comes with On/Off Switch
Green LED power indication
Built-in protection against short-circuit through power limiting circuitry
compatible with 5V, 3.3V
Input Voltage :6.5-12V (DC) or USB power
Output voltage: 3.3V, 5V switchable
Maximum Output Current: <700ma
Two way independent control
Output Voltage Can be switched to 0V, 3.3V, 5V
On-board Two sets of 3.3V, 5V DC output pins, lets you connect directly to external circuits and to multiple breadboards.
Dimension: 53 * 32 * 23 mm
