Description

Features:

• Multifunctional Measurement: Measures AC/DC voltage, DC current, and resistance.
• Max Display: 2000 counts for clear readings.
• Safety Certified: Equipped with CAT III 600V safety ratings for secure operation.

• Data Hold: Allows users to freeze the displayed measurement, making it easier to record and analyze results.

• Backlit Display: Ensures readability in low-light conditions.
• Additional Features: Includes hFE transistor, work light, diode test, continuity buzzer, and low battery display.

Benefits:

• Versatile Applications: Suitable for a wide range of electrical testing needs, from professional to DIY projects.
• Enhanced Safety: Features such as CAT II 600V rating ensure safe operation.
• User-Friendly Interface: Simple operation with a clear display and intuitive controls, making it accessible for all users.
• Durability: Built to last in demanding environments, ensuring long-lasting performance and reliability.

Why Choose MASTECH MAS830L?

The MASTECH MAS830L stands out for its practical design, reliability, and essential features. Whether you’re an electrician, engineer, technician, or DIY enthusiast, this digital multimeter provides the tools you need to accomplish your electrical testing tasks efficiently and safely. Trust in MASTECH’s commitment to quality and innovation to support your electrical testing needs.

Features:

1. Pocket Size and 2000 counts LCD Display
2. Tests AC/DC Voltage, DC Current and Resistance
3. Transistor Check, Diode and Continuity Test
4. Display Back Light
5. Data Hold
6. Audible continuity
7. Transistor HFE test
8. Low battery indication
9. Rubber hostler for good grip.

Specifications:

• DC Voltage:
  • 200mV to 600V
• AC Voltage:
  • 200V to 600V
• DC Current:
  • 200μA to 10A
• Resistance:
  • 200Ω to 2MΩ

Specifications	Range	Resolution	Accuracy
DC Voltage	200mV/2V/20V/200V 600V	0.1mV/1mV/10mV/0.1V 1V	±(0.5%+3) ±(0.8%+5)
AC Voltage	200V/600V	0.1V/1V	±(1.2%+10)
DC Current	200μA/2mA 20mA 200mA 10A	0.1μA/1μA 10μA 0.1mA 10mA	±(1.0%+3) ±(1.0%+5) ±(1.5%+5) ±(3.0%+10)
Resistance	200Ω 2kΩ/20kΩ/200kΩ 2MΩ	0.1Ω 1Ω/10Ω/0.1kΩ 1kΩ	±(0.8%+5) ±(0.8%+2) ±(1.0%+5)

• DC Voltage up to 600V (In 5 Ranges)
• AC Voltage up to 600V (In 2 Ranges)
• DC Current up to 10A (In 5 Ranges)
• Resistance up to 2 M.OHMS (In 5 Ranges)

APPLICABILITY

• In an industrial environment
• For measuring electrical installations

ACCESSORIES INCLUDED

• Test Leads
• Battery and User’s manual

Working Specs:

Package Includes :

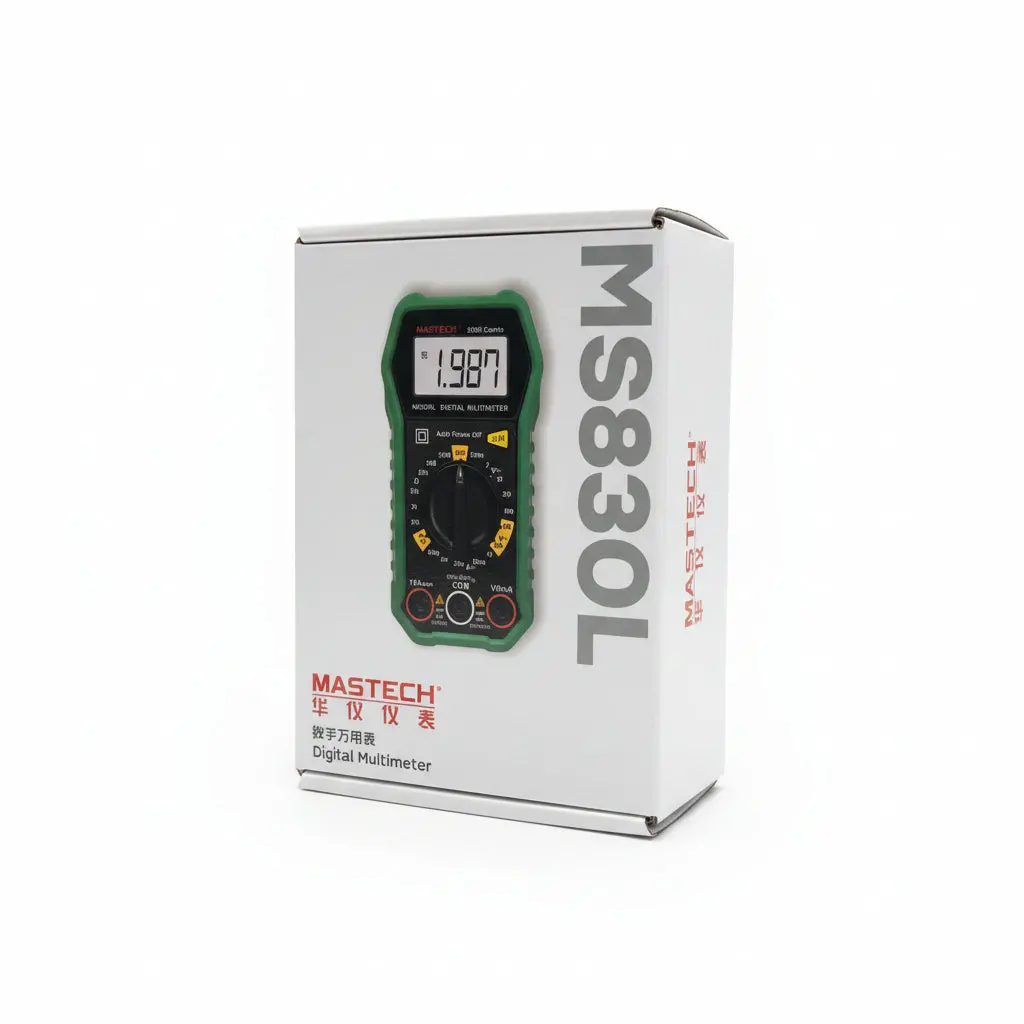

1 x Mastech MAS830L Digital Multimeter – Multimeter with Probes
