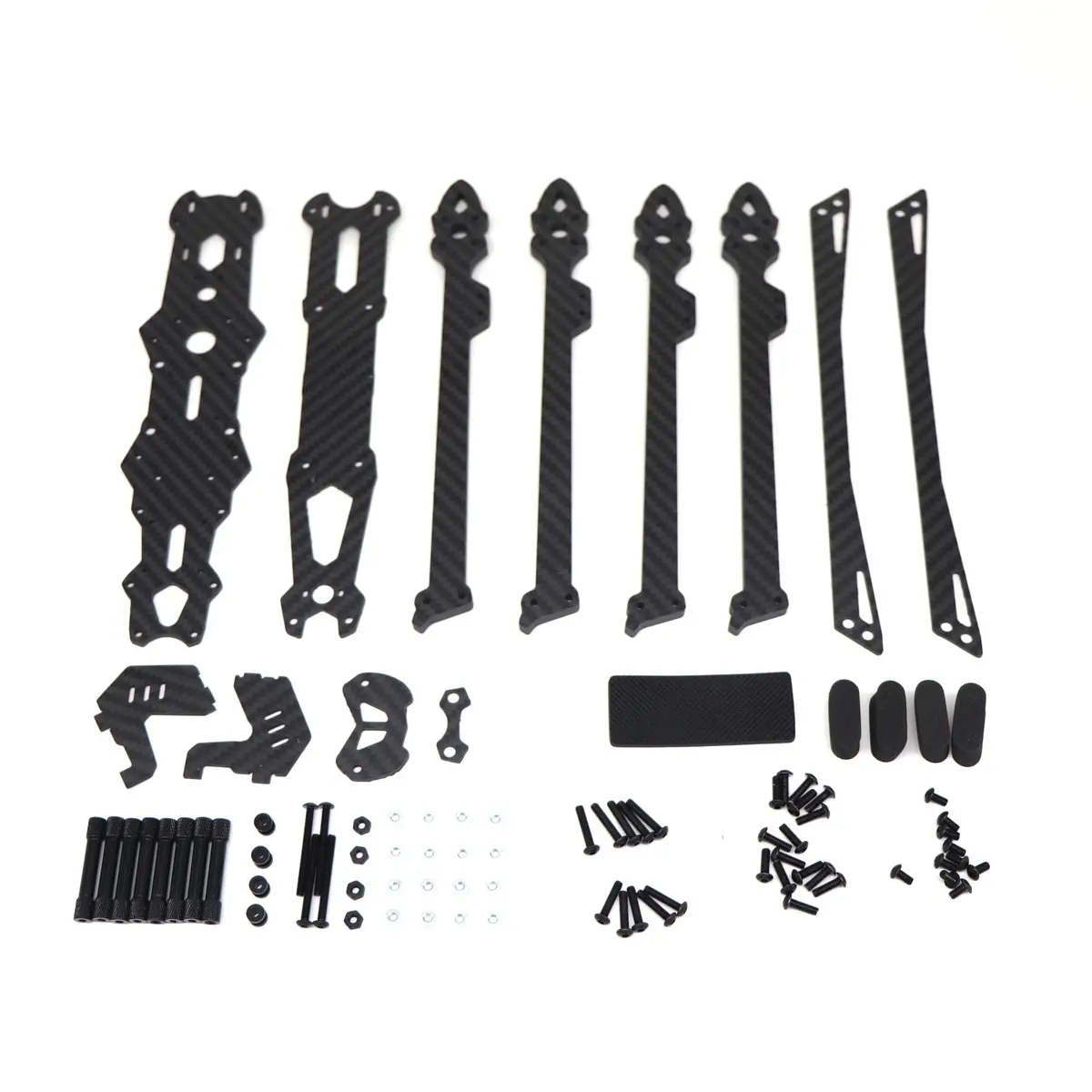

Mark4 V2 Carbon Fiber Quadcopter Frame – 10-inch (427mm) Freestyle & Racing Build

Description

1. Model: MARK4
2. Wheelbase: 450mm
3. Material: Full Carbon Fiber
4. Arm Thickness: 5 mm
5. Weight: 155 gm
6. Top Plate    2.5mm Carbon Fiber
7. Bottom Plate    2.5mm Carbon Fiber
8. Stack Mounting    30.5×30.5mm (M3) Front & Rear
9. VTX Mounting    20x20mm (M3) and 30.5×30.5mm (M3)
10. Camera Compatibility    Micro/Standard (19mm/22mm)
11. Max Propeller Size    10-Inch
12. Motor Mounting Pattern    16x16mm / 19x19mm

Features :

1. Made of Carbon Fiber, lightweight, but very strong. Designed for long-range fpv but is also great for drones.
2. Easy to Assemble: Replaceable arm for easy maintenance, suitable for both beginners and senior players.
3. Drone Frame has a stylish appearance and stands out from other frames on the market.
4. Quad Frame is suitable for both beginners and experienced users, achieving a balance between performance and sturdiness.
5. The 2.5mm frame arm thickness design, makes the more flexible and stable.

Mark4 10″ V2 is a carbon frame suitable for building large 10″ long-range drones. The frame has a diagonal motor spacing of 427mm and massive arms made of 7.5mm thick carbon, which are interconnected for added frame rigidity. The frame is designed for Micro(19mm) size cameras. The camera is mounted in carbon sidewalls to protect it. The frame can accommodate stacks with mounting holes 30,5×30,5mm and 20x20mm.

The rear of the frame then has space to locate a video transmitter. For the video transmitter, there are mounting holes with spacing of 30,5×30,5mm and 20x20mm. The motors can be used with both 16mm and 19mm M3 holes. The frame is designed for use with analog video transmission. However, more experienced drone builders can get digital video transmitters into it without much difficulty.
