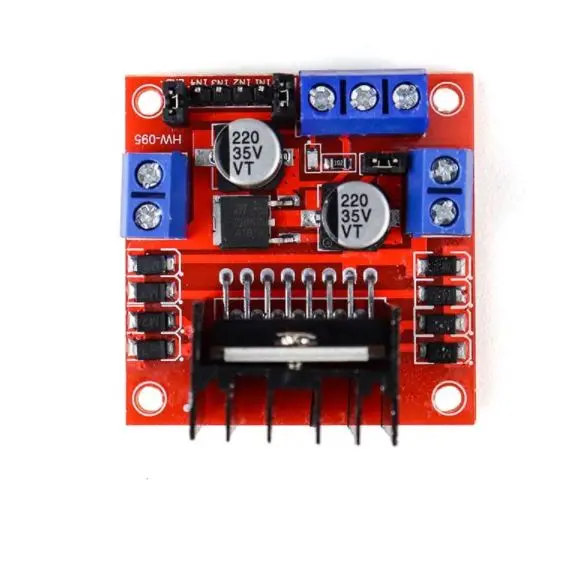

L298N Dual H-Bridge Motor Driver Module – 2A Per Channel

Description

Features:

• Current Sense for each motor.
• Heatsink for better performance.
• Power-On LED indicator.
• Double H bridge Drive Chip: L298N.
• Operating Voltage(VDC): 5~35
• Peak Current (A): 2
• Continuous Current (A): 0-36mA
• No. of Channels: 2
• Over-Current Protection (A): Yes
• Thermal Protection: Yes

L298N 2A Based Motor Driver is a high power motor driver perfect for driving DC Motors and Stepper Motors

It uses the popular L298 motor driver IC and has an onboard 5V regulator which it can supply to an external circuit. It can control up to 4 DC motors, or 2 DC motors with directional and speed control.

This motor driver is perfect for robotics and mechatronics projects and perfect for controlling motors from microcontrollers, switches, relays, etc. Perfect for driving DC and Stepper motors for micro mouse, line following robots, robot arms, etc.

Usage:

H-bridges are typically used in controlling motors speed and direction but can be used for other projects such as driving the brightness of certain lighting projects such as high powered LED arrays.

Features:

• Maximum motor supply current: 2A per motor.

• Current Sense for each motor.

• Heatsink for better performance.

• Power-On LED indicator.

• Double H bridge Drive Chip: L298N.
