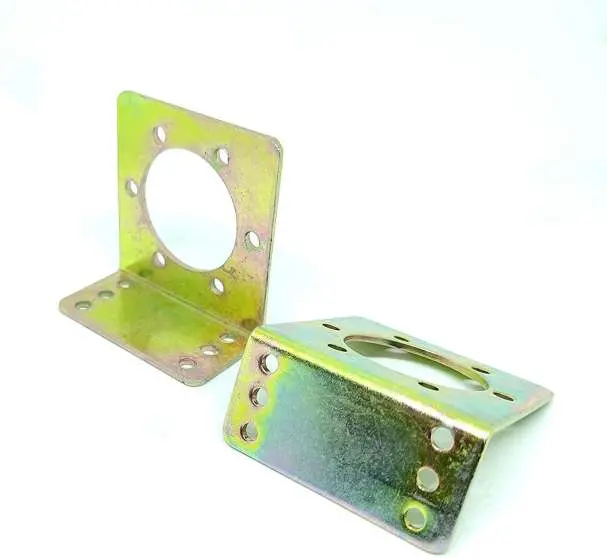

L-Clamp Mounting Bracket for Johnson DC Geared Motors with Side Shafts

Description

Best suitable for Side Shaft High Torque Motor Mounting

Mounting bracket / L Clamp for Side shaft DC Motors – This mounting bracket/clamp is ideal for placing or fixing side shaft High torque DC motors.

12 hole of 3mm dia are provided along the circumference of mounting hole for fixing motor.

Specifications :

Size:

• Motor mounting side : Height – 40mm , Width – 37mm.
• Bracket mounting side : Height – 21mm , Width – 37mm.
• Motor mounting Hole diameter : 26mm
• Base mounting hole : Six holes of 3mm diameter
• Material : MS steel (2mm thickness)
