Description
- Metal case for maximum heat dissipation
- Low forward voltage drop
- High-temperature soldering capacity
- Universal 4 way terminal: snap-on, wrap-around, solder, and PCB mounting
Product Details

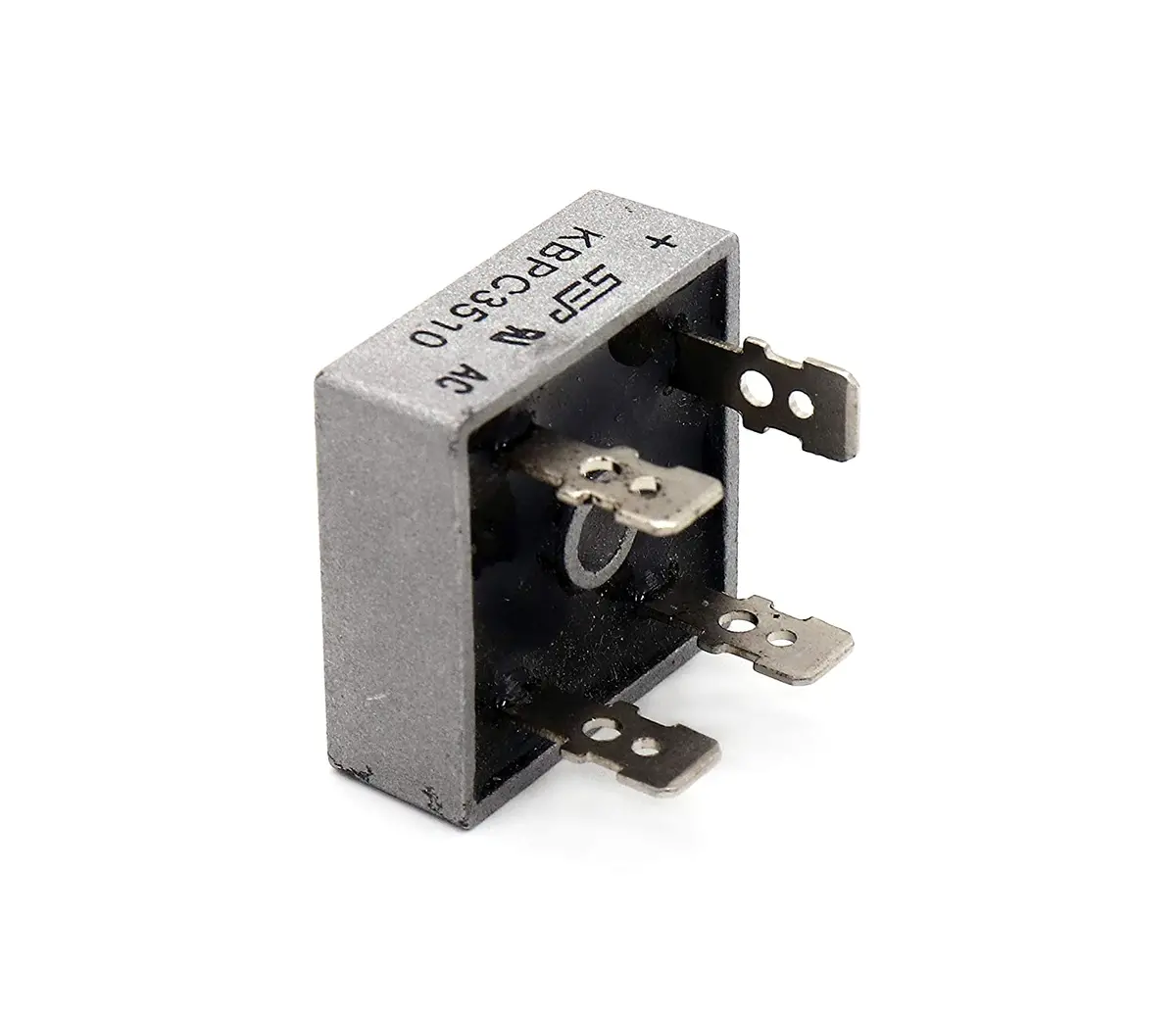

- Product: KBPC3510
- Number of pins: 4
- Mounting: snap-on , wrap-around, solder, and PCB mounting
- Case: Metal
Specification
- Maximum peak recurrent reverse voltage: 1000V
- Maximum RMS bridge input voltage: 700V
- Maximum DC blocking voltage: 1000V
- Maximum forward rectified output current: 35V
- Peak forward surge current 8.3 ms half sine-wave superimposed on rated load: 400A
- Maximum forward voltage drop: 1.1V (per element at 17.5A DC)
- Maximum DC reverse current at rated DC blocking voltage per element: 10µA
- Rating for fusing (I2T, t<8.3ms): 664 A2sec
- Operating temperature: -55℃ to 150℃
