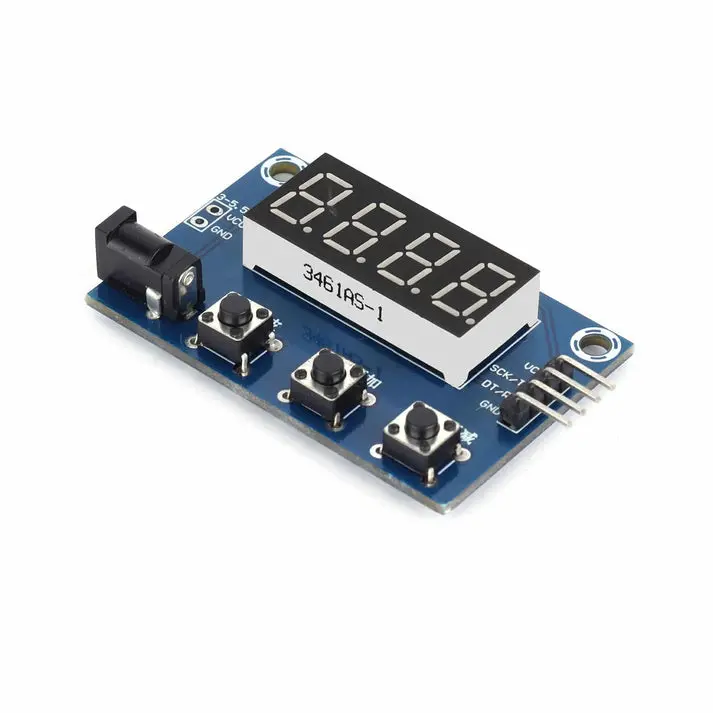

HX711 Load Cell Amplifier Module with Digital Display for Electronic Scales

Description

HX711 Digital Display Weighing Sensor Module is an integrated module of the pressure sensor test board. The module is connected to the pressure sensor first and then powered on for use. After connecting with the pressure sensor for the first time, calibration is required. The HX711 Digital Display Weighing Sensor has functions such as peeling and calibration. The parameters can be saved after the power is off, and there is no need to calibrate again in the future.

Specifications:

• Output Sensitivity: 1.0 ± 0.1 mV / V.
• Maximum Weight: 9999g
• Product Name: HX711 Pressure Sensor Module
• Work Temperature: -25℃~85℃
• Connect Pressure Sensor: 5KG/10KG
• Power Supply Voltage: DC 3.5V~5V

Features:

• Two selectable differential input channels.
• On-chip power-on-reset.
• It has a power-saving function.
• It supports wide voltage input.
• It uses a 4-digit digital tube display, which can display up to 9999g.
• HX711 Digital Display Weighing Sensor has a calibration function

Package Included:

1 x HX711 Digital Display Electronic Scale Weighing Pressure Sensor Module
