Description

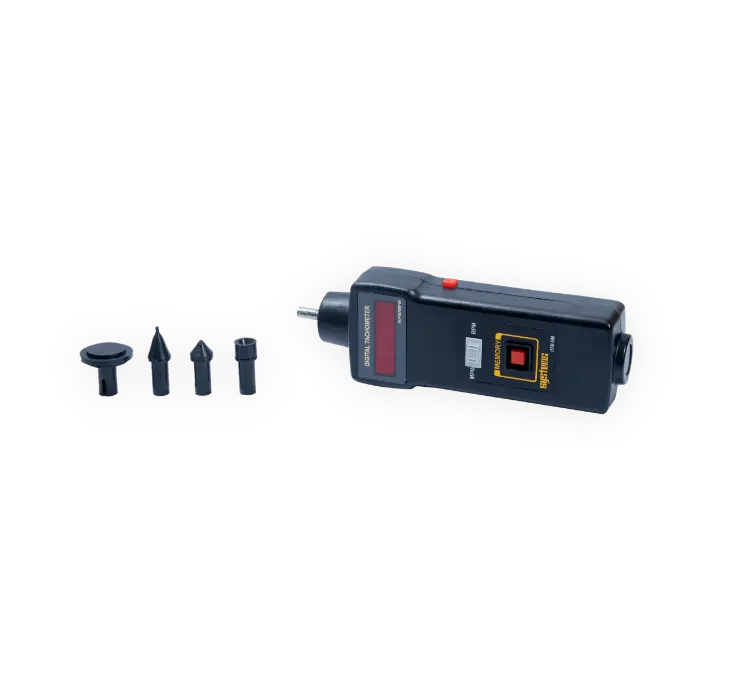

Model Number – HTM 590
A contact-type tachometer is a device used to measure the speed of a rotating object, such as a motor or shaft. It typically consists of a dial, a needle, and an adjustable contact point. The needle is connected to the contact point, which is placed against the object being measured. As the object rotates, the contact point vibrates against the surface of the object, causing the needle to move. The resulting reading on the dial indicates the speed of the object.
Key Features
Trusted for quality and reliability
- Full Digital, Micro Controller LSI circuit design for high reliability and versatility
- Comes with a sturdy, easy to carry/handle carrying case box with foam padding for protection against impact.
- Ergonomically designed for handheld based operations for risk free RPM measurement at all times.
- Excellent Quality, compact size and accurate reading.
- Economic and effective Battery power utilization
Technical Specifications
| Ranges | 60 RPM – 50,000 RPM 6m/min – 5000 m/min (Surface speed) |
| Resolution | 0.1 upto 1000 RPM 1 above 1000 RPM 0.01 upto 100 meter/min 0.1 above 100 meter/min |
| Display Type | 5 DIGITS 10mm(0.38”) height RED LED |
| Accuracy | +/- 0.05 + 1 Digit |
| Sampling Rate | 1 second |
| Time Base | Quartz Crystal Controlled |
| Low Battery | Indicated by “Lobat” when the battery voltage drops below operating voltage |
| Memory Recall | ‘Last’, ‘Max’, ‘Min’ Values memorized automatically, upto 120sec can be recalled |
| Power Source | 4 X 1.5V AA Battery. Auto Shut off feature included |
| Battery Life | 90hrs for alkaline batteries | 30hrs for Carbon-Zinc batteries |
| Operating Temperature | 0° Celsius to 60° Celsius (32° F to 140° F ) |
| Size | 70 x 200 x 40mm (2.8 x 7.8 x 1.6 inch) |
| Weight | 320grams including battery |
| Standard Accessories | Male rubber contact tip -2nos Female rubber contact tip -2nos Peripheral rubber contact tipReflective tape (Marks) – 1nos Padded Carrying Case -1nos User manual -1nos |
