HP-3060 Oscilloscope Probe Set – 1× and 10× Switchable, 60 MHz Bandwidth

Description

Specification :

• Attenuation ratio 10:1
• Bandwidth : DC to 60 Mhz
• Rise Time : 5.8nS
• Input Resistance : Approx. 18pF
• Compensation range : 10 to 30pF
• Max. Input Voltage : 600V CAT 1, 300V CAT 2(DC+ Peak AC) derating with frequency
• Operating temperature : 0 – 50 Degree Celsius
• Humidity : 85% RH or less (at 35 C)
• Cable Length : 1.2 Meter

The HP-3060 is a passive high impedance oscilloscope probe designed and calibrated to use the instruments having an input impedance of 1 M ohm shunted by 20pf. However it may be compensated to use the instruments having an input capacitance of 10 to 30pf.

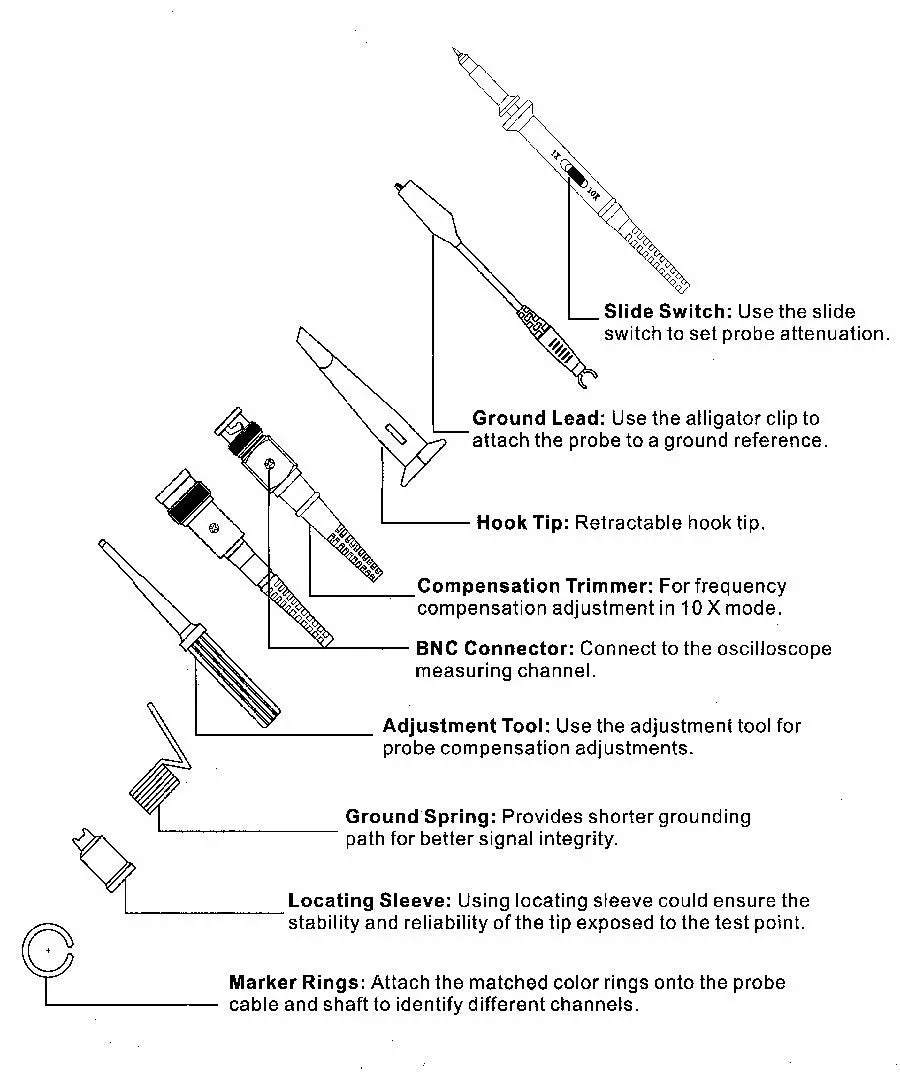

The probe incorporated a two position slide switch in the head which selects attenuation of x1, x10 position.
