Description
Features:
- Operating Voltage: 6V ~ 8.4V
- Operating temperature range: -10°C ~ 50°C
| Electrical Specifications: | 7.2V | 8.4V |
| Operating speed (at no load) | 0.13sec/ 60° | 0.10sec/60° |
| Running current (at no load) | 250mA | 300mA |
| Stall torque (at lock) | 18Kg.cm | 20kg.cm |
| Stall current (at lock) | 3.2A | 3.5A |
| Idle current (at stopped) | 4mA | 5mA |
Mechanical Specification:
| Dimension: | 40 x 20 x 40.5mm |
| Limit Angle (Mechanical) | 360°±10° |
| Limit Angle (Electrical) | 180° |
| Weight | 64±1g |
| Connector wire gauge | #28 PVC |
| Connector wire length | 320±5mm |
| Horn Gear Spline | 25T |
Control Specification:
| Operating frequency: | 50-330Hz |
| Neutral position | 1500 usec |
| Dead band with | 3 usec |
| Pulse width range | From 500 to 2500 usec |
Package Includes:

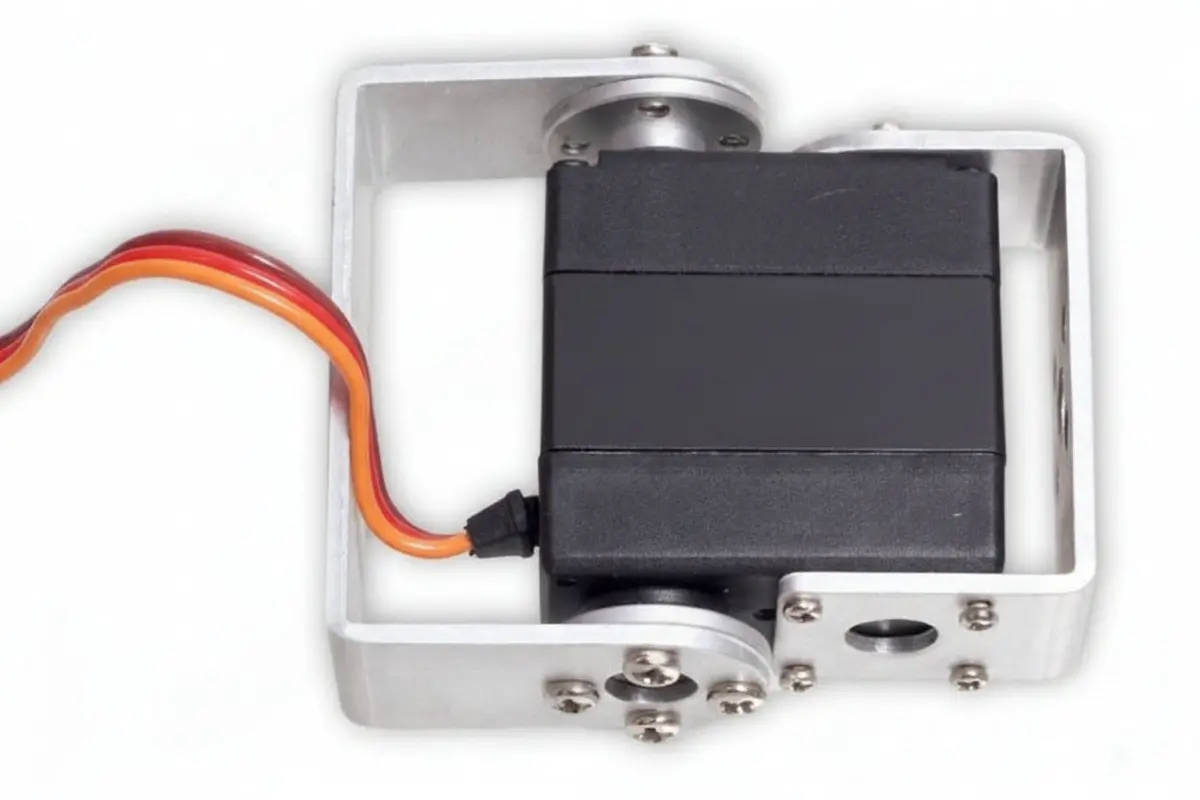

- 1 x Metal Gear Dual Shaft 16kgcm Digital Servo Motor
