HGLRC M80 GPS Module – High-Sensitivity Navigation System for FPV Racing Drones

Description

• Item Name:HGLRC M80 GPS
• Chip:M8030
• Power Supply:5V
• Antenna:Ceramic Antenna
• Receiving Format:GPS,GLONASS,GALILEO,QZSS,SBAS,BDS
• Receiving Channel:72 Searching Channel
• Support Rate:115200dps
• Output Frequency:1Hz-10Hz,Default 10Hz
• Speed Precison:0.05 m/s
• Level Positioning Precison:2D Acc1.5m(ln Open Sky)
• Receiving Sensitivity:Trace -167dBm
  Capture-160dBm
• Dynamic Characteristics:Max Height:50000m
  Max Speed:500m/s
  Max Acceleration:4G
• Working Temperature:-40℃-+85℃
• Storage Temperature:-40℃-+105℃

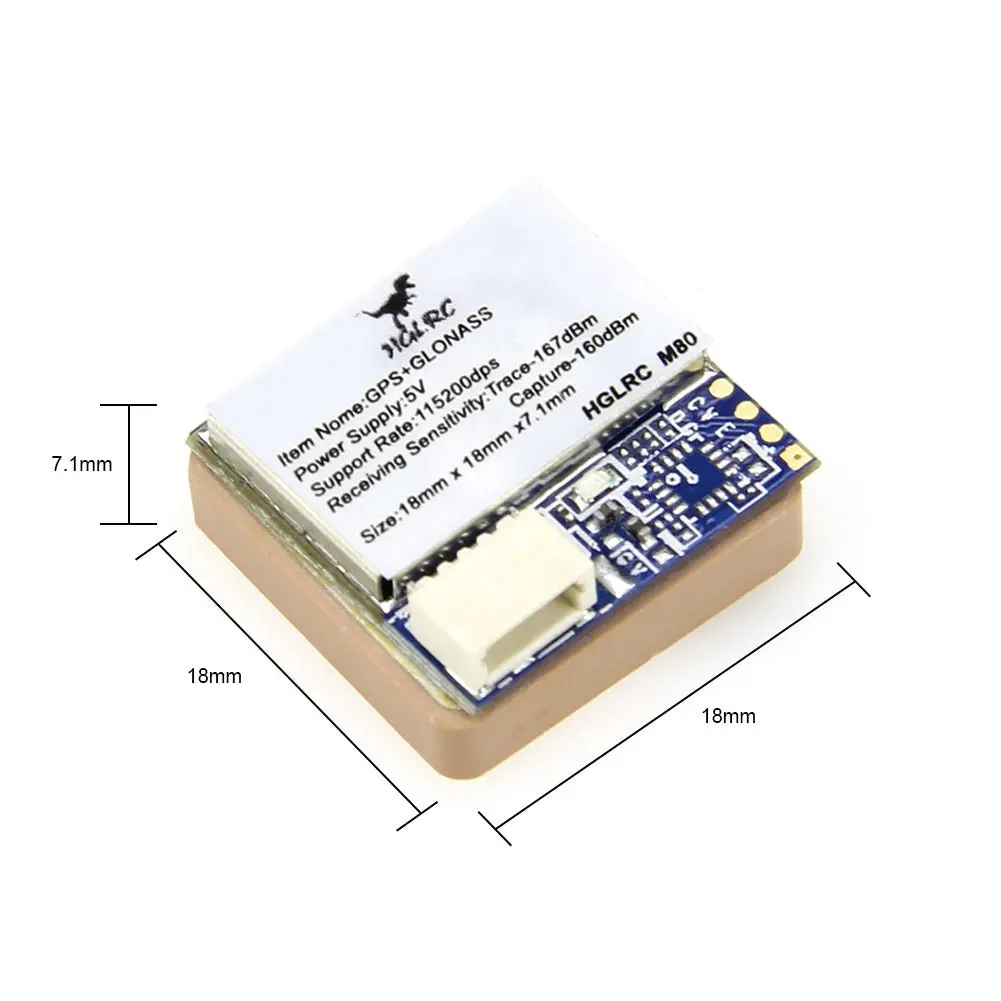

• Size:18.5mm x 18.5mm x 7.1mm
• Weight:9.4g

The HGLRC M80 GPS is a handy device for FPV racing drones. It helps drones know where they are by using GPS technology, which means they can fly more accurately and even return to their starting point if needed. This GPS module is small and lightweight, fitting perfectly on racing drones without adding too much extra weight.

Note: the old batch uses 115200 dps rate.

Features:

1. GPS technology for precise positioning.
2. Lightweight and compact design for FPV racing drones.
3. Easy to install and integrate with existing drone setups.
4. Supports various flight modes for versatile flying experiences.
