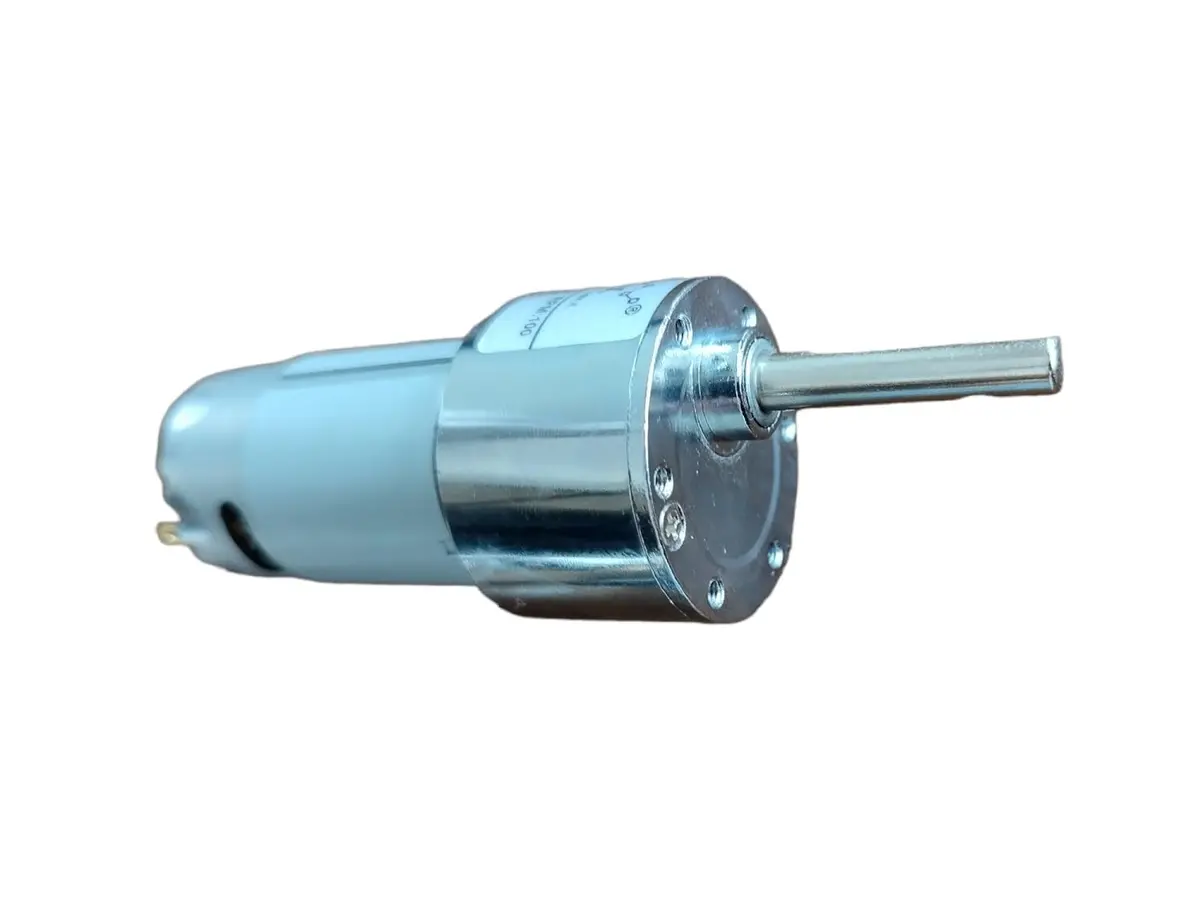

Grade-A Johnson DC Gear Motor – 200 RPM Side-Output Shaft Model

Description

1. Base Motor RPM: 11000
2. Operating Voltage: 12 V
3. Rated Voltage: 12 V
4. Rated Torque: 56.1 N-cm
5. Stall Torque: 350 N-cm
6. No-load current = 800 mA, Load current = upto 7.5 A(Max)
7. 200RPM 12V DC motors with Metal Gearbox and Metal Gears
8. 6mm Dia shaft with M3 thread hole
9. Gearbox diameter 37 mm.
10. Motor Diameter 28.5 mm
11. Length 63 mm without shaft
12. Shaft length 30mm
13. 180gm weight

200RPM 12V Johnson high torque DC geared motors for robotics applications. It gives a massive torque. The motor comes with metal gearbox and off-centered shaft.
