Futaba S3003 Standard Servo – 180° Positional Control for RC Applications

Description

• Stall Torque (6.0V): 4.1 kg.cm,
• Stall Torque (4.8V): 3.2 kg.cm
• Operating Voltage: 4.8-6.0 Volts,
• Operating Speed (6.0V): 0.19sec/60 degrees at no load,
• Operating Speed (4.8V): 0.23sec/60 degrees at no load
• Control System: +Pulse Width Control 1520usec Neutral

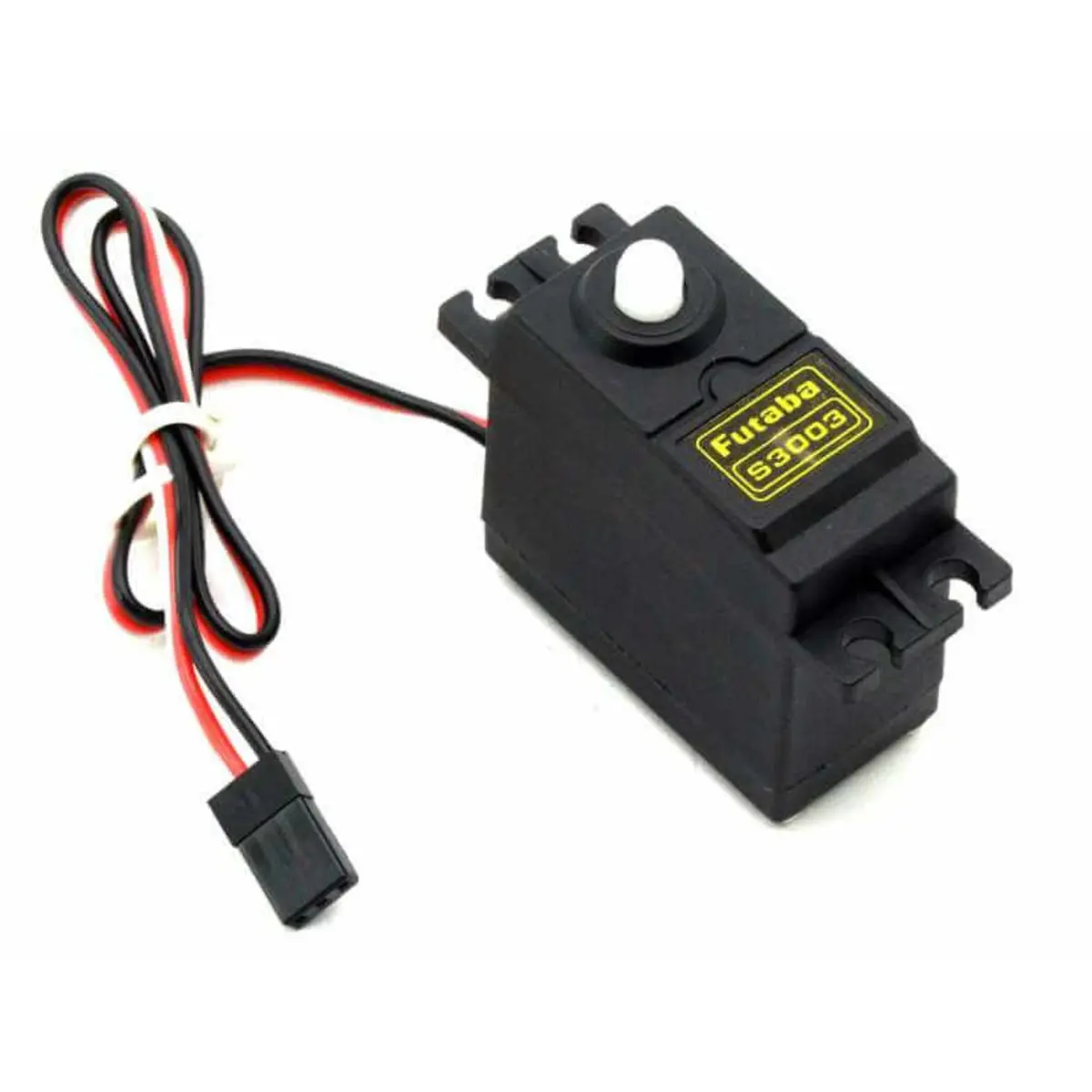

This is the Futaba S3003 Standard Servo. This basic servo is used in cars, boats, or where standard servos are used. This is the replacement for the following servos, S138,S148,S22,S38 and S12. This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering sufficient amps. INCLUDES One S3003 standard servo with preinstalled X shape servo horn Four brass eyelets Four Black rectangular rubber grommets (FUTM2348) Four servo mount screws One servo wheel 1-3/8″ (35mm) in diameter One X-shape servo arm 1.5″ (38mm) across One star shaped arm 1-1/4″ (32mm) across Nylon gears
