FNIRSI 2C23T Handheld Oscilloscope – 3-in-1 Device with Multimeter & DDS Signal Generator (10 MHz)

Description

The FNIRSI handheld oscilloscope combines oscilloscope, multimeter, and signal generator functions in one device. It offers a 10MHz bandwidth, 50MSa/s sampling rate, and ±400V maximum measurement voltage. The oscilloscope has a 2.8-inch HD LCD display and built-in 3000mAh battery for up to 6 hours of use. With automatic measurement, waveform storage, and export capabilities, it is ideal for professionals and hobbyists alike.

1. 2 Channel Oscilloscope: 10MHz bandwidth, 50MSa/s sampling rate, ±400V max voltage
2. Multimeter Mode: 10000 counts, measures voltage, current, resistance, capacitance, and temperature
3. Signal Generator: Outputs seven waveforms up to 2MHz frequency
4. High-Resolution Display: 2.8-inch 320×240 HD LCD
5. Long Battery Life: 3000mAh rechargeable battery, up to 6 hours standby
6. Waveform Storage: One-click save and export via Type-C

Features:

1. Oscilloscope Mode: 2-channel, 10MHz bandwidth, 50MSa/s sampling rate, auto/normal/single trigger modes, and vertical sensitivity from 200mv/div to 10v/div.
2. Multimeter Mode: 4-digit 10000 counts for AC/DC voltage and current, resistance, capacitance, and temperature measurements.
3. Signal Generator: Maximum output frequency of 2MHz with seven waveform types (sine, square, triangle, full, half, noise, DC).

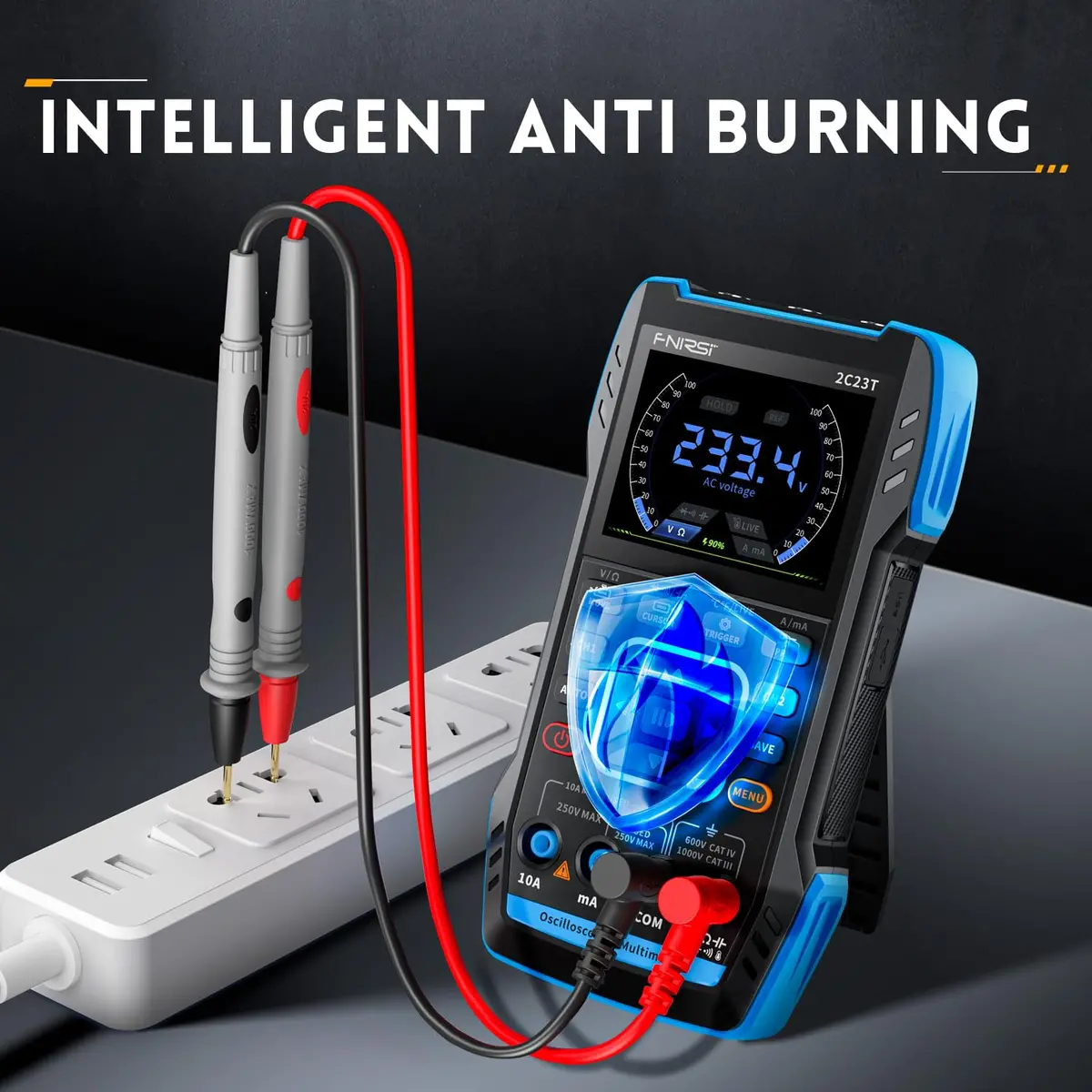

4. Design and Display: FPGA+MCU+ADC architecture, high-voltage protection, 2.8-inch 320×240 HD LCD, 3000mAh rechargeable battery, Type-C charging.
5. Data Storage and Export: One-click save function with waveform image storage and export via Type-C connection.
6. Versatile Usage: Ideal for professionals, factories, schools, hobbyists, and home use.

Package Includes:

1 x FNIRSI 2C23T 3-in-1 Handheld Oscilloscope Multimeter DDS Generator Channels, 10MHz Bandwidth
