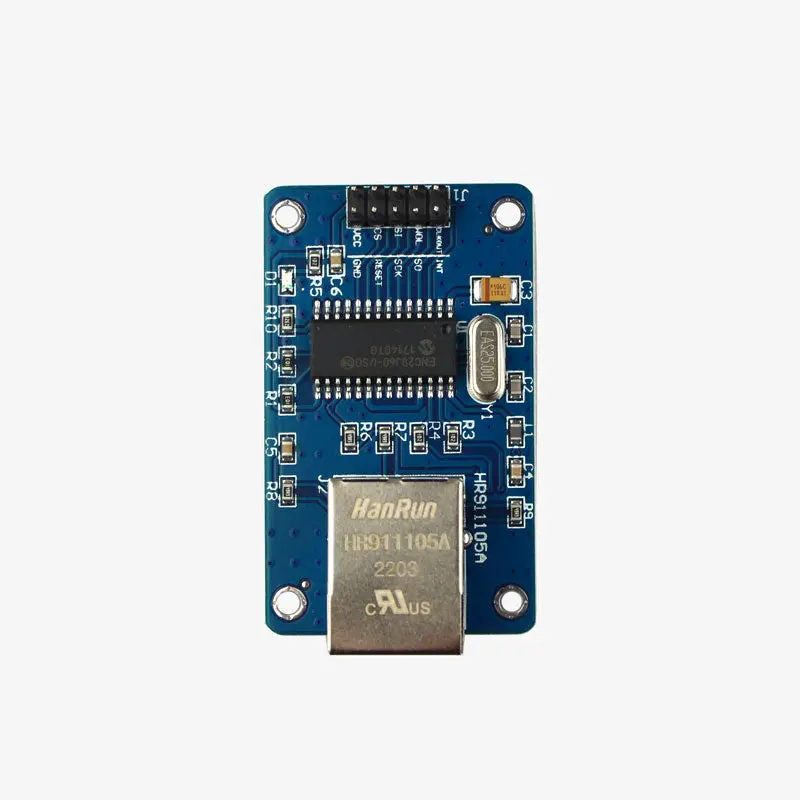

ENC28J60 Ethernet LAN Network Interface Module for Microcontrollers

Description

• ENC28J60 Ethernet chips, SOP28 package

• SPI Interface

• 1×10 connector, can be easily mounted with the MCU
• Built-in isolation transformer RJ45 connectors HR911105A

The ENC28J60 is a stand-alone Ethernet controller with an industry standard Serial Peripheral Interface. It is designed to serve as an Ethernet network interface for any controller equipped with SPI.

ENC28J60 Ethernet Module utilizes the Microchip ENC28J60 Stand-Alone Ethernet Controller IC featuring a host of features to handle most of the network protocol requirements. The board connects directly to most microcontrollers with a standard SPI interface with a transfer speed of up to 20MHz.

Features:-

• ENC28J60 Ethernet chips, SOP28 package
• SPI Interface
• 1×10 connector, can be easily mounted with the MCU
• Built-in isolation transformer RJ45 connectors HR911105A
• Power LED
• Single Supply: +3.3 V
• 25Mhz Crystal
• PCB size: 48×18 mm
