Description

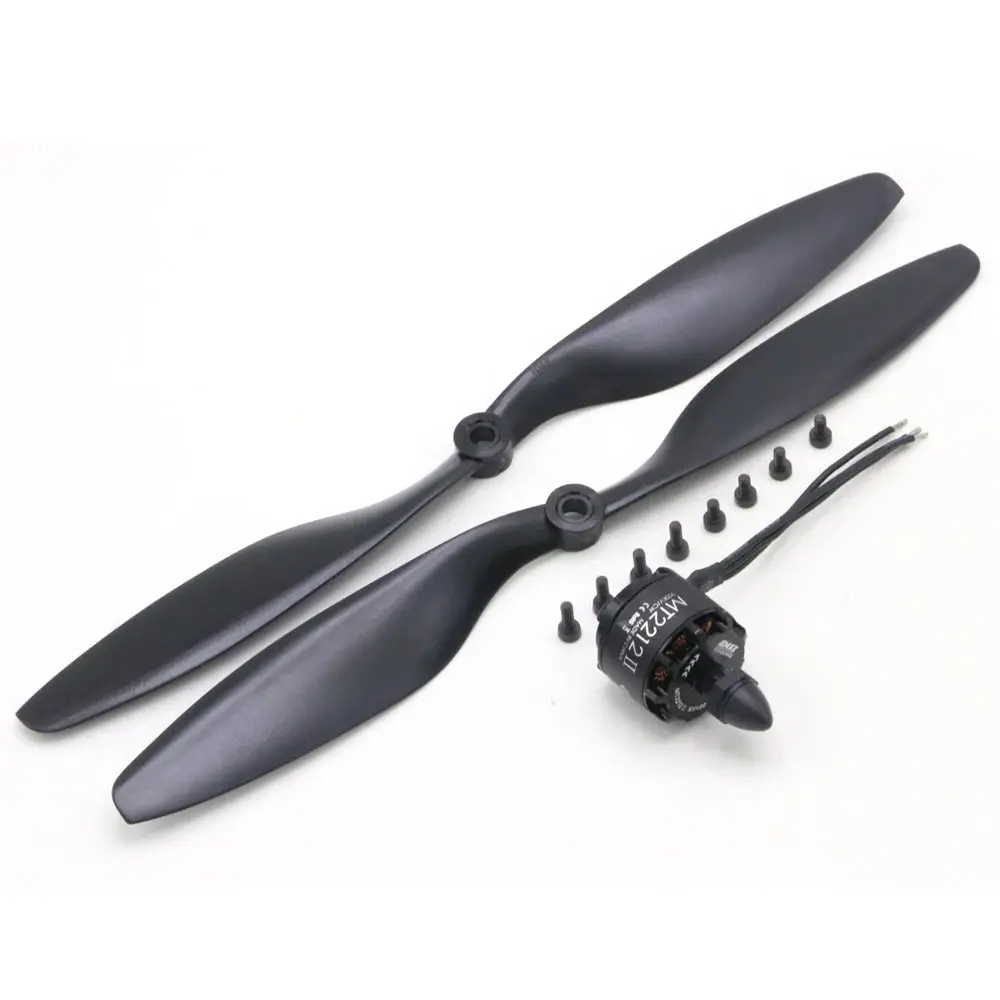

E max MT 2212 II 900 kv Black cap (CW) Brushless BLDC Motor + 1045 Propeller Blade

Brand: Emax

Model: 2212

KV: 900 KV

Black Cap (CW)

1045 Propeller Pair

Note:

The BLDC motor rotation is always opposite to the direction of Thread.

As in this case, the motor rotation direction is CW, so the Thread tightening direction will be CCW <“left-handed-thread”>.

Features :

Vibration-free operation.

Very easy to install.

Windings are made from copper of high purity.

Powered by highest grade neodymium magnets.

Generates less heat during operations.

Specifications :

Framework: 12N14P

KV: 900KV CW

Length: 38.7MM

Diameter: 27.9MM

No.of cells: 3-4s

Max. thrust: 720g

Shaft: 3MM

Propeller: 8″-10″ (1045)

Weight: 50g

Rotation: CW

Thread Rotation: CCW

The EMAX MT2212 900KV Multirotor Motor with Prop1045 Combo, CCW/CW, is a package that includes both motors and propellers for your multirotor or drone. H

here’s an overview of the key features and specifications for this combo:

EMAX MT2212 900KV Multirotor Motor (Cooling Series):
KV Rating: The motor has a KV rating of 900, which indicates a relatively low RPM (Revolutions Per Minute) per volt. This is suitable for applications that require more torque and efficiency, such as aerial photography or carrying heavier payloads.
Cooling Series: The “Cooling Series” designation suggests that these motors have a design aimed at better heat dissipation, which is beneficial for applications that require prolonged or high-performance use.
Rotation Options: This combo includes both CCW (Counterclockwise) and CW (Clockwise) rotation motors, which are crucial for proper motor configuration in multirotor setups. Make sure to install them correctly to ensure a balanced flight.

10×4.5 inch Propellers (Prop1045):

Size: The included propellers have a diameter of 10 inches and a pitch of 4.5 inches. The pitch indicates how much the propeller will move forward with one full rotation.
Material: These propellers are typically made from lightweight and durable materials, such as plastic or composite materials.
Applications: The propellers are designed for use with multirotor drones, and they are matched with the 900KV motors for optimal performance.

Applications

• Drone and UAV (Unmanned Aerial Vehicle) Propulsion
• RC (Remote-Controlled) Aircraft
• RC Cars and Trucks
• Electric Skateboards
• Electric Bicycles (E-Bikes)
• Robotics
• Electric Boats and Watercraft
• Gimbals and Camera Stabilization
• DIY Projects
• Industrial Applications
• Medical Devices
• Aerospace and Aerospace Modeling
• Entertainment and Props
