Description
Package Includes:

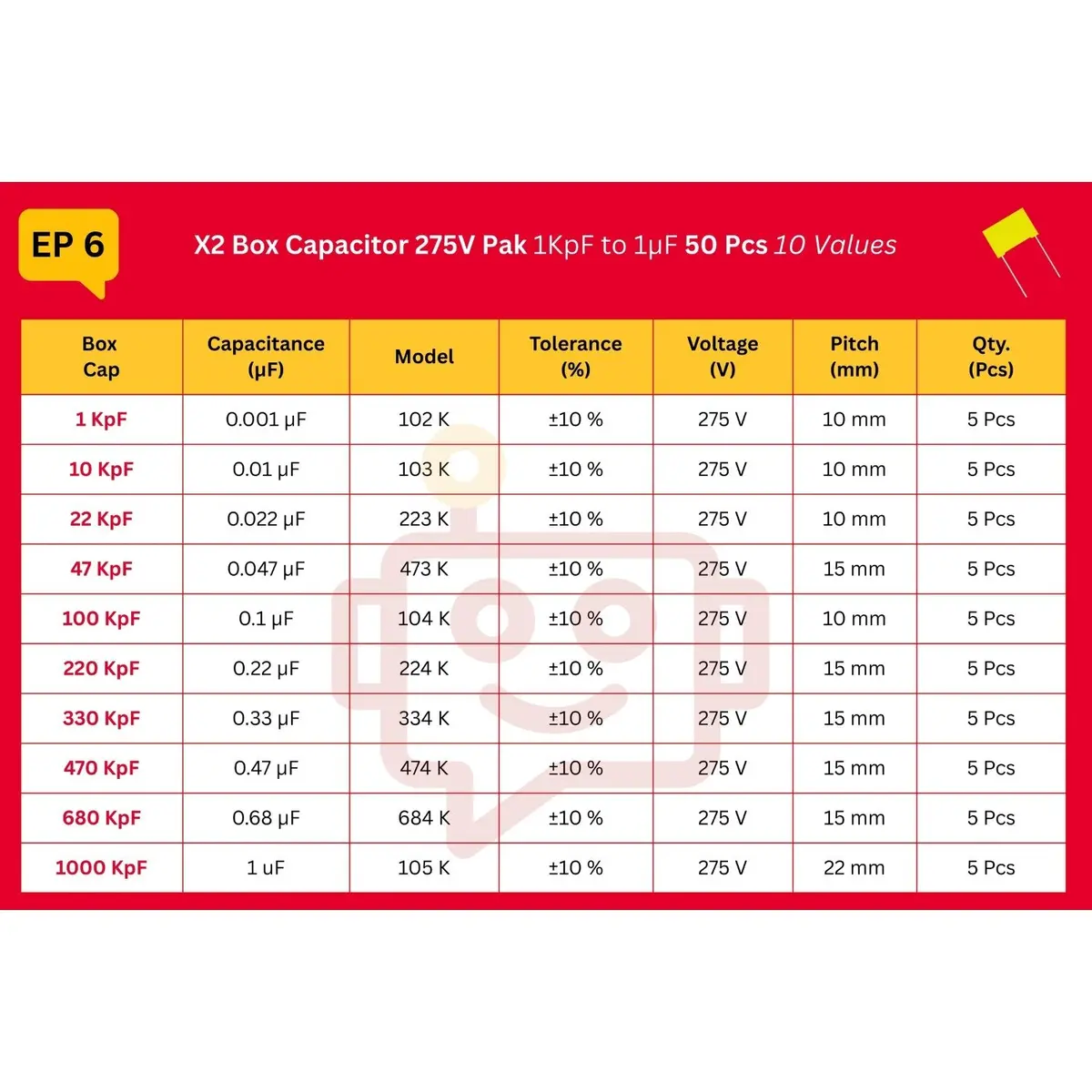

50 X2 Box Capacitor 275V 10 Types
- 1 KpF – 5 Pcs
- 10 KpF – 5 Pcs
- 22 KpF – 5 Pcs
- 47 KpF – 5 Pcs
- 100 KpF – 5 Pcs
- 220 KpF – 5 Pcs
- 330 KpF – 5 Pcs
- 470 KpF – 5 Pcs
- 680 KpF – 5 Pcs
- 1000 KpF – 5 Pcs
Technical Specifications:
- Type: Through Hole
- Model: X2 Box Capacitors
- Capacitance Range: 1 KpF – 1 µF
- Rated Voltage: 275 VAC
- Tolerance: ±10 %
- Pitch: 10 mm – 22 mm
- Box Weight: 200 gm
- Box Dimensions: 150 x 100 x 35 mm
Description
X2 safety capacitors are designed for use in AC line applications, particularly for electromagnetic interference (EMI) suppression. These capacitors are non-polarized and are constructed to withstand high voltage spikes, making them essential components for enhancing the safety and reliability of electrical devices. With robust dielectric materials, X2 capacitors provide excellent capacitance stability, low dissipation factors, and a long operational lifespan. They are particularly effective in filtering applications, helping to reduce noise and improve the overall performance of electrical systems.
X2 Box Cap Symbol:
X2 Box Cap Part Code:
X2 Box Cap Structure:
Features:
- Safe for AC mains
- Self-healing property
- Fire-resistant material
- Long operational life
- Protects against voltage spikes
- Compact and efficient
- Stable under varying conditions
- Works in extreme temperatures
- Low energy leakage
- Common in EMI filters
Applications:
- Power Supplies – Reduces noise in SMPS
- EMI Filtering – Suppresses electromagnetic interference
- Surge Protection – Shields devices from voltage spikes
- Motor Circuits – Enhances stability in motor drives
- Household Appliances – Used in washing machines, refrigerators, etc
- LED Drivers – Improves efficiency and reduces flickering
- Industrial Systems – Ensures stable automation performance
- Voltage Stabilization – Maintains consistent AC voltage
- Smart Meters – Helps in accurate energy measurements
