Elepak Single-Row Female Header Strip Assortment – 55 Pieces, 7 Pin Counts (4–20 pins, 2.54 mm pitch)

Description

Package Includes:

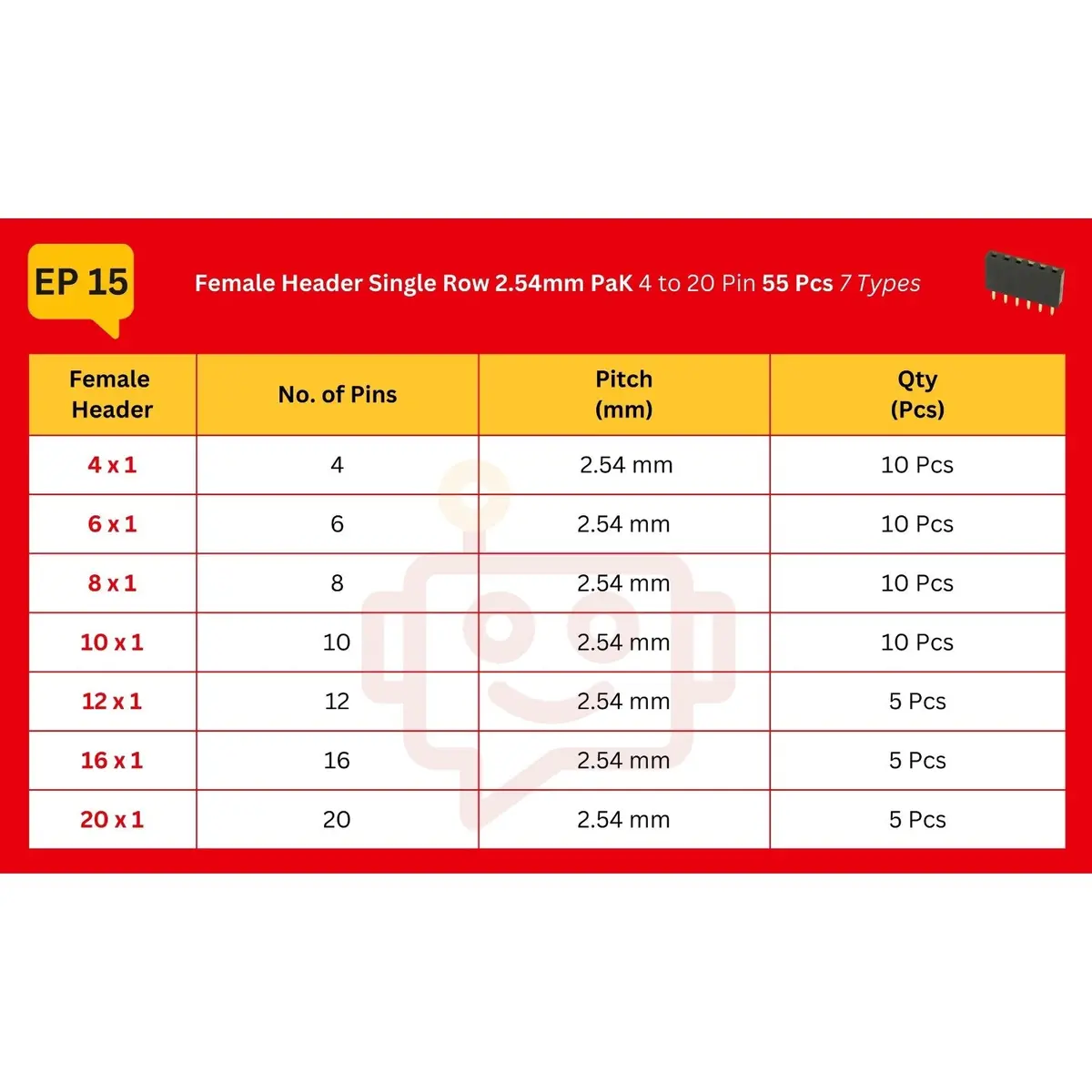

55 Female Headers 2.54 mm 7 Types

• 4×1 Flow Solder – 10 Pcs
• 6×1 Flow Solder – 10 Pcs
• 8×1 Flow Solder – 10 Pcs
• 10×1 Flow Solder – 10 Pcs
• 12×1 Flow Solder – 5 Pcs
• 16×1 Flow Solder – 5 Pcs
• 20×1 Flow Solder – 5 Pcs

Technical Specifications:

• Type: Through Hole
• Model: Single Row Flow Solder
• Header Pin Type: Female
• Connector: Header Strip
• Pin Count: 4 – 20 Pin
• Lead Spacing: 2.5 mm
• Current Rating: Upto 3 A
• Voltage Rating: 250 V AC/DC
• Pak Weight: 200 gm
• Pak Dimensions: 90 x 60 x 24 mm

Description

Flow Solder Single Row connectors with a 2.54mm pitch are commonly used in PCB (Printed Circuit Board) assemblies for reliable electrical connections. These connectors are designed for wave soldering (also known as flow soldering), a process where the PCB is passed over a wave of molten solder to create secure joints.

Connector Symbol:



Flow Solder Structure:

Flow Solder Pin Insertion:

Features:

• Strong & Reliable Solder Joints
• Efficient for Mass Production
• Consistent & Uniform Connections
• Reduces Manual Soldering Effort
• Cost-Effective for Large-Scale Manufacturing

Applications:

• PCB Assembly – Efficiently solders components in mass production
• Prototyping and Development – Quick assembly for testing and design validation
• Consumer Electronics – Reliable, cost-effective soldering for devices like smartphones and TVs
• Automotive Electronics – Durable connections for critical automotive systems
• Medical Devices – Precise soldering for high-safety, performance-required devices
