Description
Package Includes:

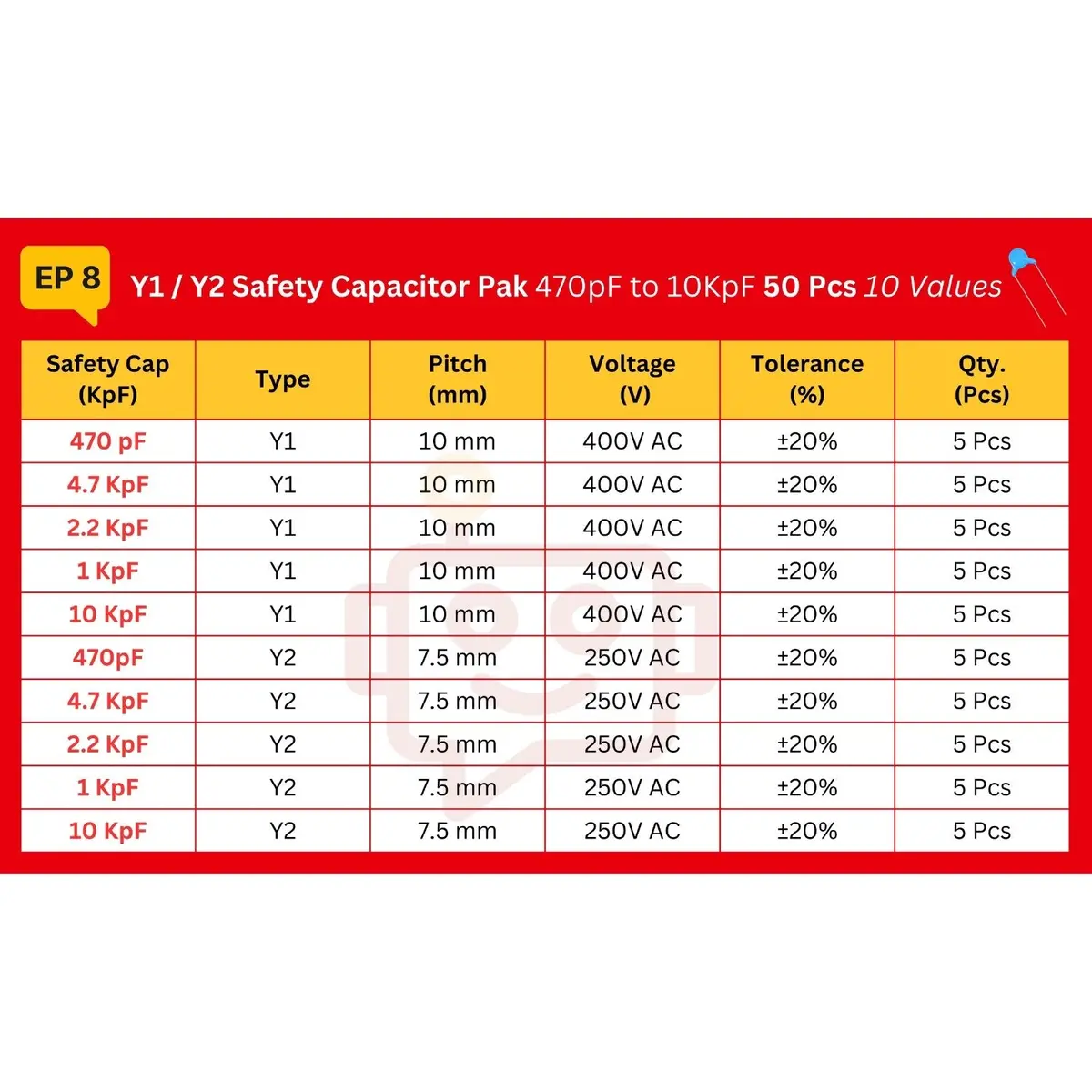

50 Y1/Y2 Capacitors 10 Values
- 470 pF / 400V – 5 Pcs
- 4.7 KpF / 400V – 5 Pcs
- 2.2 KpF / 400V – 5 Pcs
- 1 KpF / 400V – 5 Pcs
- 10 KpF / 400V – 5 Pcs
- 470 pF / 250V – 5 Pcs
- 4.7 KpF / 250V – 5 Pcs
- 2.2 KpF / 250V – 5 Pcs
- 1 KpF / 250V – 5 Pcs
- 10 KpF / 250V – 5 Pcs
Technical Specifications:
- Type: Through Hole
- Model: Y1/Y2 Safety Capacitor
- Capacitance Value: 470 pF to 10 KpF
- Voltage Rating: 250V, 400V
- Tolerance: ±20 %
- Pitch: 7.5 mm – 10 mm
- Pak Weight: 60 gm
- Pak Dimensions: 127 x 80 x 24 mm
Description
Y1 capacitors are built to withstand high levels of voltage fluctuations, which often occur in power lines due to switching, lightning strikes, or electrical faults. They have a ceramic dielectric material, which provides high stability, low loss, and excellent insulation resistance, making them ideal for applications where reliability over long periods is necessary. This set includes capacitors with voltage ratings of 250V and 400V, each carefully chosen for different operating environments:
400V Y1 Capacitors: Suitable for more robust systems with higher voltage stress, providing extra insulation protection.
250V Y1 Capacitors: Effective for general EMI suppression in lower voltage applications while meeting the Y1 safety requirements.
Capacitor Symbol:
Y1 Safety Cap Structure:
Features:
- High safety standards (Y1 rated)
- Excellent voltage withstanding capability
- Stable and reliable performance
- Flame-retardant construction
- Long operational lifespan
Applications:
- AC Line Filtering – Suppresses noise between line and ground in AC power circuits
- EMI/RFI Suppression – Reduces electromagnetic and radio-frequency interference
- Switch-Mode Power Supplies – Ensures safe filtering and isolation in SMPS circuits
- Surge Protection – Helps absorb voltage spikes and protect sensitive components
- Consumer Electronics – Enhances safety and compliance in everyday electronic devices
