Elepak 78M Series SMD Voltage Regulators – 30 TO-252 Devices, 6 Outputs (5V–15V, 0.5A)

Description

Package Includes:

30 SMD 78M TO-252 Positive Voltage Regulator IC 6 Types

• 78M05 – 5 Pcs
• 78M06 – 5 Pcs
• 78M08 – 5 Pcs
• 78M09 – 5 Pcs
• 78M12 – 5 Pcs
• 78M15 – 5 Pcs

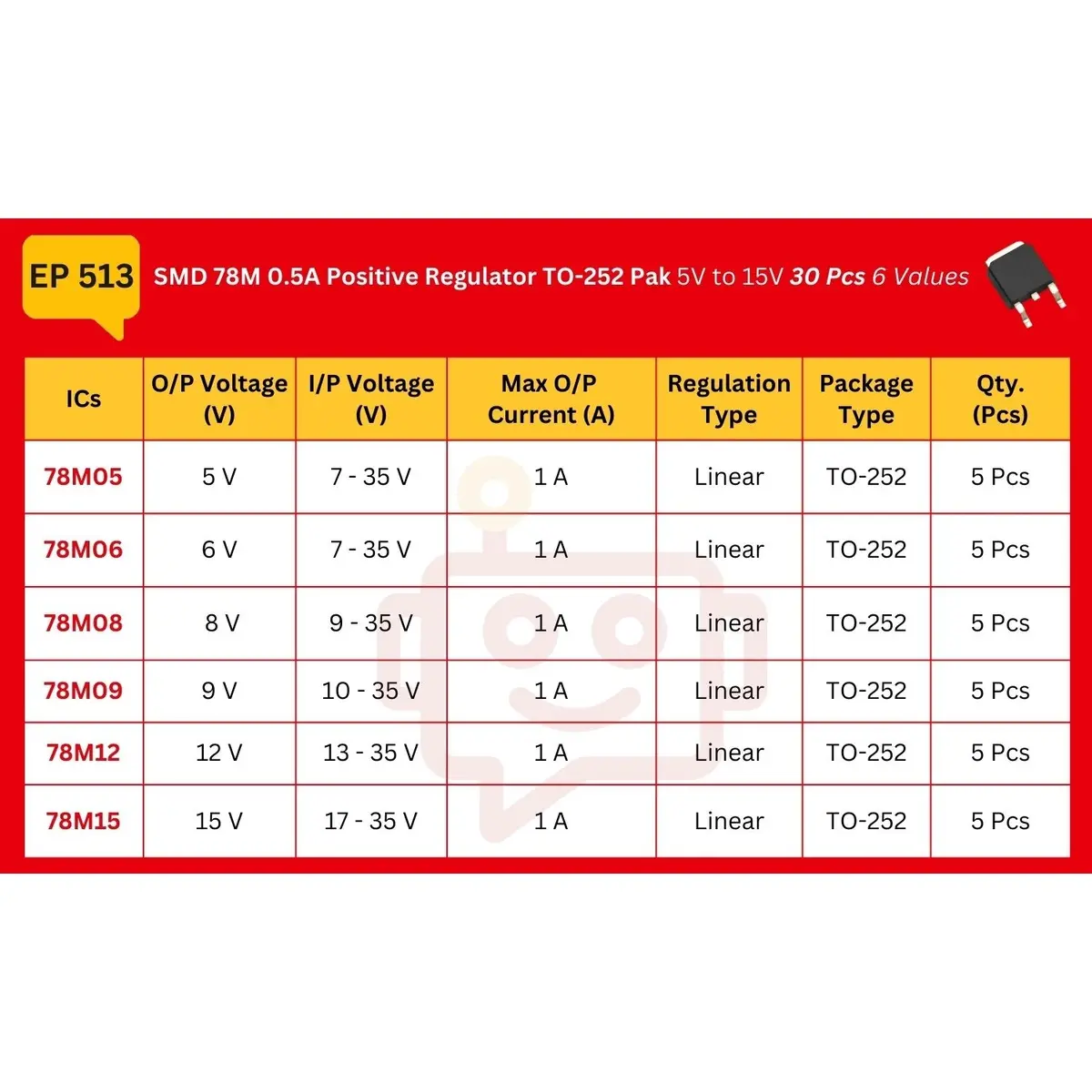

Technical Specifications:

• Type: SMD
• Model: 78Mxx IC
• Package Type: TO – 252
• O/P Voltage: 5 V – 15 V
• I/P Voltage: 7 V – 35 V
• Max. O/P Current: 1 A
• Regulation Type: Linear
• Pak Weight: 100 gm
• Pak Dimensions: 90 x 60 x 24 mm

Description

This is a set of 30 SMD (Surface-Mount Device) TO-252 package positive voltage regulators, including 6 different 78Mxx series models. These medium-current regulators are widely used for providing a stable, regulated DC output voltage from a higher input voltage source in a variety of electronic circuits.

Each regulator is part of the 78Mxx family, offering fixed output voltages with built-in protection features such as current limiting, thermal shutdown, and safe area compensation. They are suitable for applications like microcontroller power supply, embedded systems, sensors, and other low-power devices.

78Mxx IC Symbol:

Features:

• Compact surface-mount design (TO-252 package)
• Excellent heat dissipation
• Built-in overcurrent and thermal protection
• Fixed output voltages for easy circuit integration
• Versatile use in various electronic applications

Applications:

• Microcontroller Power Supply – Provides stable voltage to ensure reliable microcontroller operation
• Consumer Electronics – Regulates voltage in devices like set-top boxes, routers, and TVs
• Embedded Systems – Powers sensors, modules, and other components in embedded designs
• Automotive Electronics – Used in ECUs and infotainment systems for regulated power delivery
• Industrial Control Systems – Maintains consistent voltage in automation and control equipment
