Description

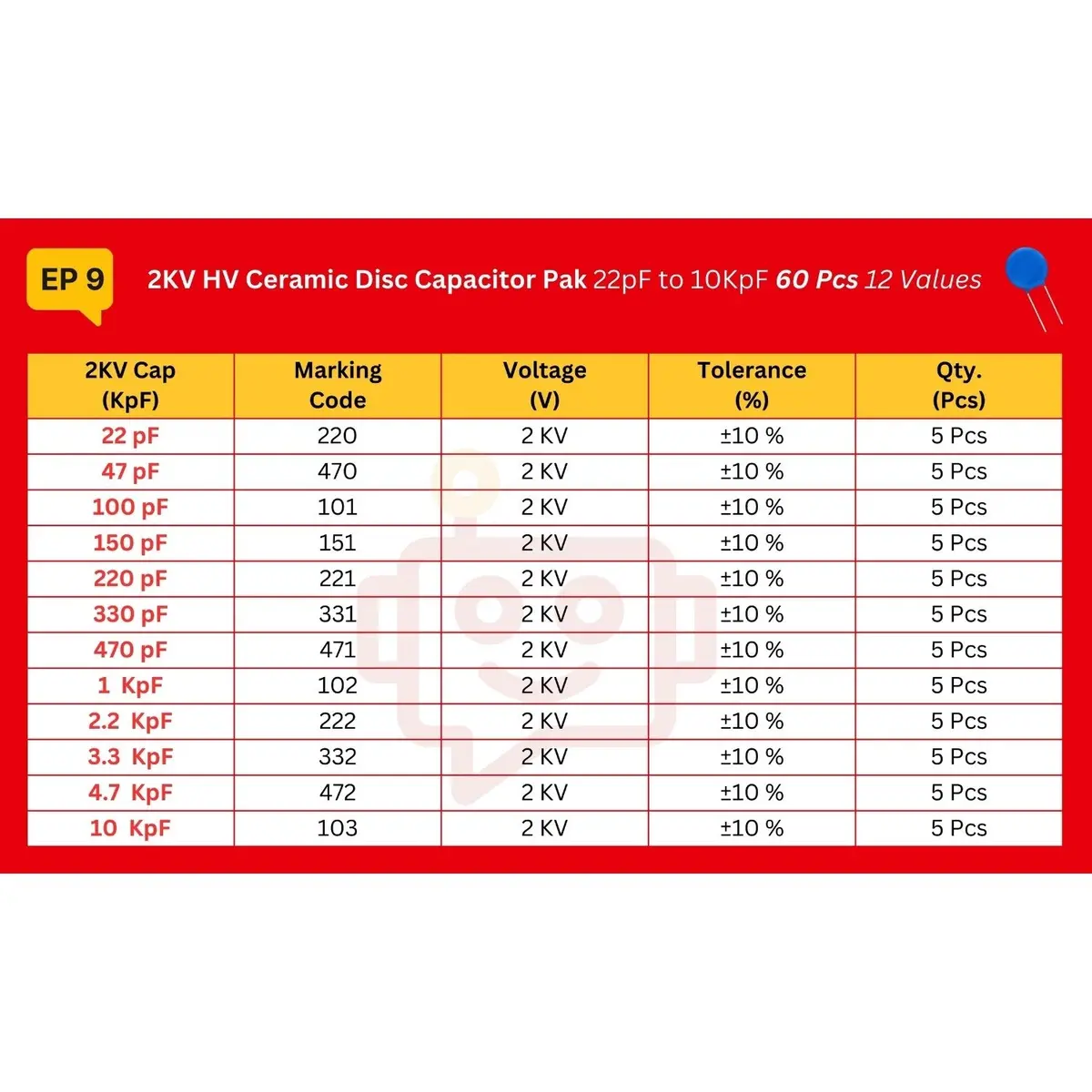

Package Includes:
60 2KV HV Ceramic Disc Capacitor 12 Types
- 22 pF – 5 Pcs
- 47 pF – 5 Pcs
- 100 pF – 5 Pcs
- 150 pF – 5 Pcs
- 220 pF – 5 Pcs
- 330 pF – 5 Pcs
- 470 pF – 5 Pcs
- 1 KpF – 5 Pcs
- 2.2 KpF – 5 Pcs
- 3.3 KpF – 5 Pcs
- 4.7 KpF – 5 Pcs
- 10 KpF – 5 Pcs
Technical Specifications:
- Type: Through Hole
- Model: HV Ceramic Disc Capacitor
- Capacitance Range: 22 pF – 10 KpF
- Voltage Rating: 2 KV
- Tolerance: ±10 %
- Pak Weight: 50 gm
- Pak Dimensions: 127 x 80 x 24 mm
Description
The 2KV Ceramic Disc Capacitor is designed for high-voltage electronic circuits where stability, reliability, and safety are essential. This assortment pack includes 60 pieces of 2KV-rated ceramic disc capacitors, perfect for high-voltage applications in electronics projects, repairs, or prototyping. Each capacitor is clearly marked and sorted for easy identification and use.
Capacitor Symbol:
2KV Cap Structure:
2KV Cap Part Code:
Features:
- High voltage rating of 2KV
- Excellent temperature and frequency stability
- Low dissipation and minimal power loss
- Compact ceramic disc design with radial leads
- High insulation resistance for reliable performance
Applications:
- High-Voltage Power Supplies – Used for filtering and energy storage in HV circuits
- CRT and Flyback Transformer Circuits – Ideal for use in legacy displays and HV switching
- X-ray and Medical Equipment – Ensures insulation and reliability in high-voltage sections
- RF and Oscillator Circuits – Maintains stability at high frequencies
- Surge Suppression and Noise Filtering – Protects sensitive components from voltage spikes
