Dual Digital Panel Meter: 0–100V Voltmeter + 50A Ammeter with External 50A Shunt

Description

Digital Voltmeter (0-100V) and Ammeter (50 A) Dual Led Voltage Current Measurement Module with Shunt

Specifications:-

• Input Voltage – 4.5V to 100V DC
• Input Current – <= 20mA
• Display Color – Red (Voltage) , Blue (Current)
• Measuring Voltage Range – 0V to 100V DC
• Measuring Currrent Range – 0A to 50A
• Measurement Accuracy – 1%
• Minimum Voltage Resolution – 0.1V
• Minimum Current Resolution – 0.01A
• Meter Size – 48x29x21mm

Note:- Maximum Input Voltage should not exceed 100V otherwise there is a danger of burning

Wiring:-

• Black line (thin): vacant or buck circuit (module) Negative
• Red line (thin): power supply Positive
• Black line (thick): COM, common measuring
• Red line (thick): PW+, measuring terminal voltage input positive
• Yellow line (thick): IN+, current input Positive

Package Contains:-

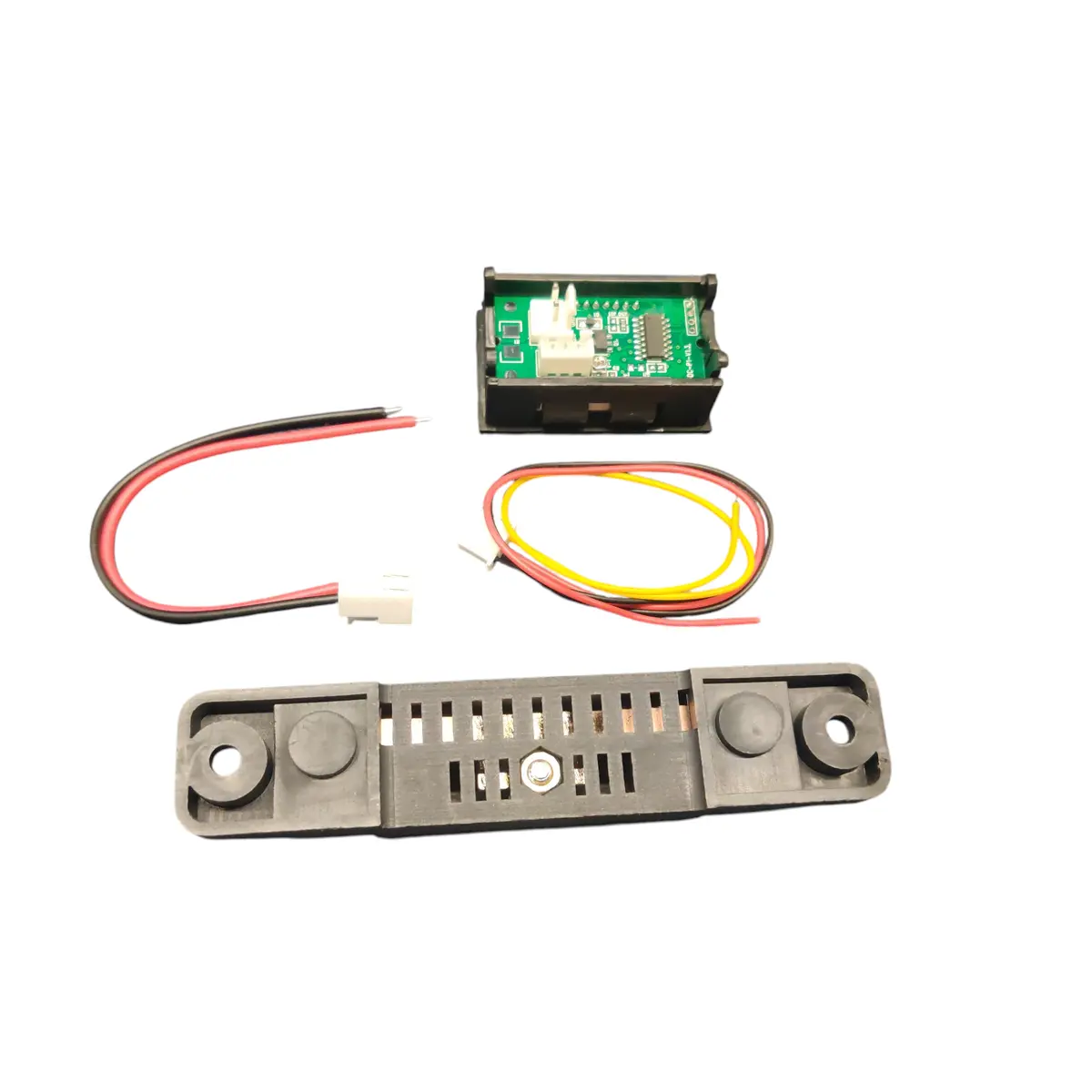

1 x Digital Voltmeter & Ammeter Module

1 x FL-2C 50A 75mV Analog DC Current Shunt Resistor With Base

1 x Two wire thin connector

1 x Three wire thin connector

* Product Images are shown for illustrative purposes only and may differ from actual product.
