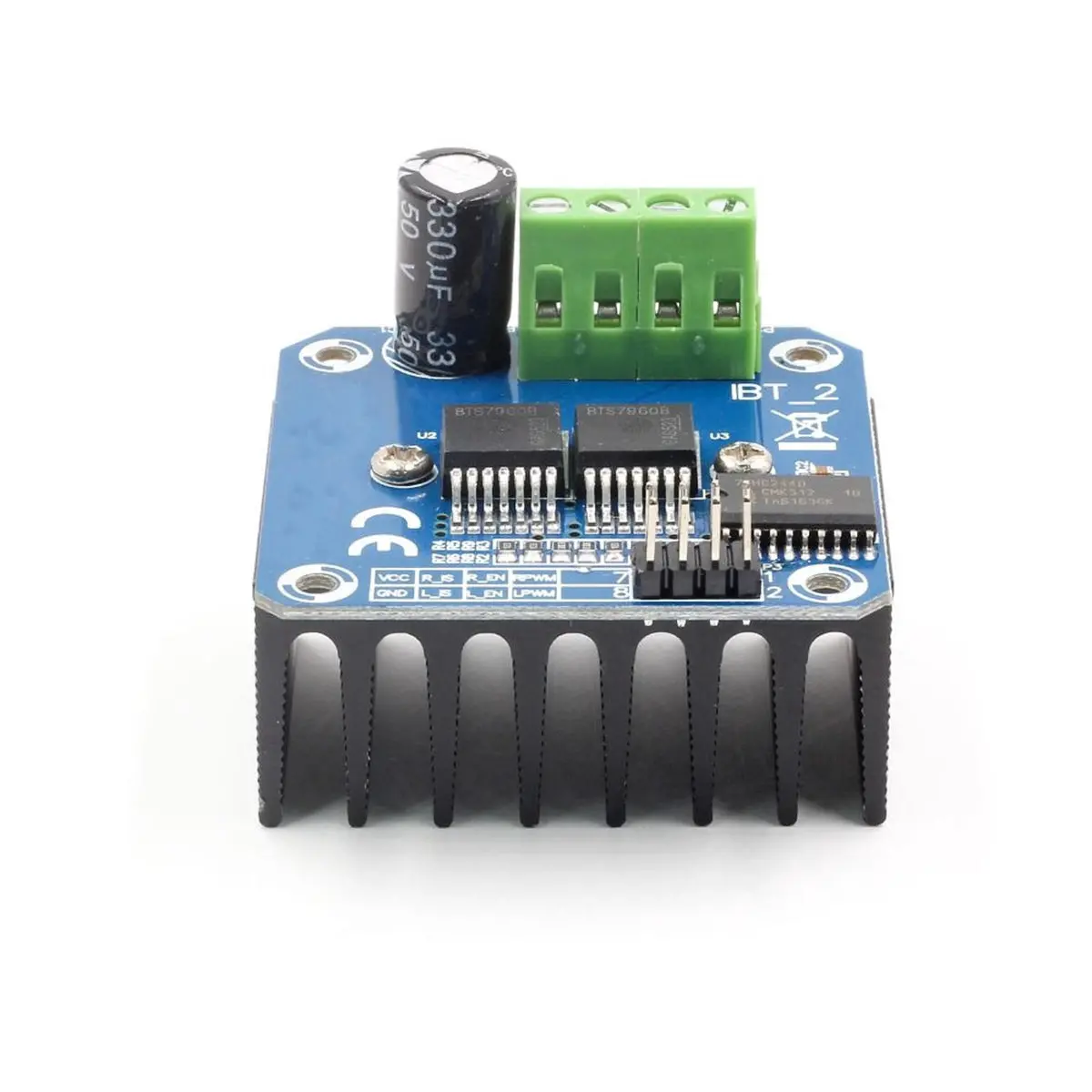

Dual BTS7960 H-Bridge Motor Driver – 43A High-Power Stepper/DC Controller

Description

• This is BTS7960B 43A H-Bridge Motor Driver
• Double BTS7960 large current (43 A) H bridge driver
• The supply voltage: 5.5V to 27V
• This has Overtemperature shut down with latch behavior
• This has Overvoltage lockout and Undervoltage shut down
• The Driver circuit with logic level inputs.
• This has an onboard 5V power indicator
• This has a driver circuit with logic-level inputs.

Features

• Path resistance of type. 16 m? @ 25 °C
• Low quiescent current of typ. 7 µA @ 25 °C
• PWM capability of up to 25 kHz combined with active freewheeling
• Switched mode current limitation for reduced power dissipation in overcurrent
• Current limitation level of 43 A typ.
• Status flag diagnosis with current sense capability
• Overtemperature shut down with latch behavior
• Overvoltage lockout
• Undervoltage shut down
• Driver circuit with logic level inputs
• Adjustable slew rates for optimized EMIThe Double BTS7960 43A H-Bridge High-Power Motor Driver Module is a fully integrated high current H bridge designed for motor drive applications that use the BTS7960 high current half bridge.
The NovalithICTM family includes the BTS7960. This package contains one p-channel high-side MOSFET and one n-channel low side MOSFET, as well as an integrated driver IC. The p-channel high-side switch eliminates the need for a charge pump, reducing EMI.
The integrated driver IC simplifies interfacing to a microcontroller by providing logic level inputs, diagnosis with current sense, slew rate adjustment, dead time generation, and protection against overtemperature, overvoltage, undervoltage, overcurrent, and short circuit.
The Double BTS7960 43A H-Bridge Motor Driver Module is a low-cost solution for protected high-current PWM motor drives with small in size.
