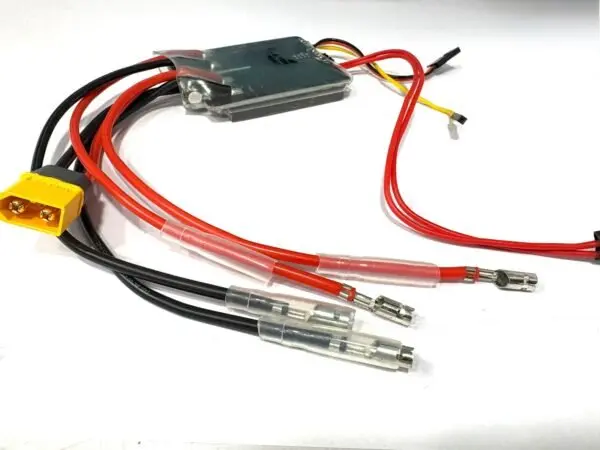

Dual Brushed ESC Module: 80A Dual Motor Speed Controller for RC Applications

Description

80A Dual Brushed ESC offers a robust and versatile solution for 1/10th and 1/8th scale RC vehicles driven by dual brushed motors. It features two sets of output wires for simultaneously controlling two motors in synchronization, ideal for rock crawlers and off-road vehicles needing balanced power delivery. The ESC’s fully waterproof and dust-proof construction ensures reliable performance in all weather conditions and rugged environments.

This ESC includes an efficient switch-mode BEC delivering 6V at 4A to power the receiver and servos reliably. It supports a wide voltage range from 2 to 4S LiPo or 5 to 12S NiMH battery packs. With 15 programmable parameters, users can fine-tune settings such as drag brake rate, brake force, acceleration punch, and PWM frequency for optimal throttle response and braking performance tailored to different vehicles and terrains. Advanced DEO/freewheeling technology enhances throttle linearity and driving feel, while multiple protections like low voltage cutoff, thermal shutdown, and throttle signal loss safety add reliability.

The ESC also features a dedicated programming port for quick configuration via a LED program card, maximizing customization convenience. Its compact dimensions and lightweight design with copper heat conductors ensure efficient heat dissipation for sustained high-current performance. Overall, the QuicRun WP-880 Dual Brushed ESC is a high-performance, durable ESC tailored for demanding dual-motor RC applications.

Specification:

• Continuous/Peak Current: 80A / 400A.

• Input Voltage: 2–4S LiPo or 5–12S NiMH battery packs.

• BEC Output: 6V @ 4A (switch mode).

• Supported Motor Types: Dual brushed motors (540, 550, 775 size).

• Motor Limits:

  • 2S LiPo: ≥12T (540/550)

  • 3S LiPo: ≥18T (540/550)

  • 4S LiPo: ≥24T (540/550).

• Programmable Features: 15 customizable parameters, including adjustable drag brake, brake force, acceleration, and PWM frequency.

• Protection: Low-voltage cutoff, thermal protection, throttle signal loss protection.

• Waterproof and Dustproof: Designed for all-weather use.

• Dimensions: 45.9 × 34.7 × 26.5 mm.

• Weight: 75 g.

• Connectors: Output: 4.0 mm female bullet; Input: none.

• Programming Port: Separate PRG/FAN port for easy programming and cooling fan connection.
