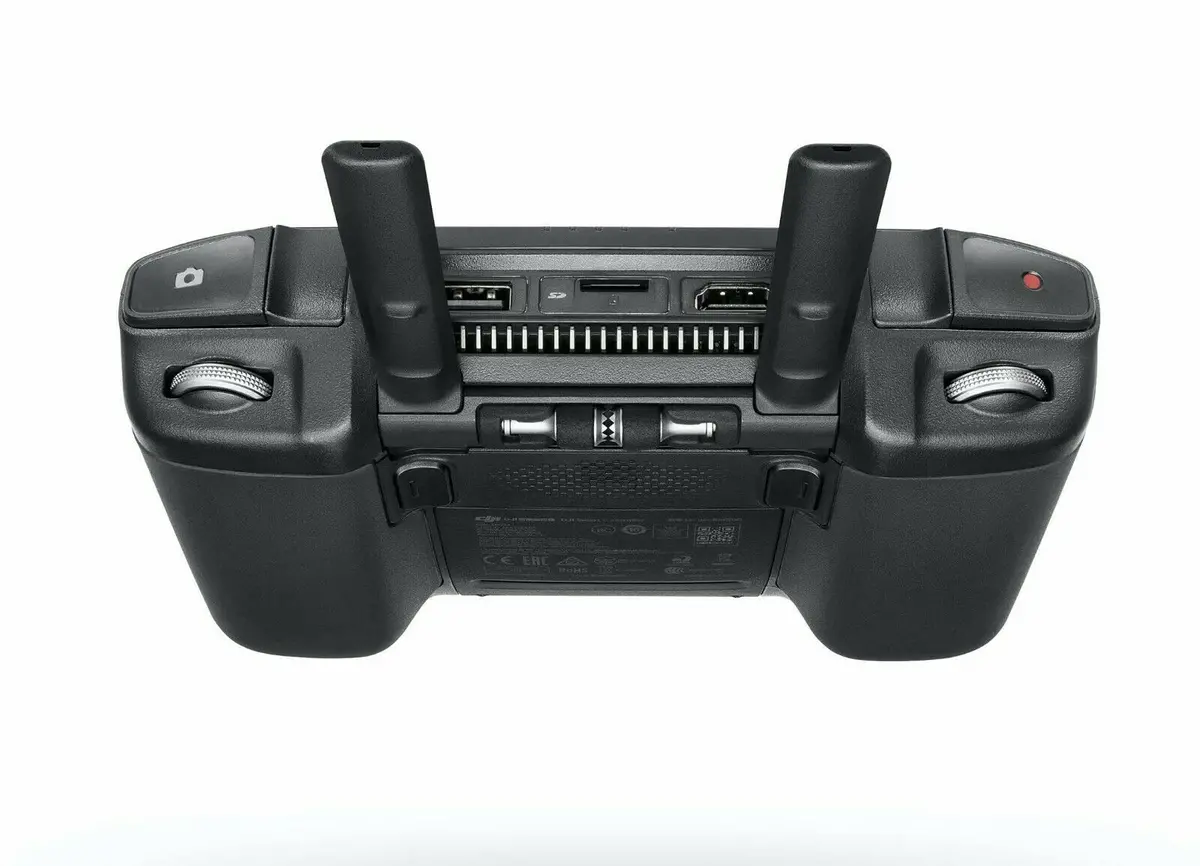

DJI Smart Remote Controller – HDMI Output Support for Real-Time Monitoring

Description

• Battery 18650 Li-ion (5000 mAh @ 7.2 V)

• Charge Type Supports USB power adapters rated 12 V/2 A

• Rated Power 15 W

• Storage Capacity ROM 16 GB + scalable (microSD)

• Charging Time 2 hours (using a USB power adapter rated 12 V/2 A)

• Working Time 2.5 hours

• Video Output Port HDMI Port

• Power Supply Current / Voltage (USB-A port) 5 V/ 900 mA

• Operation Temperature Range -4° to 104° F (-20° to 40° C)

• Storage Temperature Range
  • <1 month: -22° to 140° F (-30° to 60° C)
  • 1-3 months: -22° to 113° F (-30° to 45° C)
  • 3-6 months: -22° to 95° F (-30° to 35° C)
  • >6 months: -22° to 77° F (-30° to 25° C)
• Charging Temperature Range 41° to 104° F (5° to 40° C)

• GNSS GPS+GLONASS

The DJI Smart Controller is designed to maximize your outdoor flying experience with the Mavic 2 or other aircraft equipped with OcuSync 2.0.

A 5.5-inch built-in screen displays clear, bright images, even under challenging conditions. Intuitive controls and pre-installed features like SkyTalk and the DJI GO 4 App, DJI Fly App get you up in the air quicker, clearer, and more conveniently than ever before.

Compatible with DJI Air 2S, Mavic Air 2, Mavic 2 Zoom, Mavic 2 Pro, Mavic 2 Enterprise Series, Mavic 2 Enterprise Advanced, and Phantom 4 Pro V2.0.

Specs

OcuSync 2.0

• Operation Frequency Range

2.400-2.4835 GHz, 5.725-5.850 GHz

• Max Transmission Distance (unobstructed, free of interference)

10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

• Transmitter Power (EIRP)

2.400-2.4835 GHz:
25.5 dBm (FCC), 18.5 dBm (CE), 19 dBm (SRRC), 18.5 dBm (MIC)
5.725-5.850 GHz:
25.5 dBm (FCC), 12.5 dBm (CE), 18.5 dBm (SRRC)

Wi-Fi

• Protocol

Wi-Fi Direct, Wireless Display, 802.11a/g/n/ac, Wi-Fi with 2×2 MIMO is supported

• Operation Frequency Range

2.400-2.4835 GHz, 5.150-5.250 GHz
5.725-5.850 GHz

• Transmitter Power (EIRP)

2.400-2.4835 GHz: 21.5 dBm (FCC), 18.5 dBm (CE)
18.5 dBm (SRRC), 20.5 dBm (MIC)
5.150-5.250 GHz:    19 dBm (FCC), 19 dBm (CE)
19 dBm (SRRC), 19 dBm (MIC)
5.725-5.850 GHz:    21 dBm (FCC), 13 dBm (CE), 21 dBm (SRRC)

Bluetooth

• Protocol Bluetooth 4.2
• Operation Frequency Range 2.400-2.4835 GHz
• Transmitter Power (EIRP) 4 dBm (FCC), 4 dBm (CE), 4 dBm (SRRC), 4 dBm (MIC)

Dimensions

• 5 x 121.3 x 40 mm (antennas folded, and the control sticks unmounted)
• 177.5 x 181 x 60 mm (antennas unfolded, and the control sticks mounted)
• Weight 630 g
• Model RM500
