Description

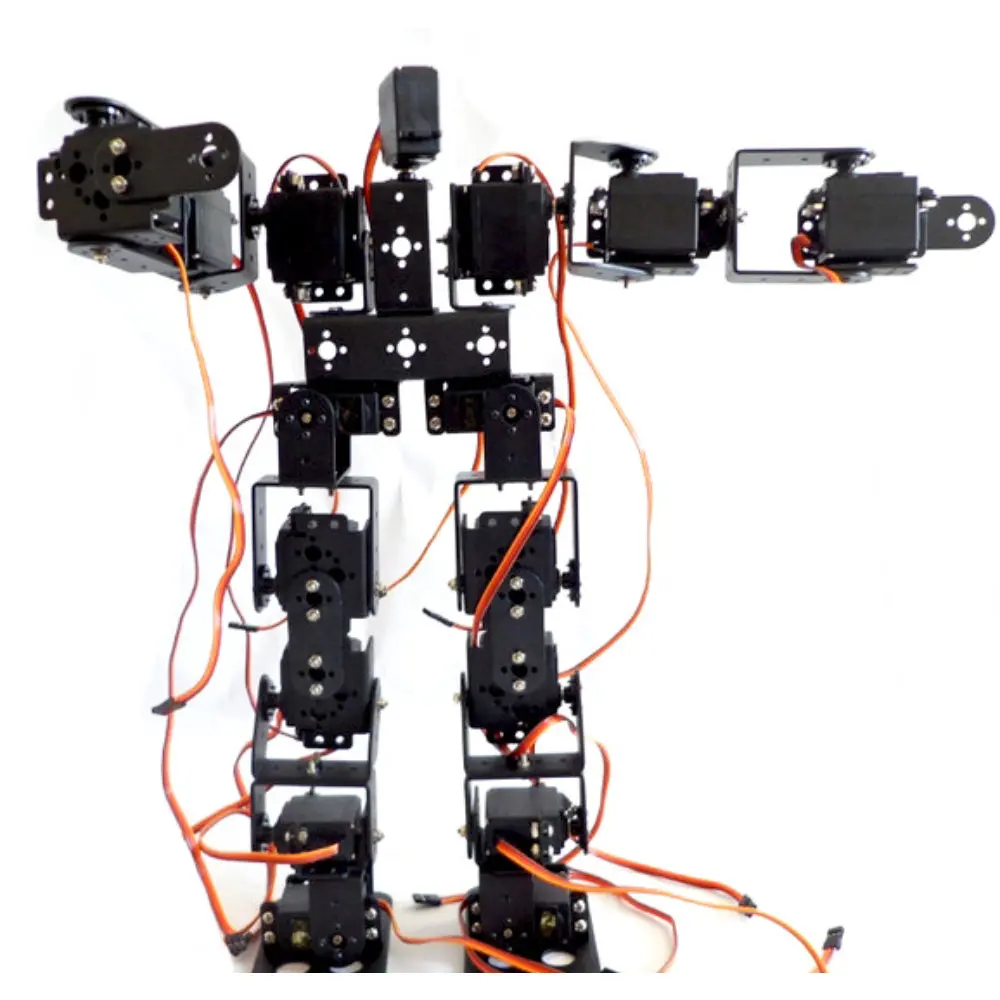

Humanoid robots have advantages over wheel robotic platforms. They can operate on rough surfaces and are better suitable to human environments. However, building a humanoid is tough and time-consuming. This kit includes all the mechanical parts required to build a 17DOF Humanoid. Just add your Servo, controller and battery to this kit to build a humanoid. Add your own Arduino, ESP32, or Raspberry Pi Controller with a Motor driver and start controlling your humanoid.
Specifications
- Color: Silver
- Model number: 17 Degree of Freedom
- Size: 40cm(H)* 23cm(W)
- Materials: Aluminum
Features
- Cost-effective and easy-to-use
- For hobbyists, robot competition kids Humanoid robot
- Arches punching, corner-cutting
17 Degrees of Freedom
- 1DOF of the head
- 4DOF of the arm
- 2DOF of the shoulder
- 2DOF of the hip
- 6DOF of the legs
- 2DOF of the feet
Note:
- Battery not included with the kit
- The Servo motor is not included in the kit
- This is an unassembled DIY kit
- The Servo Controller is not included in the kit
General Package List:
- 12 x Multifunctional bracket
- 4 x Long U-shaped bracket
- 7 x Short U-shaped bracket
- 4 x Inclined U-shaped bracket
- 4 x L-shaped bracket
- 1 x U beam support
- 2 x Robot Bigfoot
- 4 x Straight bracket
- 14 x Bearing
- 1 x Screws set
Optional:- 17 x MG995/996/946 Servo Motors (Purchase Separately)
Please note:
This is an Unassembled Robot kit and requires self assembly. Servos are not included. If you require customization for high torque servo options please contact us before placing the order. We can customize it as per your request.
Please Note: Images are for representation only. The actual Product may differ slightly in appearance.
