Description
D2216 500KV 12-16V has high-quality bearings, with complete waterproofing, runs more efficiently, can reach a depth of 300 meters, and can work underwater stably for a long time and in outdoor rain. Applicable to Remotely operated vehicles (ROV) like underwater Robots electric floating plates and motors use electronic commutation, so brushless motor operation needs to adapt to the motor voltage DC power supply, driver (ESC), and speed control signal.
Specification:
- Model: 2216
- Kv: 500
- Voltage: 12
- Load Current: 7.3
- No Load Current: 0.3
- No Load Speed: 6100
- Power: 87 w
- Direction: CW
- Lipo Cell: 12-16v
- Thrust: 1.2kg @ 8A
- High Speed: 6000
- Waterproof depth: 300m
- Material: Metal, ABS
- Dimension(DxH):28×38.5mm
- Color: Black and Blue
ESC:
- Current Rating: 40A
- Operating Voltage: 12V-24V
- Lipo Cell:2-4S
Propeller Blade:
- Material: ABS.
- Color: Blue
- Height: Approx. 30mm / 1.2in
- Inner Diameter: Approx. 28mm / 1.1in
- Outer diameter: Approx. 60mm / 2.4in
- Diameter: Approx. 60mm / 2.4in
- Fixing screw: M3 x 2
Applications:
- Subsurface equipment
- Underwater blade thruster
- ROV underwater robot
- Electric surfboard
Electric trawler
Package Includes:

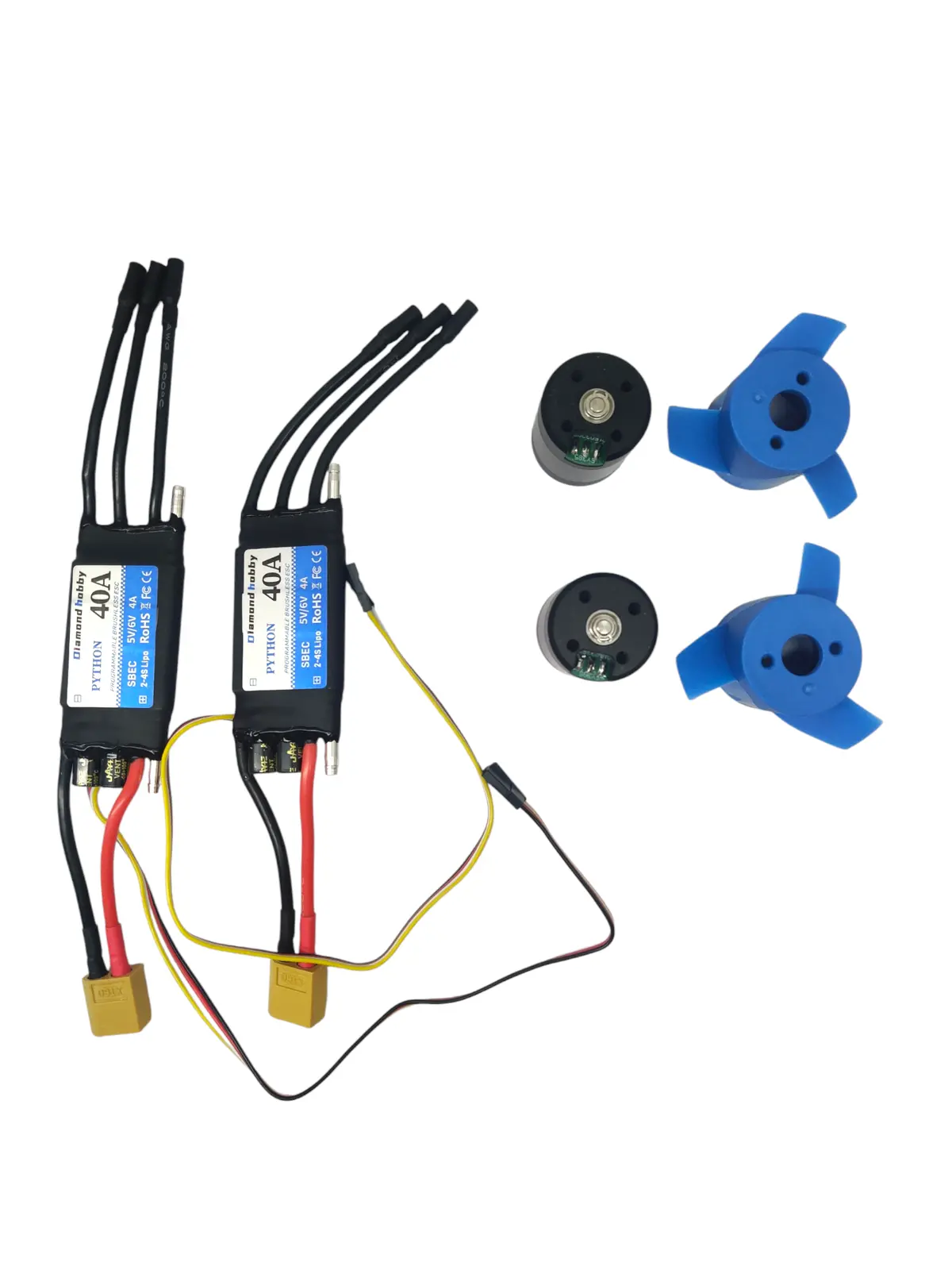

1 X 2216 500KV Waterproof Thruster With 60mm Propeller RC Boat Motor CW With 40A ESC
1 X 2216 500KV Waterproof Thruster With 60mm Propeller RC Boat Motor CCW With 40A ESC
