Description
- Brand new and high quality
- Included USB transceiver, without external circuit device
- With 3.3V and 5V dual power output
- Meets the USB2.0 specification requirements
- The supported data format is 8 data bits, 1 stop bit and parity bits

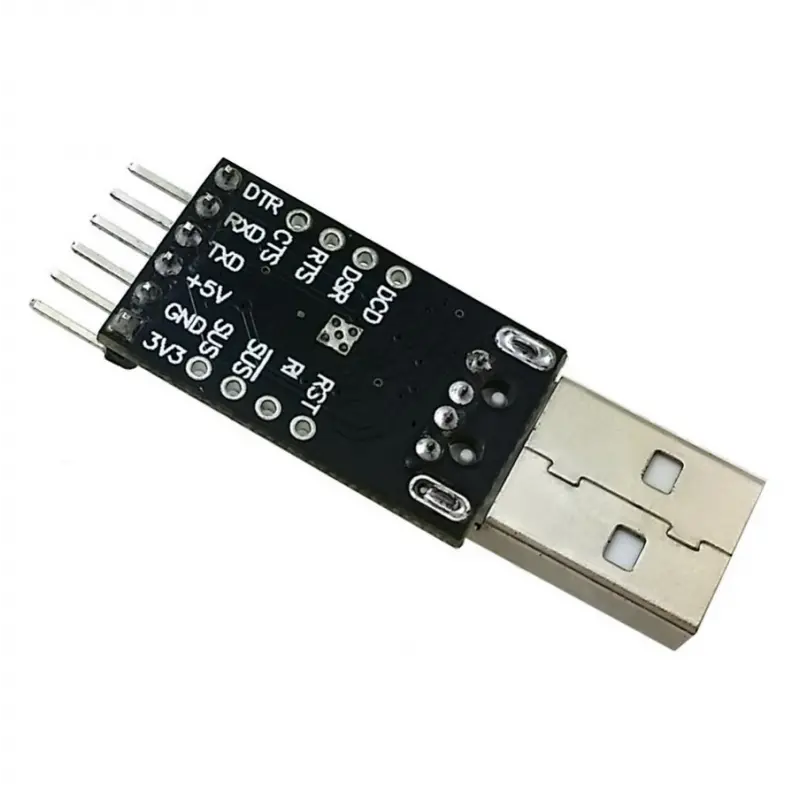

This is the CP2102(6-pin) USB 2.0 to TTL UART serial converter module. This is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB bus and will appear as a standard COM port.
ThisCP2102 doesn’t require any external oscillator, it onboard-board voltage regulator, and it even uses a reprogrammable internal EEPROM for the device description. The full hardware UART has flow control for baud rates from 300bps to 921600bps.
Supported operating systems:
- Windows 98/Me/2000/7
- MAC OS-9
- MAC OS
- X-Windows CE
- Linux 2.40 or later
Features :
- Brand new and high quality
- Included USB transceiver, without external circuit device
- Includes a clock circuit and power-on reset circuit
- With 3.3V and 5V dual power output
- Meet the USB2.0 specification requirements
- SUSPEND pin supports USB suspend state
- With reset signal output, etc. directly to the Arduino board Promini download!
- The supported data format is 8 data bits, 1 stop bit and parity bits
- Connotation 512 byte receive buffer and 512 bytes transmit buffer
- Supports hardware handshaking or X-ON/X-OFF
