CHT1230 Red Laser Module – 650nm, 5mW Straight-Line Alignment Tool

Description

1. Laser Output Type: Red Straight LINE Laser
2. Weight: 15 gm.
3. Wavelength: 650nm
4. Voltage: 3~12V
5. Output Power: Min 2.5mW, Typical 3.0mW, Max 5.0mW
6. Working current: Min 10mA, Typical 20mA, Max 25mA
7. Working voltage: Min 2.3VDC, Typical 4.5VDC, Max 8.0VDC

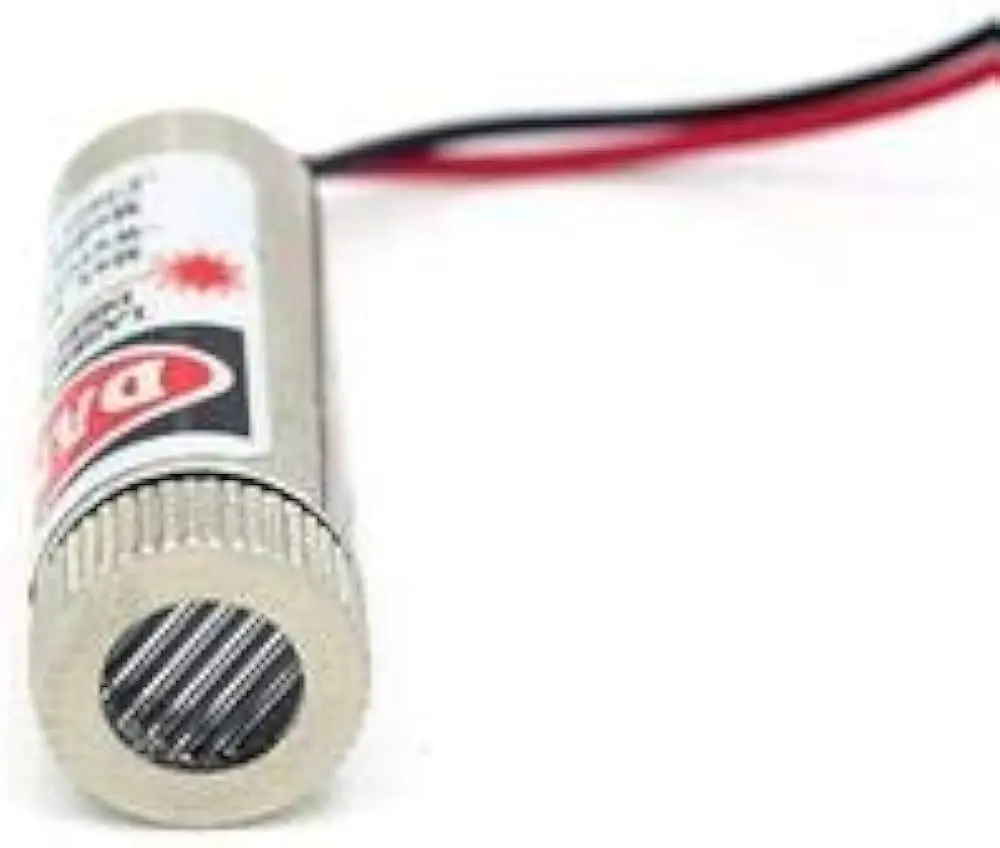

This is CHT1230 6mm 650nm 5mW Red Straight Line Laser Module with the adjustable focus point. Easy to install, Durable and portable. laser emission head For Ciclop Scanner 3D printer Components Points Spot Size Adjustable.. It can be used to connect diode tubes for multiple uses.

This Laser diode module is very efficient and useful for your electronic projects. For example, with this product, you can make a laser radiation sensor and with the use of an Arduino development board, you can create your own laser harp. Simply connect power to the red and black wires and you will be lasing in no time.

Note : SYD1230 on module working remains same.

Note:

1. It does not emit the RED-SPOT since it is a Straight line laser module.
2. Please use the DC power supply 3~12V.
3. Careful! This laser module has high output power, please wear goggles when testing or using as it can be hazardous to your vision.
4. The laser beam must not be directed towards the eyes of a person or an animal in any way.
5. The red cord is an anode, the black cord is a cathode.

Features :

1. Practical test for point head: reflection visible to random target >1000m
2. Focus line’s Intensity can be adjusted with the help of lens ring head

Package Includes :

1 x Straight Line Laser Module CHT1230 6mm 650nm 5mW Red
