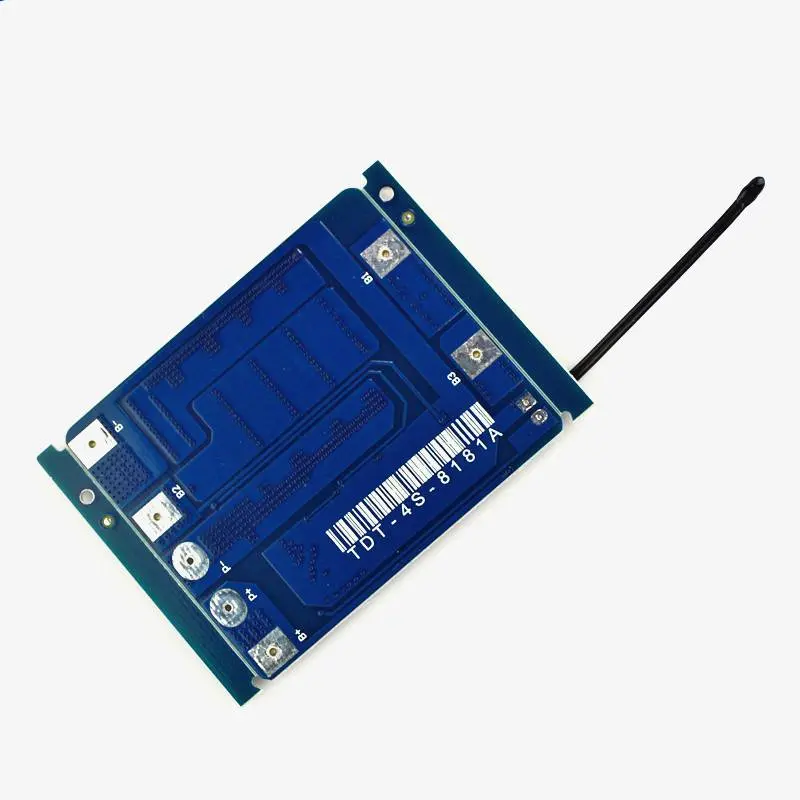

BMS 4S 20A LiFePO4 Battery Management System – 12.8V with Nickel Busbar Strips

Description

1. Over Charge Protect. (V): 14.6
2. Over Discharge Protect. (V): 9.28
3. Discharge Current: 20 continuous
4. Discharge Current for 10sec: 60, max

Specifications:

• Item Type:    Battery Management System
• Voltage Rating (V):    12.8
• Current Rating (A):    20
• Battery Cell Composition:    4S
• OverCharge Protect. (V)    14.6
• OverDischarge Protect. (V)    9.28
• Discharge Current:    20 continuous
• Discharge Current for 10sec    60, max
• Charge Protection (°C)    0℃～+50℃
• Discharge Protection (°C)    65℃～+75℃

The TDT LiFePO4 LFP 4S 12.8V 20A Battery Management System With Nickel Strip is a state-of-the-art battery management solution tailored for 4-series LiFePO4 battery packs. With its nominal voltage of 12.8V and capability to handle up to 20A of continuous current, this BMS is ideal for applications demanding higher power and efficiency, including advanced energy storage systems, high-performance electric vehicles, and robust backup power solutions.
