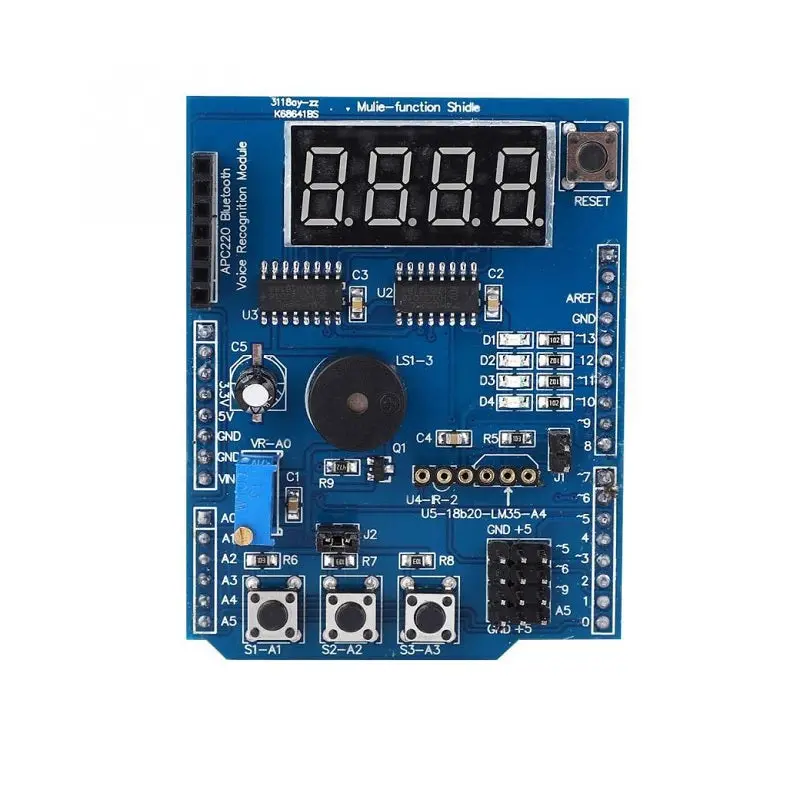

APC220 Bluetooth Voice Recognition Expansion Shield – Multi-Function Dev Board

Description

• Multi-function Shield
• 10K adjustable precision potentiometer
• Piezo Buzzer
• DS18B20 temperature sensor interface
• LM35 temperature sensor interface
• Infrared receiver interface

Multifunction Shield For Arduino Uno / Leonardo

This Multifunction Shield For Arduino Uno / Leonardo is all in one shield for beginner users of the Arduino Development Board. This Arduino Uno and Leonardo compatible multifunction experimenter shield (HCARDU0085) has a large range of features which makes it ideal for beginners who just want to experiment and learn, or just as a general-purpose shield for more advanced uses.  Multifunction Shield For Arduino Shield, Screw Shield, Expansion Board, Multifunctional Shield, and Mulie-Function Shidle,rMultiFuncShield.

Features:

• 4 digit 7-segment LED display module driven by two serial 74HC595’s
• 4 x surface mount LED’s in a parallel configuration
• 10K adjustable precision potentiometer
• 3 x Independent push buttons
• Piezo buzzer
• DS18B20 temperature sensor interface
• LM35 temperature sensor interface
• Infrared receiver interface
• Serial interface header for convenient connection to serial modules such as Bluetooth, a wireless interface, voice module, a voice recognition module, etc.

Features/Specs

• Input Supply voltage: 5VDC
• Length: 66 mm
• Width: 53.5 mm
• Height: 21 mm
• Weight: 22 gm

Package Includes:

• 1 x Multifunction Shield For Arduino Uno / Leonardo

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
