Airtec Upgraded Intercooler Kit for Fiat 595 Abarth

Description

TECHNICAL DATA

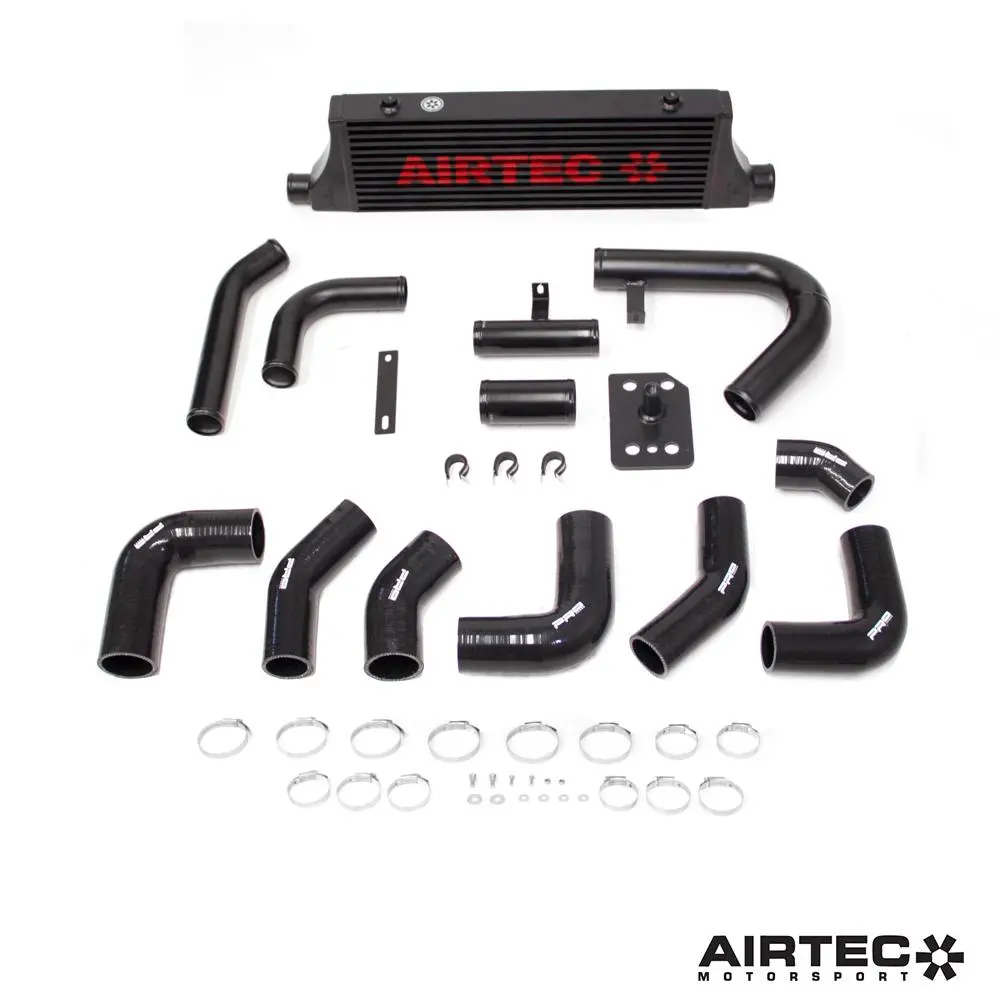

Replaces very restrictive twin intercooler setup and lengthily pipe-work, for Airtec’s high flow 60mm core intercooler and shortened alloy pipe kit, we keep fast Turbo spool up by using 50mm pipe-work into the turbo and 60mm out of the turbo to help match the throttle body, this combination gives fast turbo spool up and maximum power output

Dyno test results – results taken from Fiat 500 Abarth, fitted with cat back exhaust and Airtec FMIC

• Run 1. 120 degree into the intercooler and 22 degree out of the intercooler
• Run 2. 122 degree into the intercooler and 22 degree out of the intercooler
• Run 3. 123 degree into the intercooler and 22 degree out of the intercooler
• Conclusion, the Airtec intercooler dropped the intake temperatures by 100 degree on each run and did not suffer from heat soak.

Features:

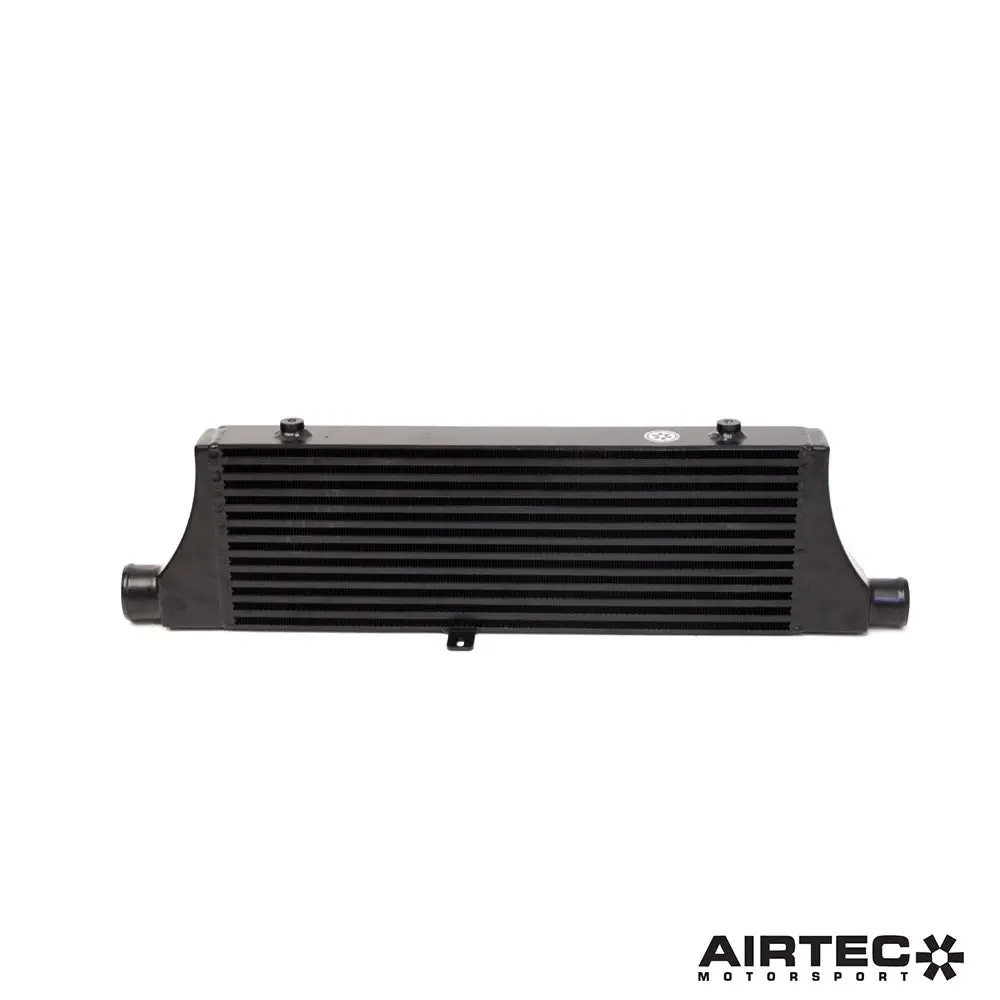

• 60mm thick proven bar and plate core, specced to Airtec design

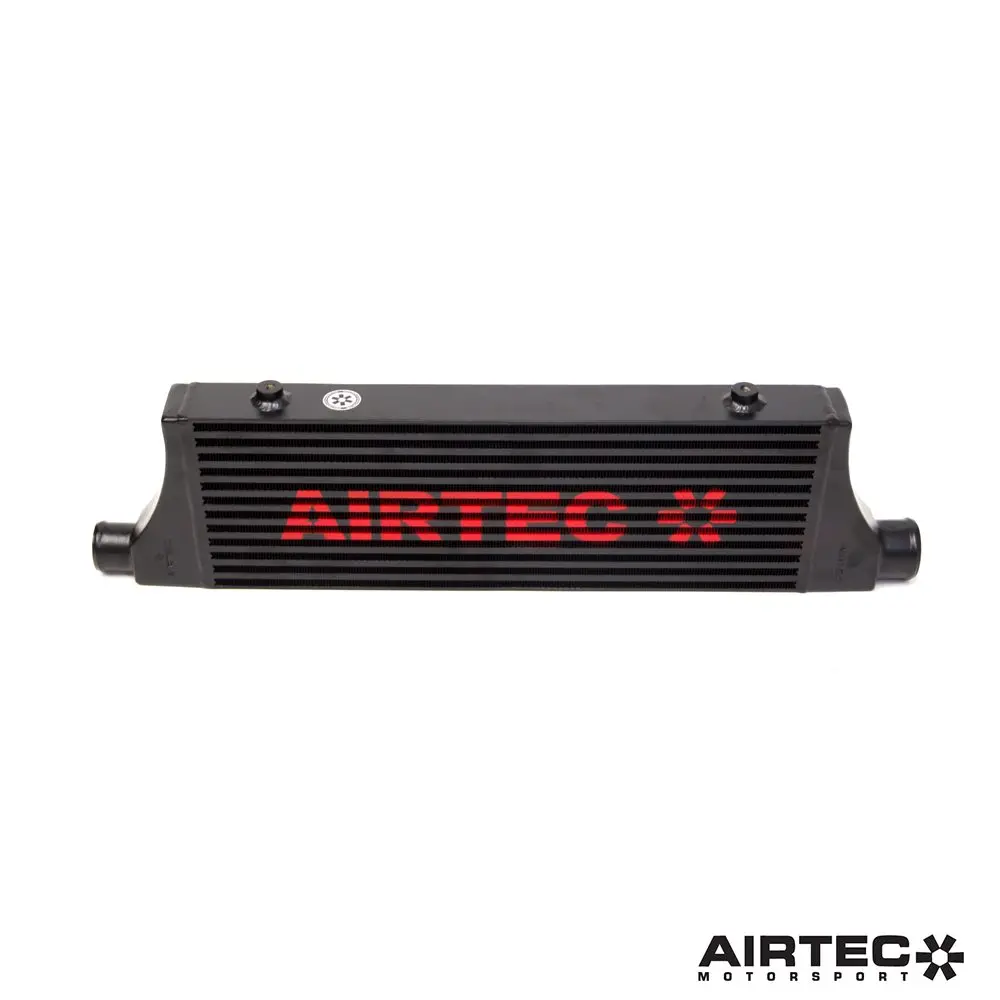

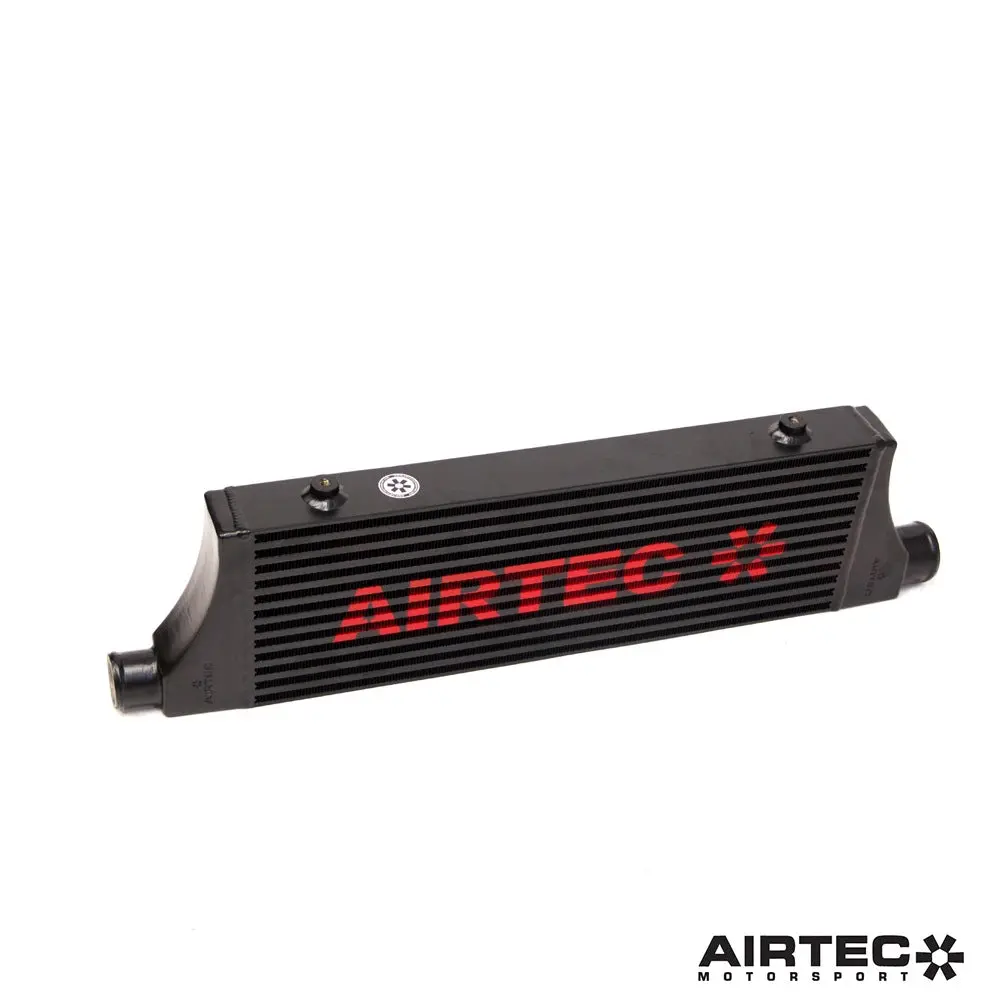

• Airtec logo’d Cast end tanks for improved Airflow and un-beatable strength
• Dyno proven, gain BHP
• Lower intake temps means safer engines ‘FACT’

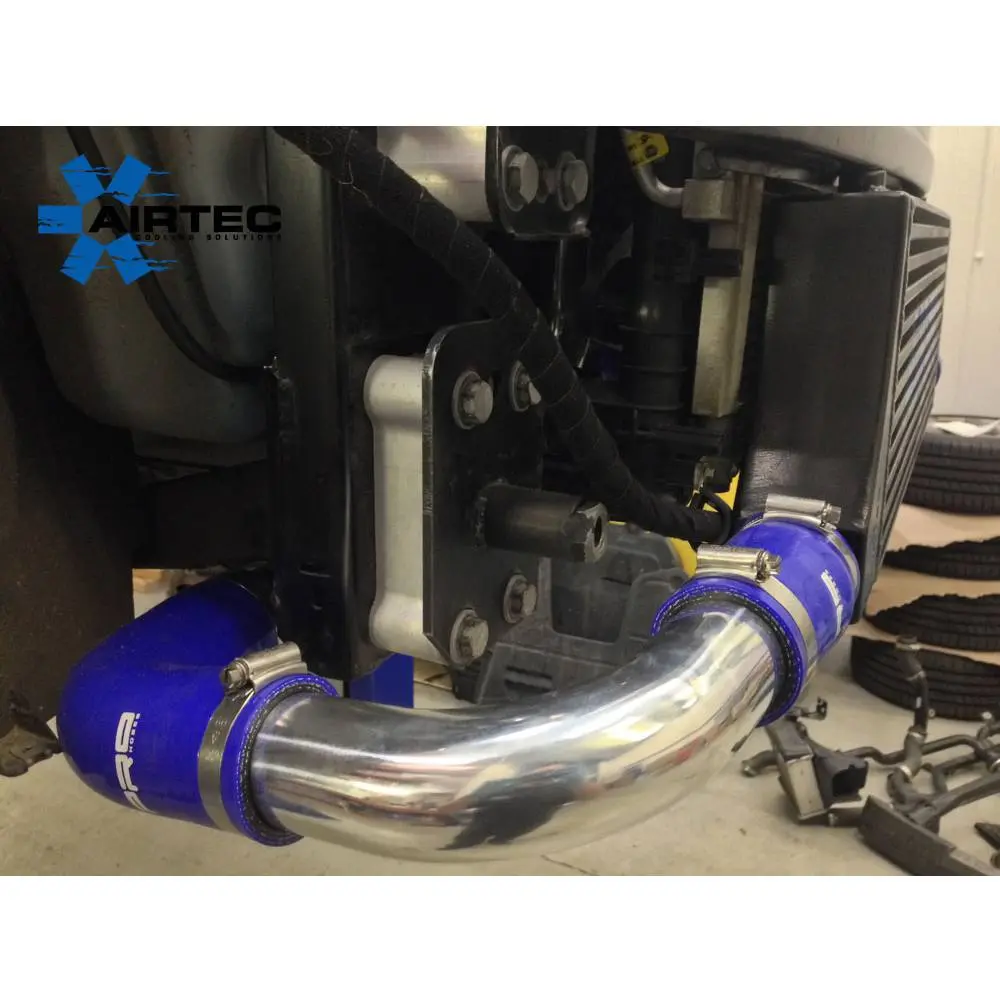

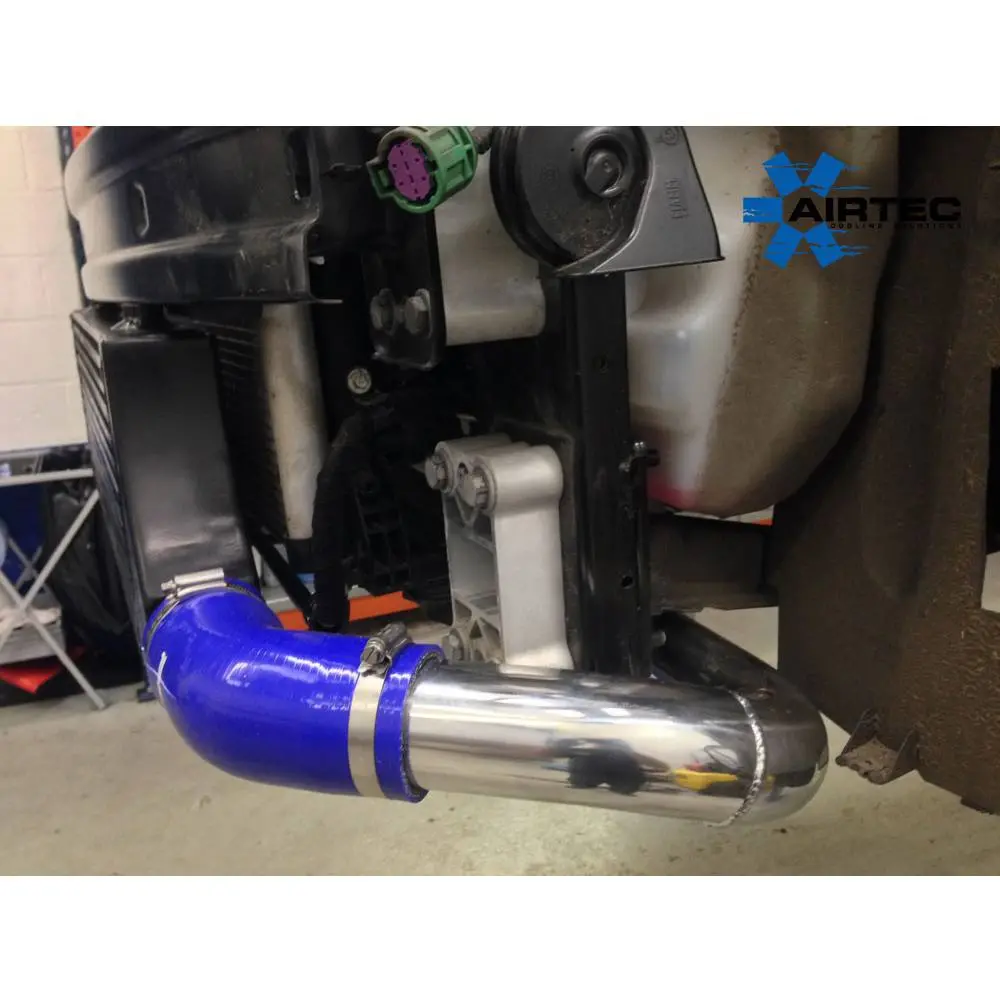

• Shorter charge pipes than standard twin intercooler set-up, short pipes mean fast turbo spool up
• Fitting takes 2-3 hours
• 3 year un-limited mileage warranty
• Available in Pro-Series satin Black
• Airtec Logo available @ no extra charge
• Un-beatable value for money

Will fit any Abarth with Garrett GTI446 Turbo.

Will fit the following:

Series 3 180 Competizione (Mid-Late 2015)

Series 4 Turismo

Series 4 Competizione

Approximate dimensions:

Height – 205mm

Width – 820mm

Thickness – 65mm
