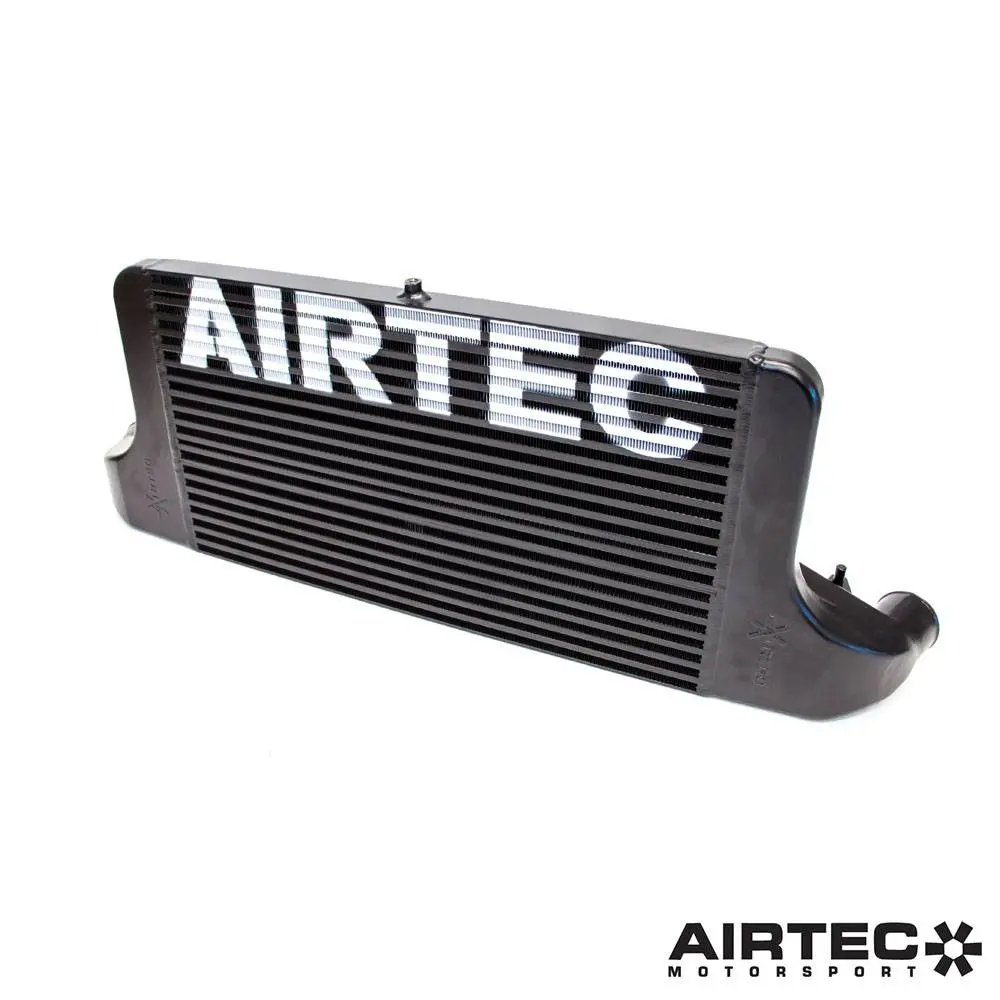

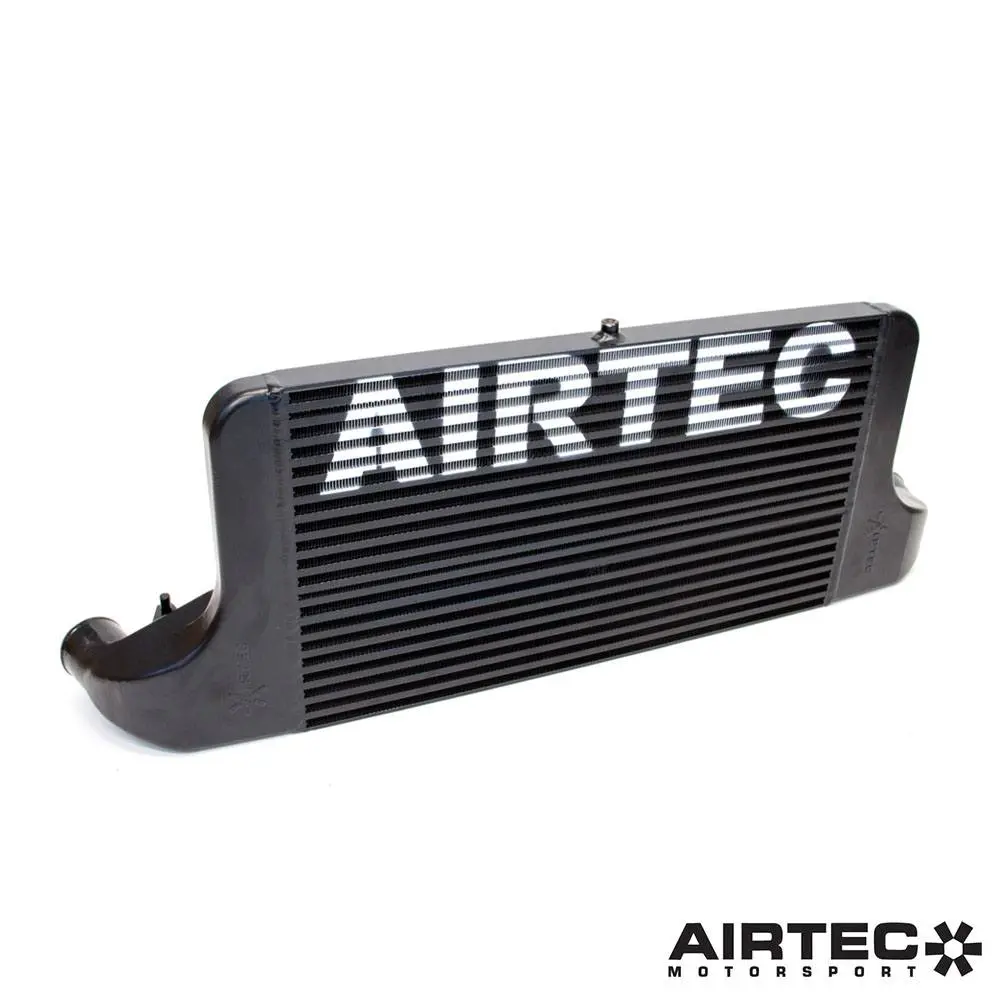

Airtec Stage 3 Intercooler Upgrade for Ford Fiesta ST180

Description

TECHNICAL DATA

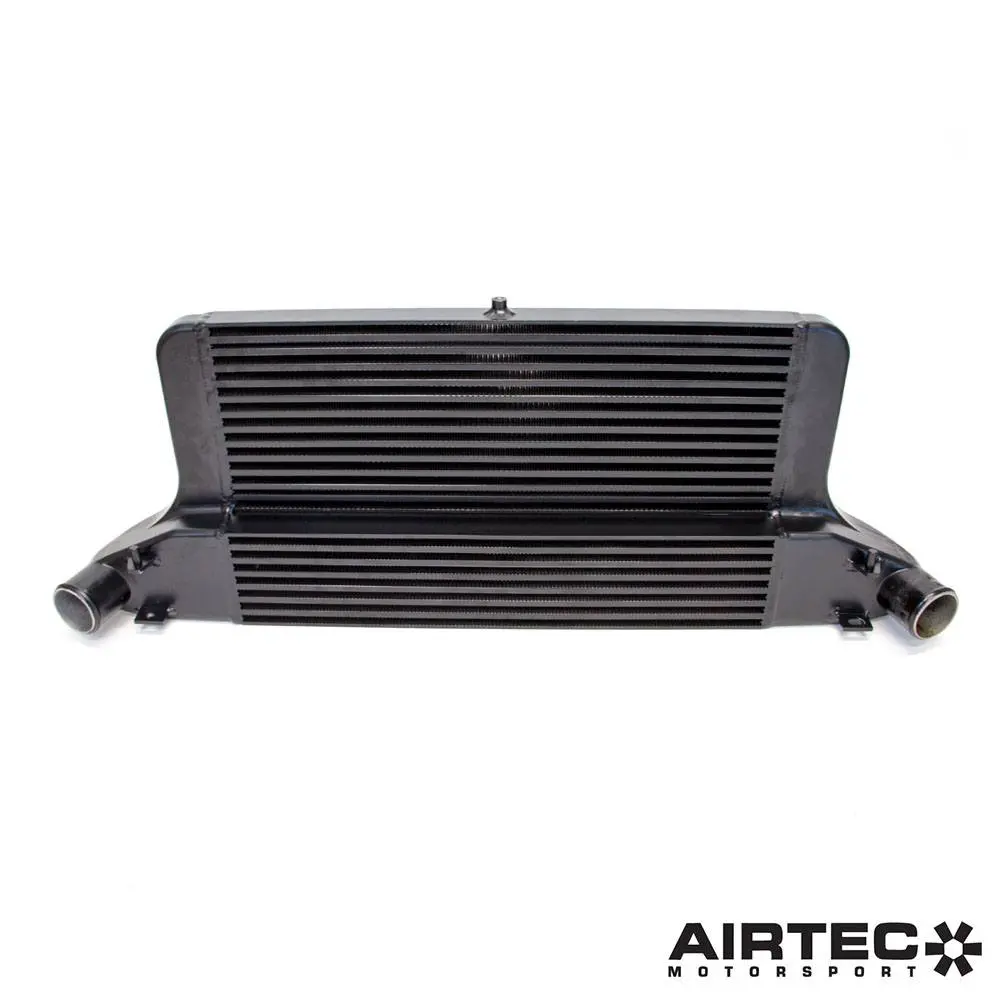

AIRTEC has now taken the intercooler on the ST180 to a whole new level, with the step core design offering a 85mm thick lower section and a 40mm thick upper section ‘The Double Decker’

The intercooler has been designed for cars running hybrid turbos and big turbo conversions where fitted, however still produces fantastic gains on Stage 2 cars

If the ECU sees over 50 degrees it will back power off for engine safety, the AIRTEC intercooler keeps the temps low enough so you keep all your power.

Dimensions:
OEM Intercooler
Width: 690mm

Height: 130mm

Depth: 50mm

Capacity: 4.5 litres

Front area: 900cm²

AIRTEC Motorsport Intercooler

Width: 615mm

Height: 350mm

Depth: 85mm to 40m stepped core

Capacity: 12.1 litres

Front area: 2,150cm²

Will fit Fiesta ST 200

Now only available in Pro-Series Black.

Please note: Due to different crash bar, this will not fit US spec models.

Registered Design Right number: 6023251

AIRTEC Part No: ATINTFO26
