Airtec Stage 1 Front-Mount Intercooler for Mazda 3 MPS Mk1

Description

TECHNICAL DATA

AIRTEC huge front mount intercooler for the Mazda 3 MPS Mk1.

A much needed upgrade for your re-mapped Mazda MPS.

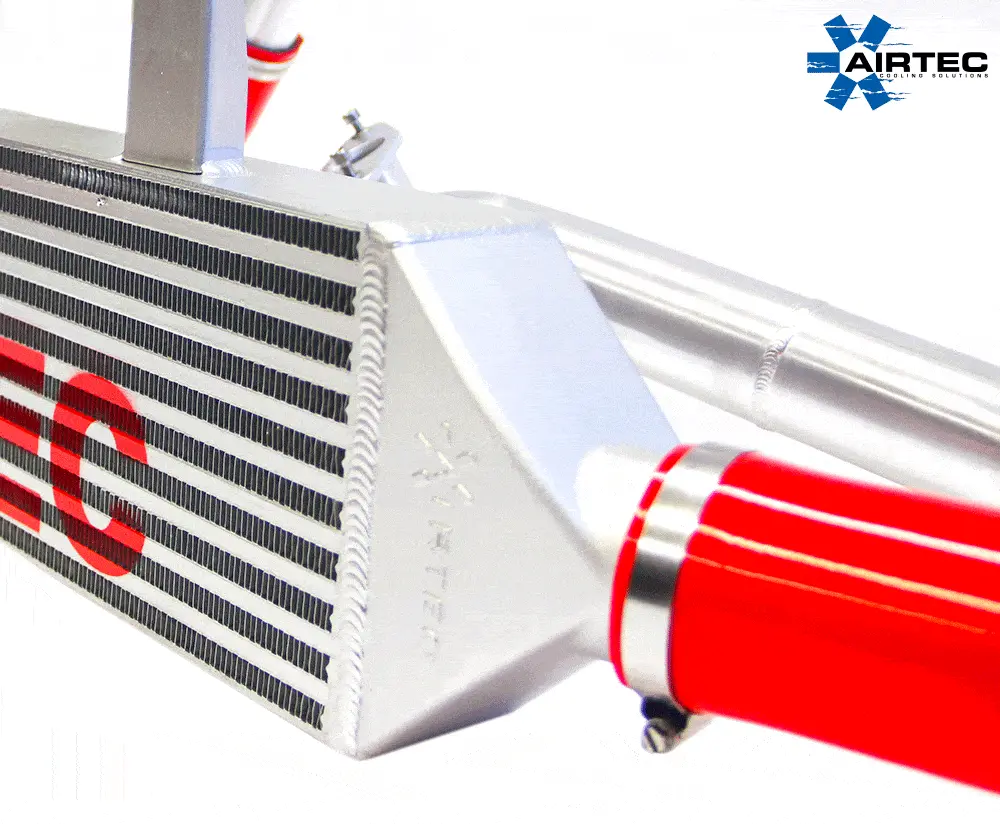

• 70mm core with flowed cast end tanks
• High quality silicone hoses supplied with stainless jubilee clips
• Retains original crash bar and fog lights
• No cutting to bumper needed
• Fitting instructions supplied along with all required fittings
• Proven power increase
• Available in pro series black or natural silver
• AIRTEC 3 year unlimited mileage waranty
• Fitting takes approximately 2-3 hours

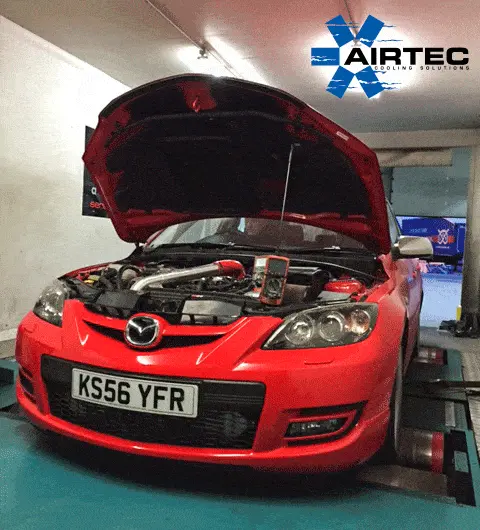

Test results taken on the AIRTEC demo car

Standard top mount intercooler:

Run 1

In – 160.5 degrees

Out – 70.7 degrees

Run 2

In – 160.6 degrees

Out – 70.4 degrees

Run 3

In – 162.1 degrees

Out – 73.9 degrees

AIRTEC Stage 3 intercooler

Run 1

In – 123.7 degrees

Out – 23.8 degrees

Run 2

In – 119.2 degrees

Out – 22.6 degrees

Run 3

In – 120.1 degrees

Out – 22.8 degrees



Approximate Dimensions:

Width – 740mm (not including pipes)

Height – 170mm

Depth – 70mm

NOW AVAILABLE IN PRO-SERIES BLACK ONLY!

Registered Design Right number: 6023247

AIRTEC part number: ATINTMAZ01
