Description

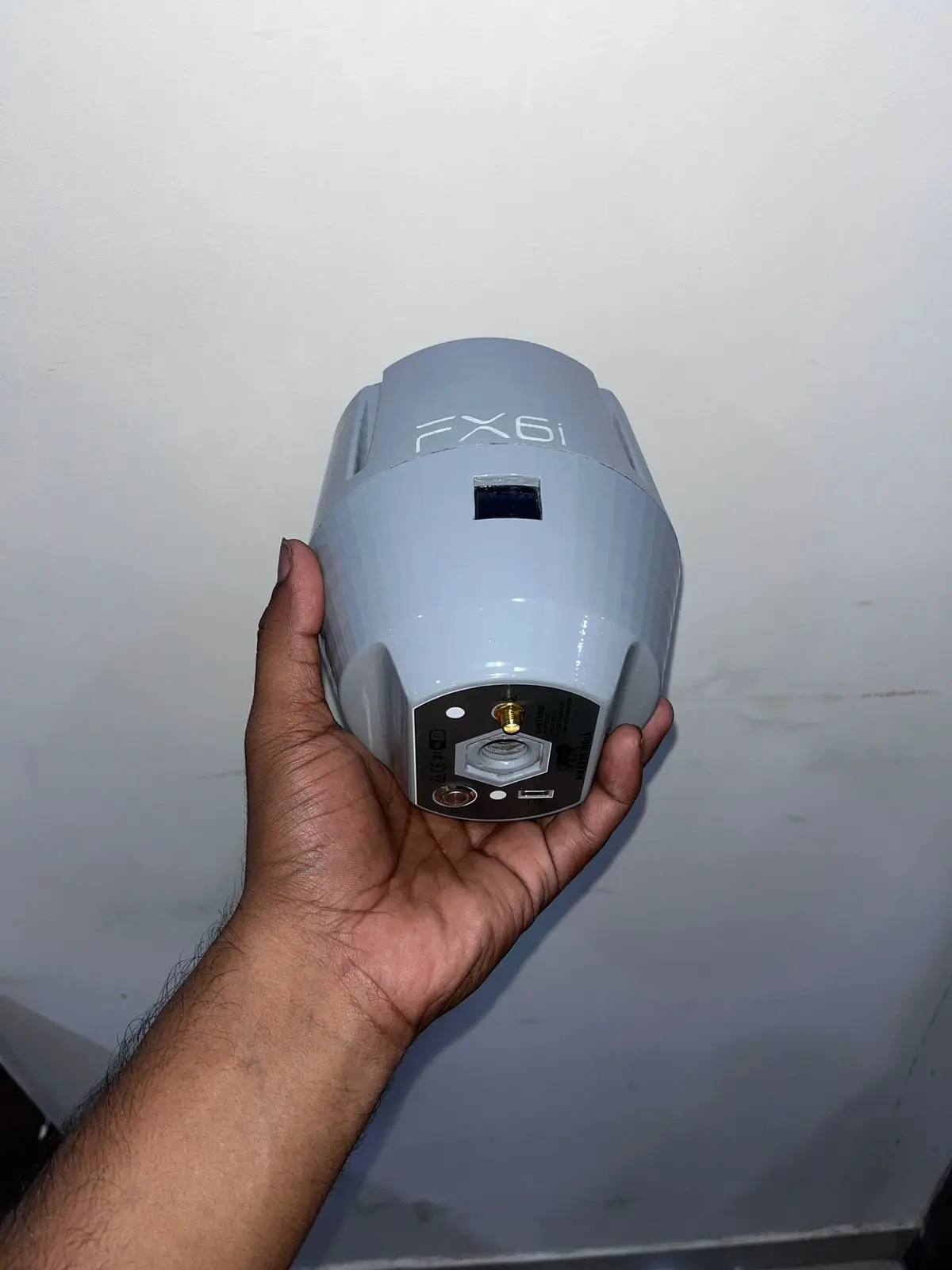

The only RTK receiver you will ever need

Delivering high-precision positioning, data collection, and data processing services to a diverse range of industries.

Features:

Compact size and lightweight

Designed with lightweight and compact features, making them highly portable and easy to use without the need for bulky and cumbersome equipment.

Millimeter accurate data

Intelligent processing techniques include factors such as signal quality, atmospheric interference, and satellite geometry to provide highly accurate and reliable position information

Anyone on the team can use RTK

The interface is designed to be intuitive and easy to navigate with clear and concise instructions. Anyone can use our GNSS receiver without any training.

Specifications:

Mechanical:

• DIMENSIONS: 165 X 100 X 100 mm
• WEIGHT: 450 g
• OPERATING TEMP: -20 to +60 °C
• STORAGE TEMP: -40 to +85 °C
• WATER / DUST PROOF: IP67 rated
• HUMIDITY: 5% – 95% non condensing
• SCREEN: OLED Screen for real time status visibility

Electrical:

• AUTONOMY: Rover Mode: upto 20 hrs | Base Mode: upto 12 hrs
• BATTERY: Li-Ion 6500 mAh, 3.7 V
• CHARGING: USB Type-C, 5V 2A
• CHARGING TIME: Typically 4 hours
• CERTIFICATION: CE

Positioning

• STATIC: Horizontal: 2 mm + 0.5 ppm | Vertical: 6 mm + 1 ppm
• PPK: Horizontal: 4 mm + 0.5 ppm | Vertical: 8 mm + 1 ppm
• RTK: Horizontal: 7 mm + 1 ppm | Vertical: 14 mm + 1 ppm
• NETWORK RTK: Horizontal: 7 mm + 1 ppm | Vertical: 14 mm + 1 ppm

Connectivity

• BLUETOOTH: Bluetooth 5.0
• WIFI: Built-in WIFI for network communications
• PORTS: USB Type C for charging
• NMEA OUTPUT: NMEA 0813 output for compatibility with external devices over Bluetooth
• LORA RADIO: 1 Watt (configurable upto 2 Watts), 433 MHz Frequency
• RADIO RANGE: Urban Area: 5 – 6 Km | Open Area: upto 10 Km

Data

• CSV: Comma Separated Values
• PDF: Portable Document Format
• KML: Keyhole Markup Language
• DXF: Drawing Exchange Format
• SHP: ESRI Shapefile

GNSS

• SIGNAL TRACKING: GPS, GLONASS, BeiDou, Galileo, SBAS, QZSS, NAVIC
• SIGNAL RECEIVED: GPS L1/L2/L5, GLONASS L1/L2/L3, GALILEO E1/E5a/E5b/E6, BDS B1/B2/B3, QZSS L1/L2/L5/L6, SBAS L1/L5, IRNSS L5 L-Band
• NUMBER OF CHANNELS: 1200+ channels
• UPDATE RATE: upto 50 Hz
• MEMORY: 32 GB Internal Memory
• RTK BASELINE: upto 70 Km
• PPK BASELINE: upto 120 Km
• PPK POSITIONING: Any Point on Earth
• IMU POSITIONING: 9 DOF, Calibration Free 60° to 120° tilt compensation in RTK Mode
