Description

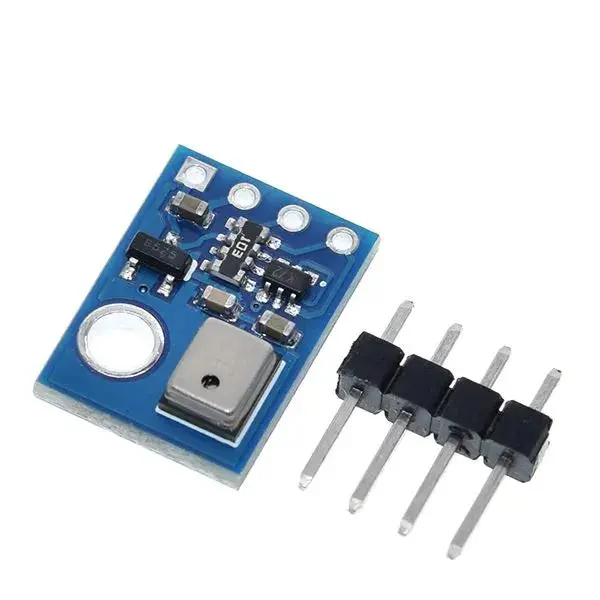

AGS10 is a MEMS TVOC sensor that uses digital I2C signal output. Equipped with dedicated digital module acquisition technology and gas sensing technology, the product has high reliability and excellent long-term stability, while also featuring low power consumption, high sensitivity, fast response, low cost,and simple driving circuit.
Specification
- Working voltage. 3.0-6.0 V
- Typical power: 75mW
- Sampling period:≥2s
- Interface speed: I2C slave mode (≤15kHz)
- Preheating time:≥120s
- Working temperature: 0-50℃
- Working humidity: 0-95% RH
- Service life:>5 years (25 °C, in clean air)
- Output unit: ppb
- Measurement range:0-99999 ppb
- Typical accuracy (25℃/50% RH): 25% reading
- Standard test gas: ethanol
- Module size: 15 .20 * 10. 50mm
