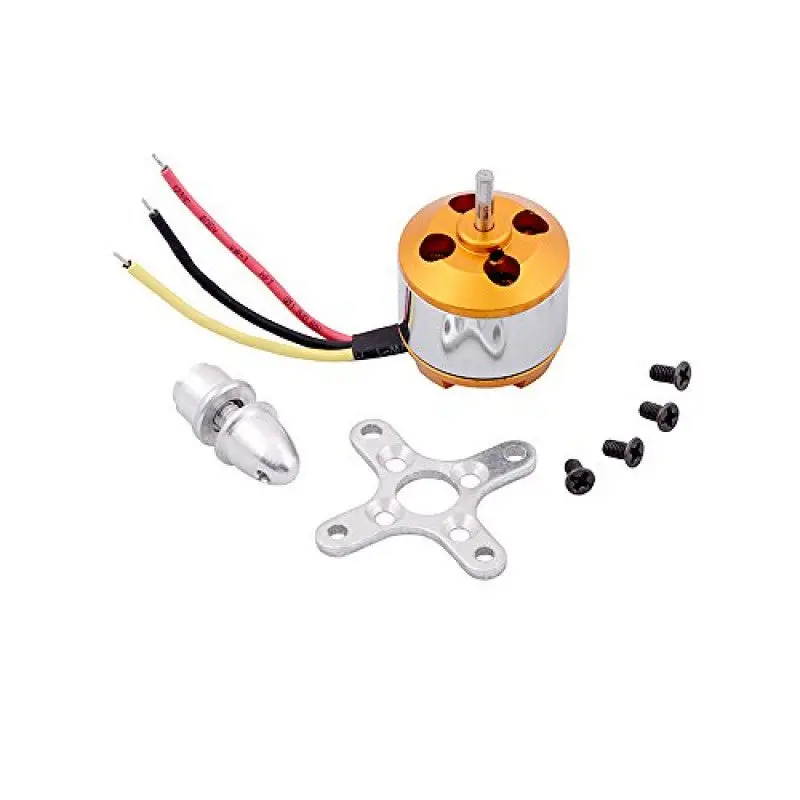

A2212 1800KV Brushless DC Drone Motor with Soldered Bullet Terminals

Description

1. The steel design is capable of withstanding competitional conditions.
2. Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
3. Compact size.
4. Offers great performance and value for money.
5. Smooth throttle response for best RC experience.

This 1800kv brushless motor is equipped with the solid metal case which makes it reliable and durable. This A2212 10T or 13T Motor comes with the pre-soldered good quality connector for a fast and direct connection between ESC and the motor.

A2212 is a brushless out runner dc motor specifically made to power Quadcopters and Multi rotors. It is a 1800kV motor. It provides high performance, super power and brilliant efficiency. These motors are perfect for medium size quadcopters with 8 inch to 10 inch propellers. Use this to build powerful and efficient quadcopters.

Perfect with our F450 quadcopter frame. Our 30A ESCs can be used to drive the motor.

• KV: 1800

• No load Current : 10 V : 0.5 A.

• Current Capacity: 12A/60s

• No Load Current @ 10V: 0.5A

• No. Of Cells: 2-3 Li-Poly

• Motor Dimensions: 27.5 x 30mm

• Shaft Diameter: 934;3.17mm

• Shaft diameter : 3.175mm.

• Minimum ESC Specification: 18A (30A Suggested)

• Thrust @ 3S with 1045 propeller: 1000gms approx

• Thrust @ 3S with 0945 propeller: 650gms approx

• Thrust @ 3S with 0845 propeller: 550gms approx
