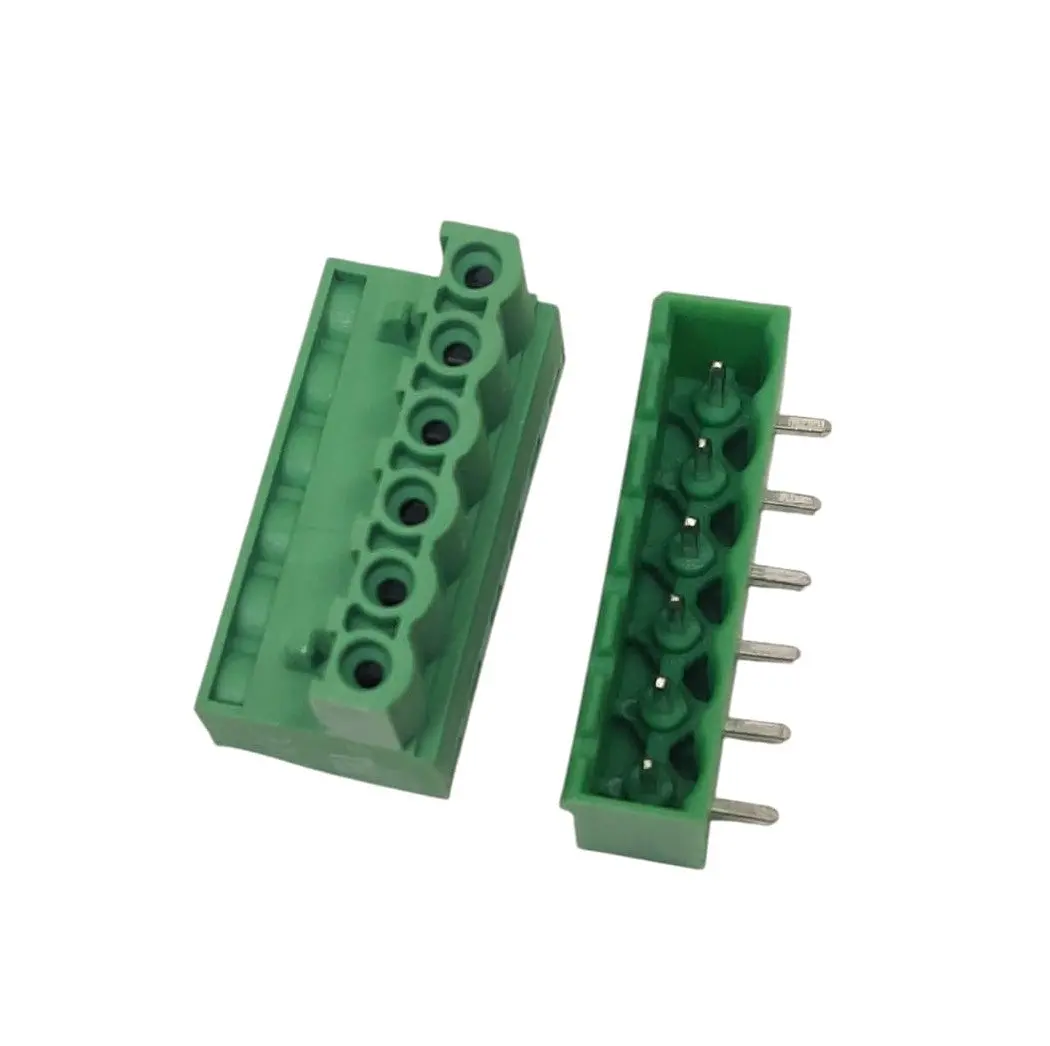

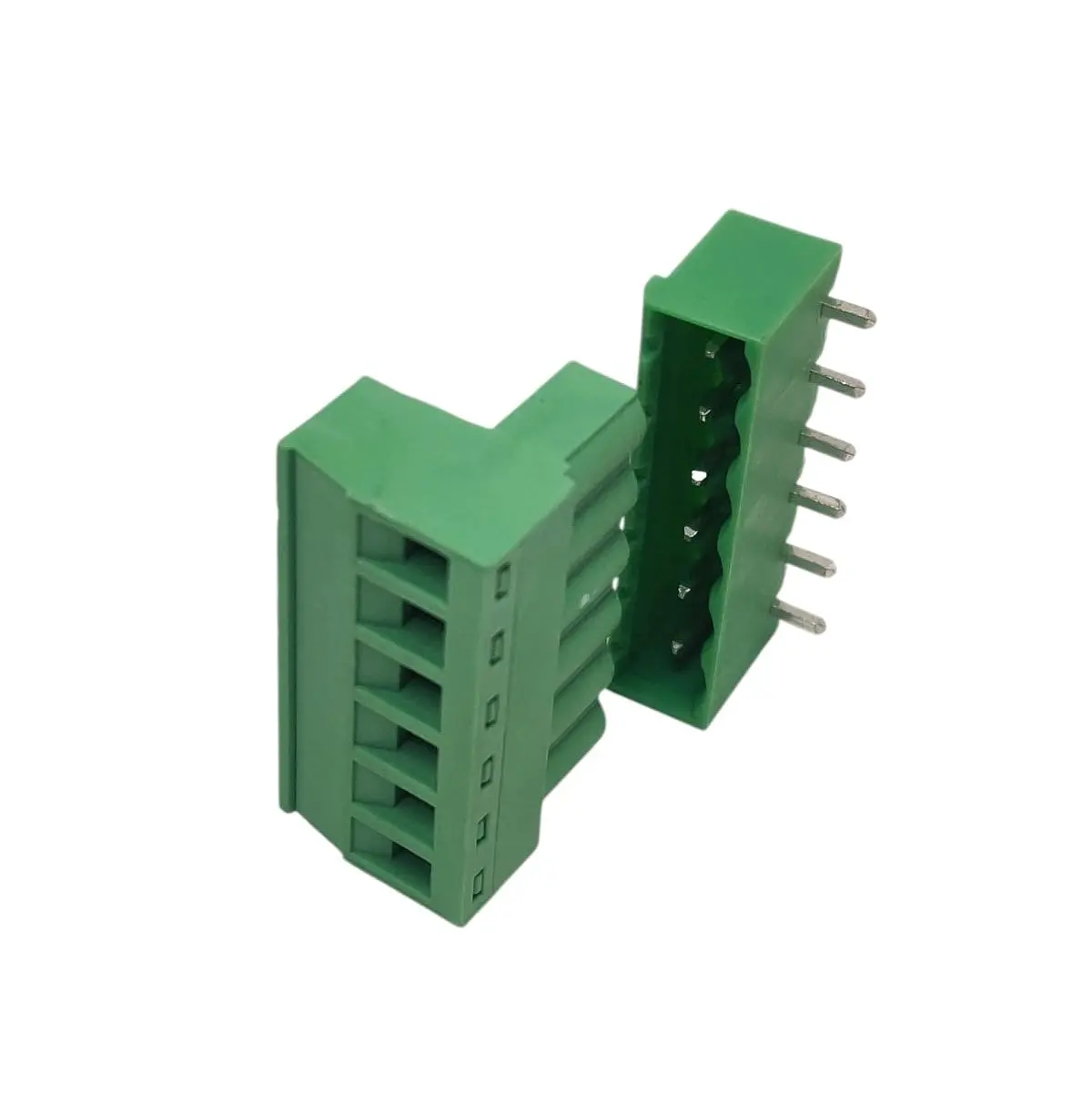

6-Pin Screw Terminal Block – Male/Female Plug-In Connector Set in Flame-Retardant PBT

Description

6 Pin Pluggable Screw Terminal Block Connector – Right Angle – 5.08mm Pitch,Standard plug in type screw terminal block with right angle PCB mount male connector,Universal connection for all conductor types.

Specification:

• Maximum rated voltage – 300V
• Maximum rated current – 15A
• Pin spacing – 5.08mm
• Wire gauge – 28-12AWG
• Soldering Temperature – +250℃ for 5seconds
• Insulation – 5000MΩ/1000V

Package Includes:

1x Set of Male + Female Connector (Total 2 units)
