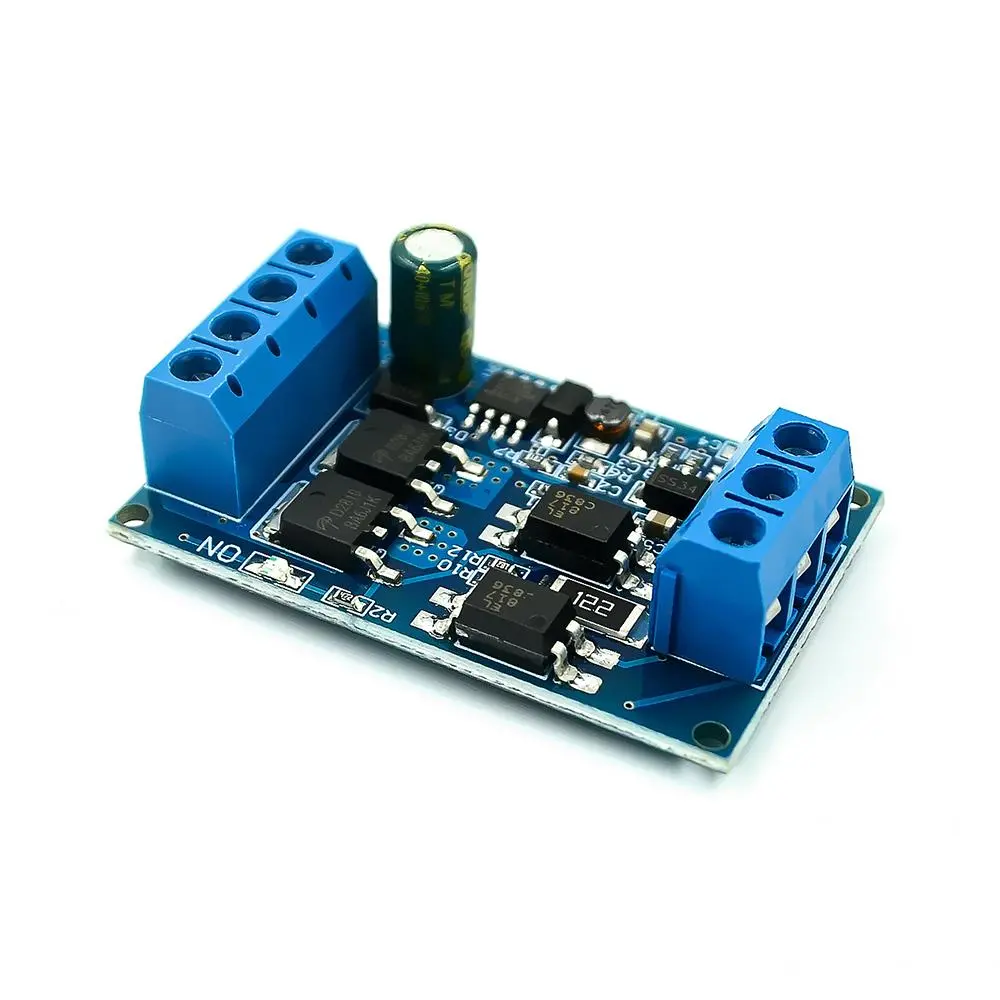

4–60V 10A High-Power MOSFET Switch Module with PWM & Logic-Level Trigger Support

Description

• Operating voltage: DC 4V – 60V
• Trigger source: high level trigger (DC3.0V – 24V), low level trigger (DC 0.0V ~ 0.6V), switch control, can connect MCU IO port, PLC interface, DC power supply, etc. PWM signal, support signal frequency range of 0 – 2.5KHZ
• Output capacity: DC 4V – 60V, continuous current 10A at room temperature, power 600W! Auxiliary cooling conditions, the current up to 15A
• Life: unlimited switch
• Working temperature: -40-85 °

Note:

1. Only one signal can control the module at the same time, and two or more signals cannot be used to control the module at the same time.
2. High level trigger voltage range: DC3.0V~24V, that is, MOS tube conduction when the signal is 3.0V~24V, lower than 0.6V, that is, 0V~0.6V. MOS tube is turned off, and signal voltage must not be between 0.6V~3.0V.
3. Low level trigger voltage range: DC 0V~0.6V, that is, when the signal voltage is 0V~0.6V, the MOS tube is on, higher than 3.0V, the MOS tube is off, the signal voltage must not be between 0.6V~3.0V, in that case, MOS is not fully open, high-power MOS will be burned.

Application:

The output end can control high-power equipment, motor, bulb, LED belt, DC motor, micro pump, solenoid valve, etc., can input PWM, control motor speed, lamp brightness, etc.
