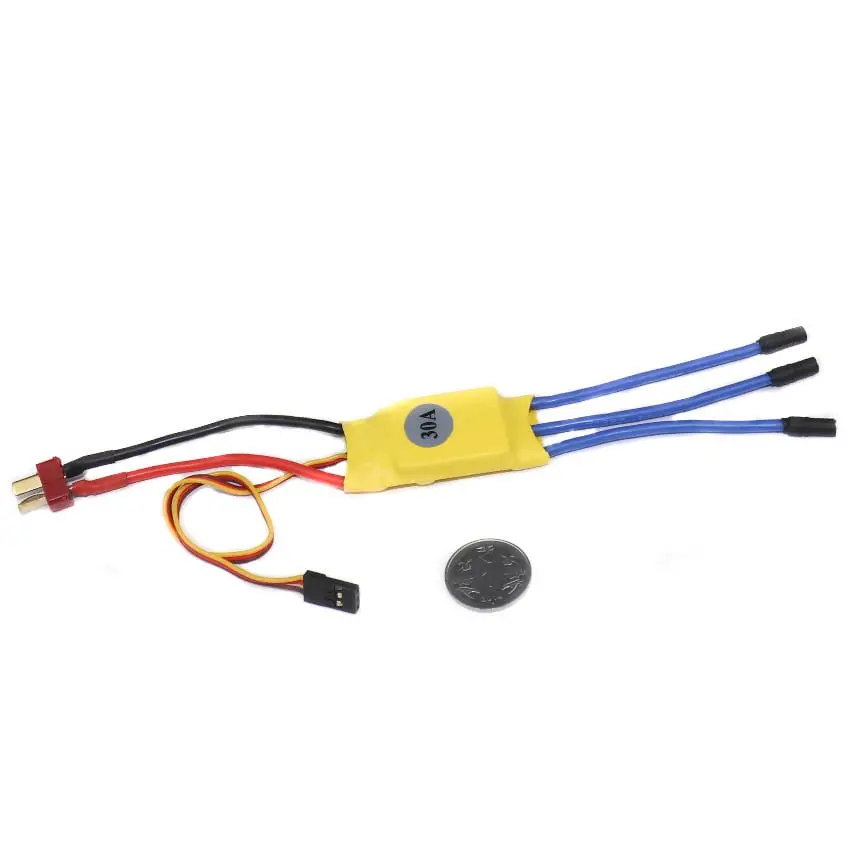

30A Brushless ESC (Electronic Speed Controller) with Standard Connectors

Description

1. Constant Current: 30A (Max 40A<10s).
2. BEC: 5V 3A.
3. Input Voltage: 11.1 ~ 11.7 V.
4. Li-Po battery: 2S ~ 3S.
5. Ni-MH 4-10 CELLS Auto Detect.

Standard BLDC 30 amp ESC Electronic Speed Controller with Connector is specifically made for quadcopters and multi-rotors. It provides faster and better motor speed control giving better flight performance compared to other available ESCs.

STANDARD 30 amp ESC Electronic Speed Controller can drive motors that consume up to 30A current. It works on 2-3S LiPo batteries. The onboard BEC provides regulated 5V(2A max draw) to power the flight controller and other onboard modules.

This particular ESC is recommended with an A2212 brushless motor (1000kv, 1400kv, 2200kv).

ESC CONNECTORS:

• Battery Side – Male Deans ( T ) Connector.
• Motor Side – Female 3.5mm Gold Connector.

Features:

1. This 30 amp ESC for BLDC has onboard BEC
2. This ESC comes with a male dean T-connector
3. Auto Low BATTERY Slow down at 3.0V/cell Lipo, cut-off at 2.9V/cell lipo
4. APPLICATION: Multirotors, Rc Airplanes, etc

Package Includes:

1 x Standard 30A BLDC ESC Electronic Speed Controller with Connectors
