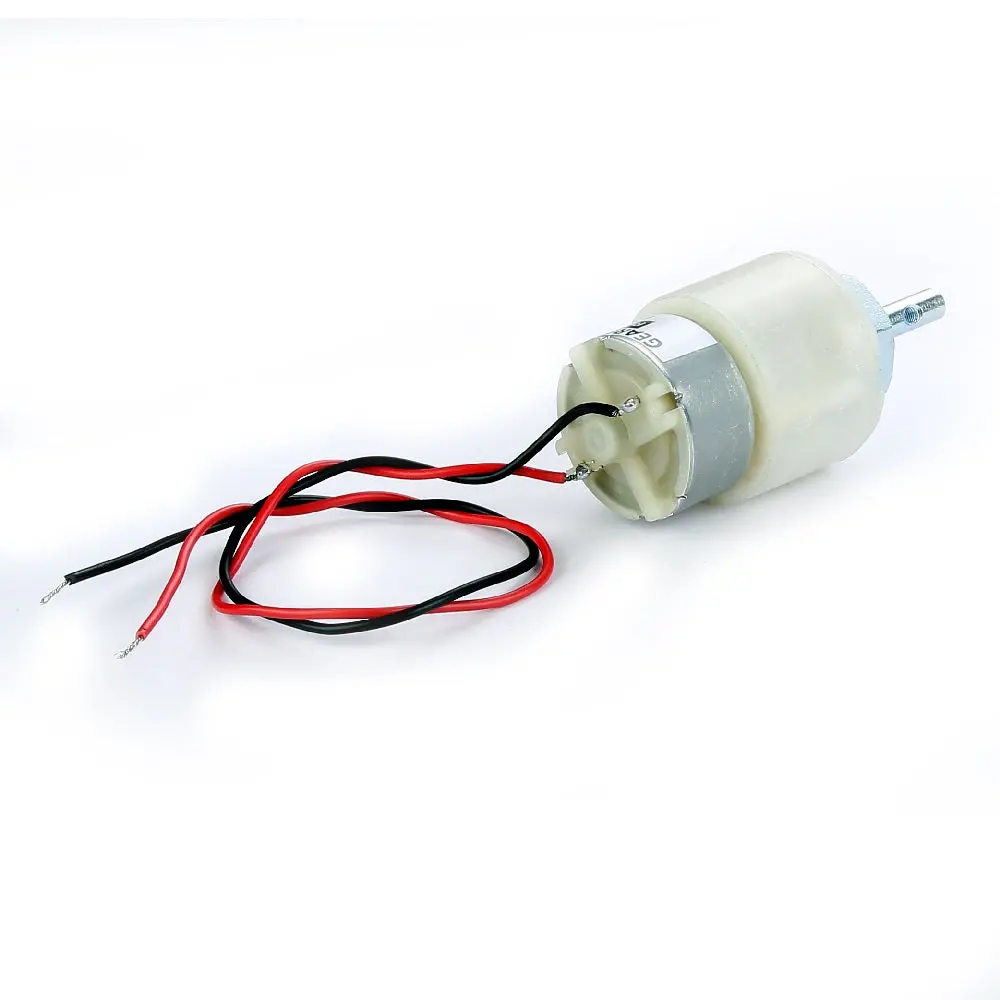

300 RPM Center-Shaft 12V DC Gear Motor – Compact Low-Speed Drive Solution

Description

• Operating Voltage(V): 12
• Rated Speed (RPM): 300
• Rated Torque(kg-cm): 1.5
• Stall Torque(kg-cm): 5.4
• Load Current (A): 0.3
• No Load Current (A): 0.06

A geared DC Motor has a gear assembly attached to the motor. The speed of the motor is counted in terms of rotations of the shaft per minute and is termed as RPM. The gear assembly helps in increasing the torque and reducing the speed. Using the correct combination of gears in a gear motor, its speed can be reduced to any desirable figure.  This concept where gears reduce the speed of the vehicle but increase its torque is known as gear reduction. This Insight will explore all the minor and major details that make the gear head and hence the working of geared DC motor.
