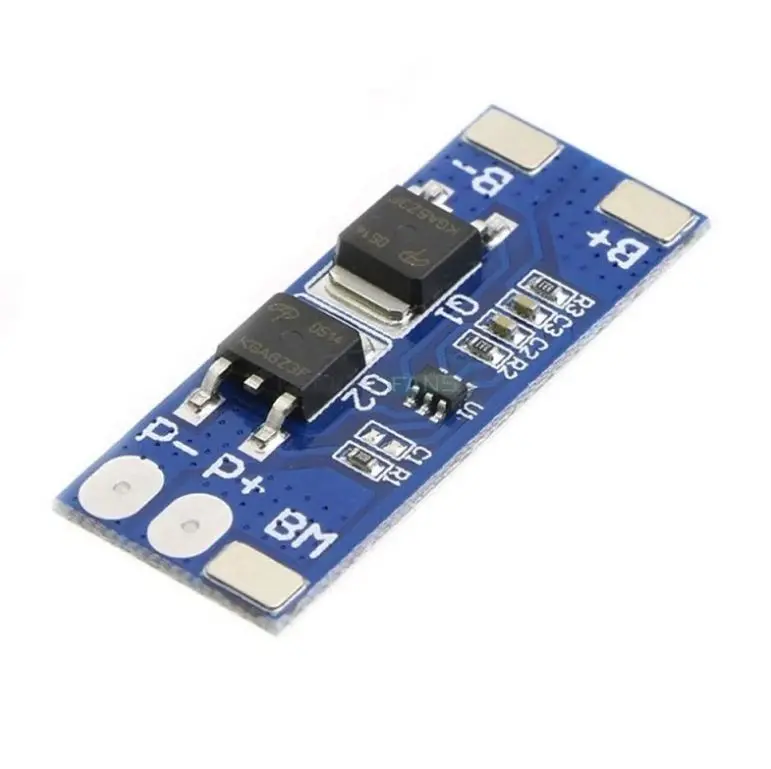

2S 10A BMS Protection Board for 7.4V–8.4V 18650 Lithium Batteries

Description

• Upper working current: 10A
• Operating temperature: – 40 – 50°C
• Upper limit instantaneous current: 15A
• Storage conditions: -40 – 80°C
• Quiescent current: less than 10uA
• Effective life: more than 50,000 hours
• Internal resistance: less than 300mΩ
• Charging voltage: 8.4V-9V

Pin Descriptions:

B+ B-: The interface of battery core
P+ P-: The connector of the battery board
MB: The connection point between the batteries
B+: Battery V+ Positive
B-: Battery V- Negative
P+: Output / Charging V+
P-: Output / Charging V-

2S 10A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module is a small PCB mounted Li-ion Lithium Battery charger protection module. This small and smart battery charger protection module comes with various features like Short circuit protection, Overcharge protection, Over-discharge protection, Overcurrent protection. It is very easy to install and convenient to use in all your DIY portable projects.
