28BYJ-48 Stepper Motor – 12V DC Unipolar Geared Motor for Robotics and Automation Projects

Description

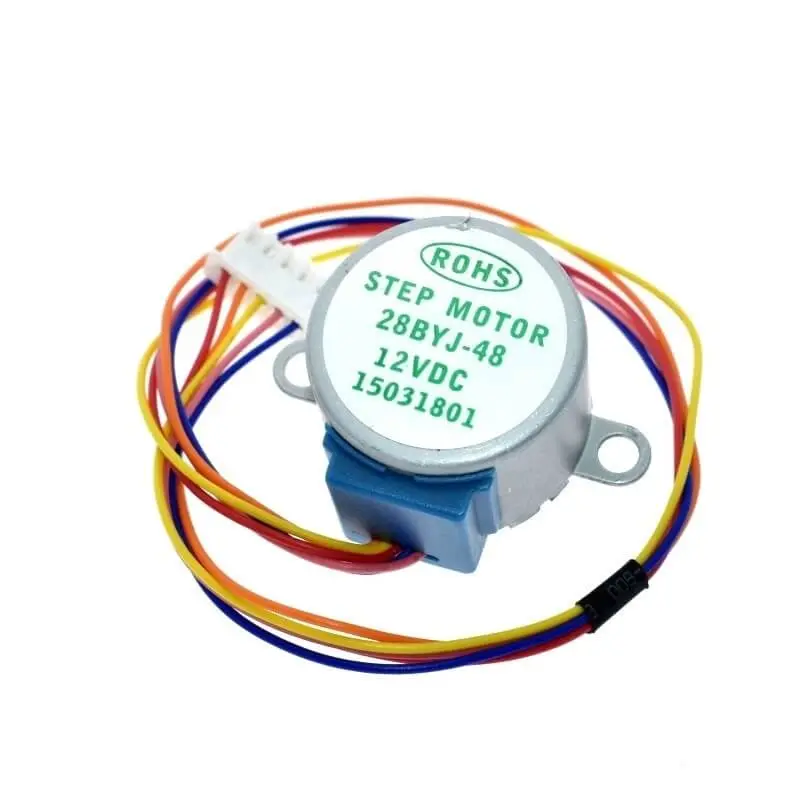

28BYJ-48 -12V DC Stepper Motor

This 12V DC 28BYJ-48 Stepper Motor is a small, inexpensive, and high-quality geared step motor. The 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a widely popular combination of the stepper motor and stepper driver, because of the stability and reliability of the system. Thia 28BYJ-28 stepper motor is imported from one of our trusted suppliers and the supplier has guaranteed the quality of these compact stepper motors.

Note: The system is recommended to run on Half-step mode(8 step control signal sequence) for an excellent performance experience.
A (Blue), B (Pink), C (Yellow), D (Orange), E (Red, Mid-Point)

Features/Specs:

• Model: 28BYJ-48
• Rated Voltage: 12V
• Rated Current: 300mA
• Step Angle: 5.625°/64
• Reduction ratio: 64:1
• Resistance: 50Ω
• In-Traction Frequency: >600Hz
• Out-Traction Frequency: >1000Hz
• In-traction Torque: 34.3mN-m
• Self-positioning Torque: 34.3mN-m
• Friction Torque: 600-1200gf-cm
• Pull-in Torque: 300gf-cm
• Insulation Grade: A
• Shaft Type: Double D-Type
• Motor Weight: 45gm

Package Includes :

• 1 x 28BYJ-48 -12V DC Stepper Motor

Note: Product Images are shown for illustrative purposes only and may differ from the actual product
